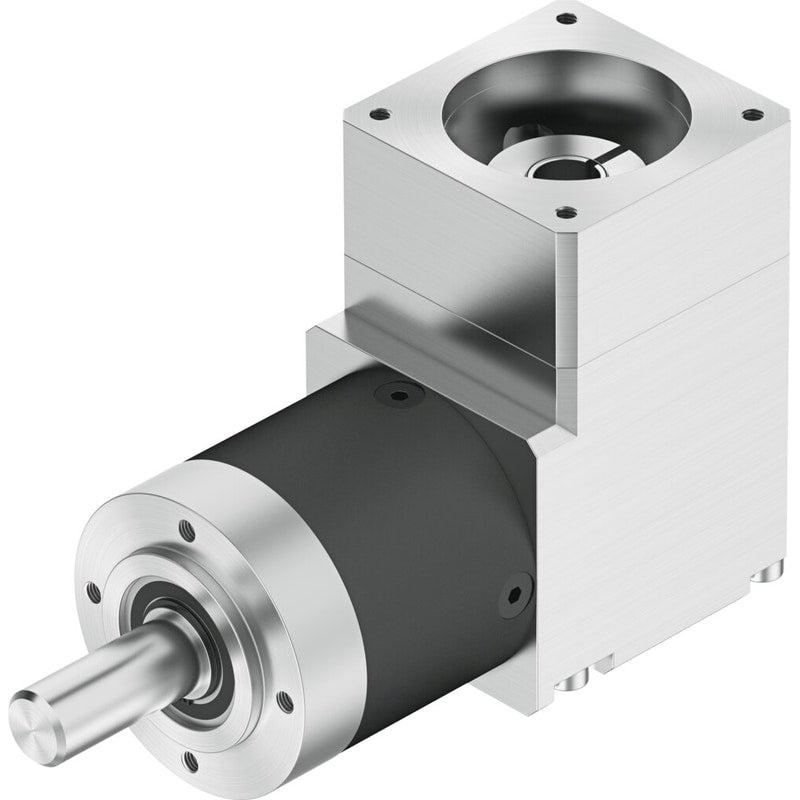

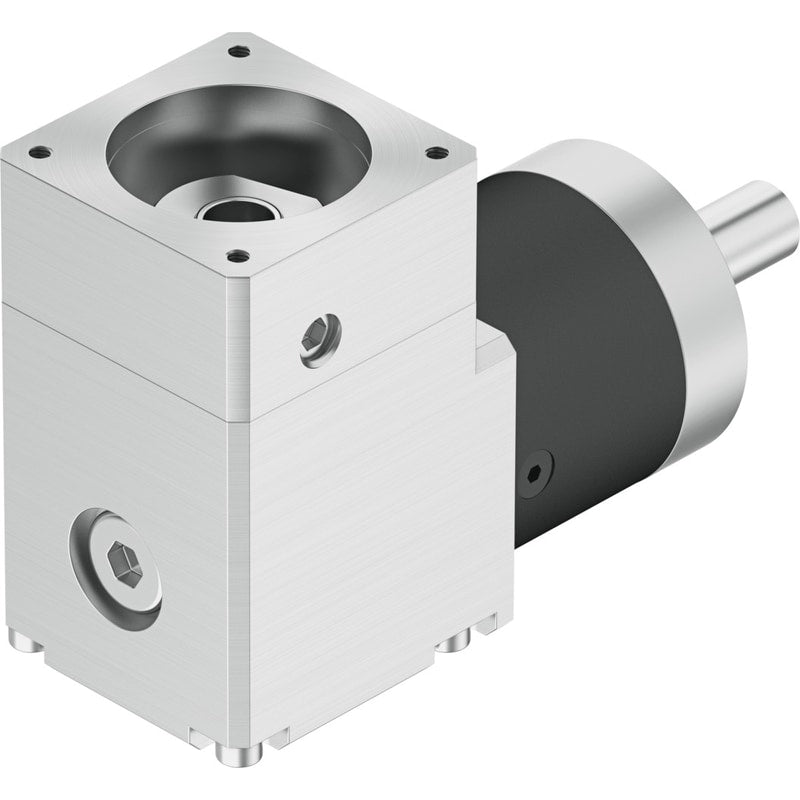

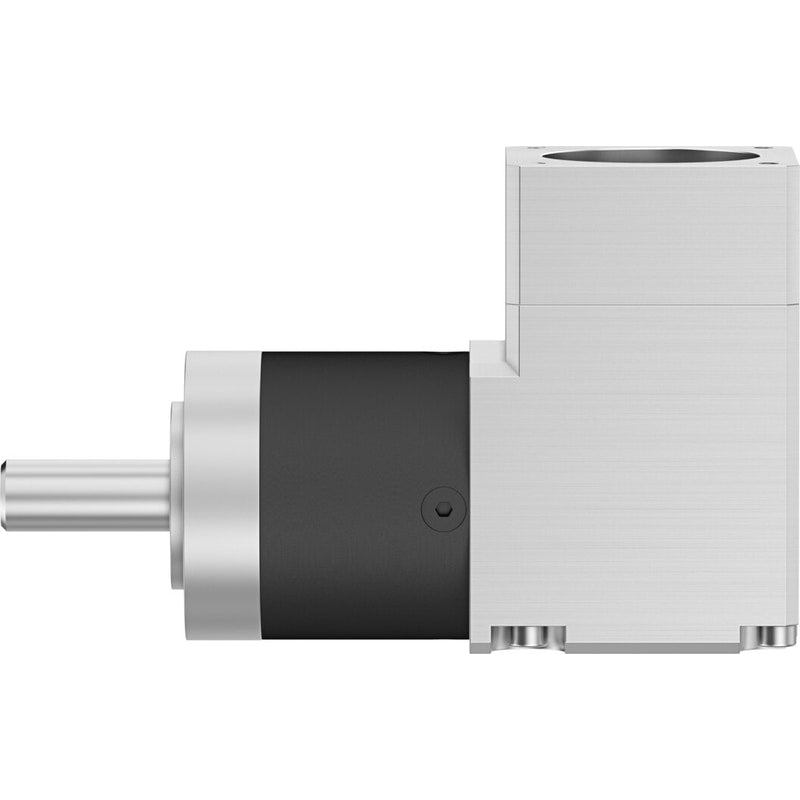

Gearbox
EMGA-40-A-G3-40P
8085342
GTIN 4052568450878
Vendor Festo
- Continuous output torque
- 4.5 Nm
- Max. actuator speed
- 18000 1/min
- Torsional rigidity
- 0.8 Nm/arcmin
- Gear ratio
- 3:1
- Gearbox type
- Angular gear
Regular price
$1,029.15
Unit price
EMGA-40-A-G3-40P is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
EMGA-40-A-G3-40P
Regular price
$1,029.15
Unit price
EMGA-40-A-G3-40P is backordered and will ship as soon as it is back in stock.
| Gearbox flange size | 40 mm |
|---|---|
| Motor flange size | 40 mm |
| Torsional backlash | 0.35 deg |
| Type code | EMGA |
| Gearbox type | Angular gear |
| Gear ratio | 0.125694444444444 |
| Max. actuator speed | 18000 1/min |
| Gearbox operating temperature | -25 °C ... 90 °C |
| Degree of protection | IP54 |
| Continuous output torque | 4.5 Nm |
| Mass moment of inertia, gearbox | 0.049 kgcm² |
| Max. output torque | 7 Nm |
| Max. efficiency | 0.95 |
| Torsional rigidity | 0.8 Nm/arcmin |
| Product weight | 500 g |
| Gearbox interface, output shaft | 40G |
| Gearbox interface, actuator | 40P |
| Note on materials | RoHS-compliant |
