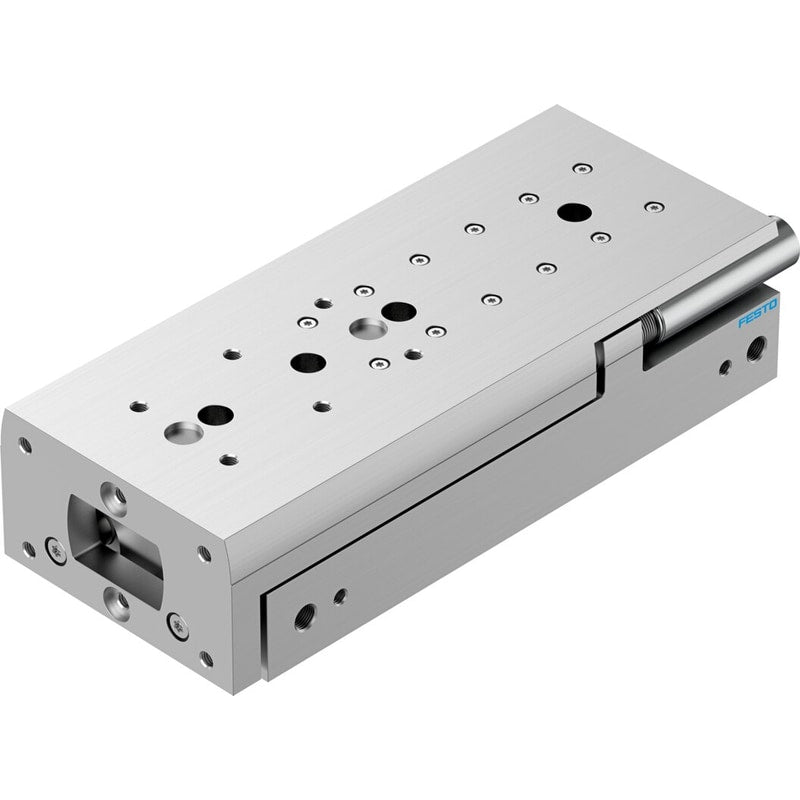

Mini slide
DGST-25-125-Y12A
8085196
GTIN 4052568450847
Vendor Festo
- Piston diameter
- 25 mm
- Theoretical force at 6 bar, advancing
- 589 N
- Stroke
- 125 mm
- Cushioning
- External hydraulic cushioning
- Position sensing
- For proximity sensor
Regular price
$992.07
Unit price
Mini slide DGST-25-125-Y12A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DGST-25-125-Y12A
Regular price
$992.07
Unit price
Mini slide DGST-25-125-Y12A is backordered and will ship as soon as it is back in stock.
mini slide DGST-25-125-Y12A Part number: 8085196
| Stroke | 125 mm |
|---|---|
| Adjustable endposition range/front length | 31 mm |
| Adjustable endposition range/rear length | 31 mm |
| Piston diameter | 25 mm |
| Operating mode of drive unit | Yoke |
| Cushioning | Y12: external hydraulic cushioning |
| Assembly position | Any |
| Guide | Ball bearing cage guide |
| Design structure | Yoke kinematics |
| Position detection | For proximity sensor |
| Operating pressure | 1 ... 8 bar |
| Max. speed | 0.8 m/s |
| Repetition accuracy | <= 0,02 mm |
