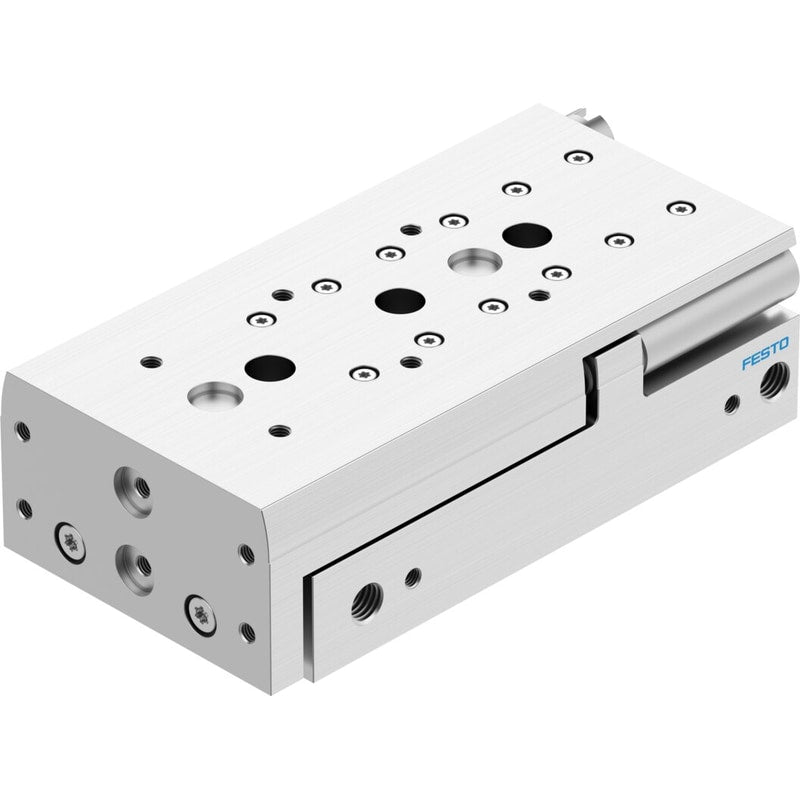

Mini slide
DGST-20-80-PA
8085144
GTIN 4052568450328
Vendor Festo
- Piston diameter
- 20 mm
- Theoretical force at 6 bar, advancing
- 377 N
- Stroke
- 80 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
- Position sensing
- For proximity sensor
Regular price
$664.25
Unit price
Mini slide DGST-20-80-PA is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DGST-20-80-PA
Regular price
$664.25
Unit price
Mini slide DGST-20-80-PA is backordered and will ship as soon as it is back in stock.
mini slide DGST-20-80-PA Part number: 8085144
| Stroke | 80 mm |
|---|---|
| Adjustable endposition range/front length | 32 mm |
| Adjustable endposition range/rear length | 31.5 mm |
| Piston diameter | 20 mm |
| Operating mode of drive unit | Yoke |
| Cushioning | P: Flexible cushioning rings/plates at both ends |
| Assembly position | Any |
| Guide | Ball bearing cage guide |
| Design structure | Yoke kinematics |
| Position detection | For proximity sensor |
| Operating pressure | 1 ... 8 bar |
| Max. speed | 0.8 m/s |
| Repetition accuracy | <= 0,3 mm |
