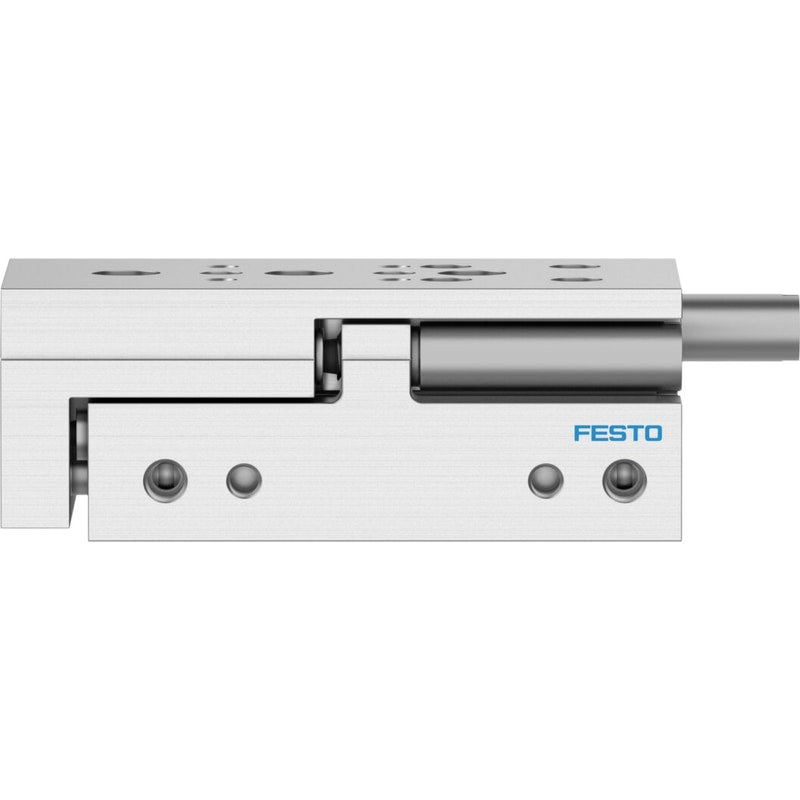

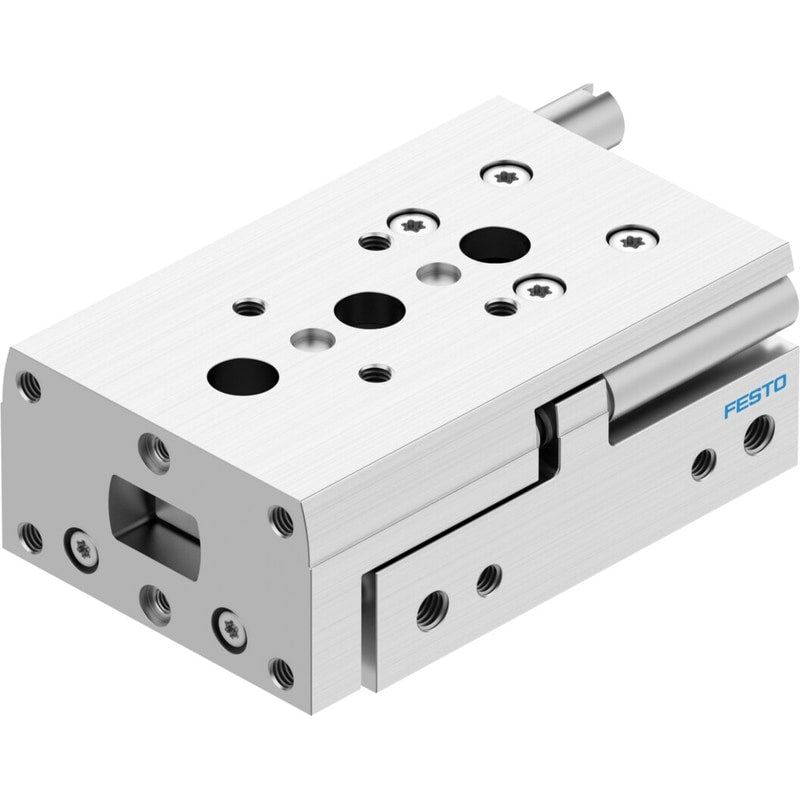

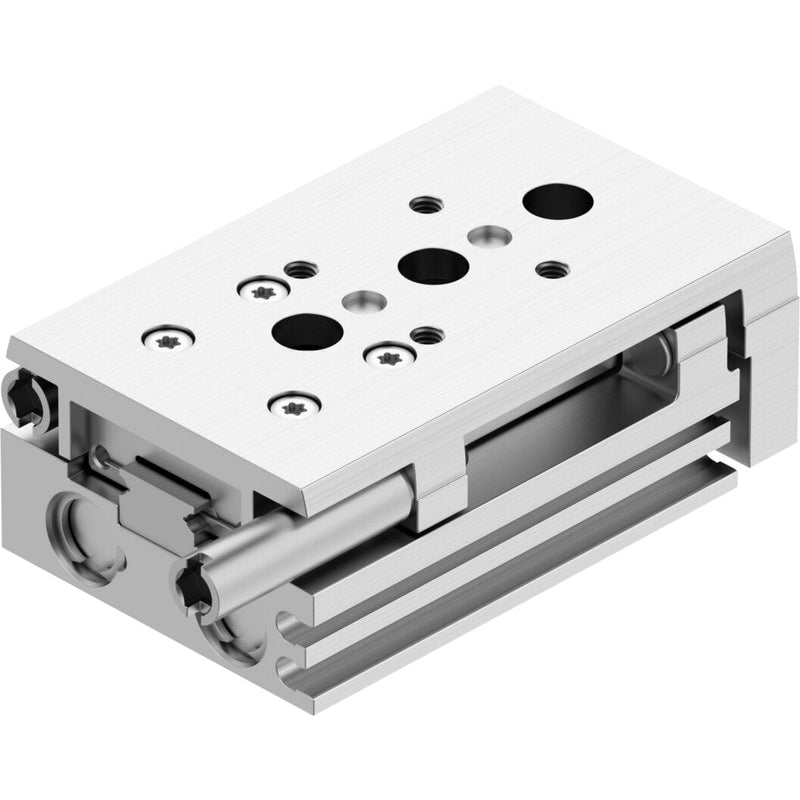

Mini slide
DGST-10-30-PA
8085118
GTIN 4052568450069
Vendor Festo
- Piston diameter
- 10 mm
- Theoretical force at 6 bar, advancing
- 94 N
- Stroke
- 30 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
- Position sensing
- For proximity sensor
Regular price
$396.52
Unit price
DGST-10-30-PA is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DGST-10-30-PA
Regular price
$396.52
Unit price
DGST-10-30-PA is backordered and will ship as soon as it is back in stock.
| Guide material | POMHigh-alloy steelTPE-E |
|---|---|
| Stroke | 30 mm |
| Adjustable end-position range/front length | 15.6 mm |
| Adjustable end-position range/rear length | 15.8 mm |
| Piston diameter | 10 mm |
| Type code | DGST |
| Drive unit operating mode | Yoke |
| Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any |
| Guide | Recirculating ball bearing guide |
| Design | Scotch yoke system |
| Position sensing | For proximity sensor |
| Symbol | 991249 |
| Operating pressure | 1 bar ... 8 bar |
| Max. speed | 0.8 m/s |
| Repetition accuracy | <= 0.3 mm |
| Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Ambient temperature | -10 °C ... 60 °C |
| Impact energy in the end positions | 0.08 J |
| Cushioning length | 1.5 mm |
| Max. force Fz | 490 N |
| Max. torque Mx | 3.5 Nm |
| Max. torque My | 3 Nm |
| Max. torque Mz | 3 Nm |
| Theoretical force at 6 bar, retracting | 79 N |
| Theoretical force at 6 bar, advancing | 94 N |
| Moving mass | 157.7 g |
| Product weight | 315.4 g |
| Type of mounting | With through-hole |
| Pneumatic connection | M5 |
| Note on materials | Free of copper and PTFERoHS-compliant |
| Cover material | Wrought aluminum alloy |
| Seals material | HNBR |
| Housing material | Wrought aluminum alloy |
| Piston rod material | High-alloy stainless steel |
