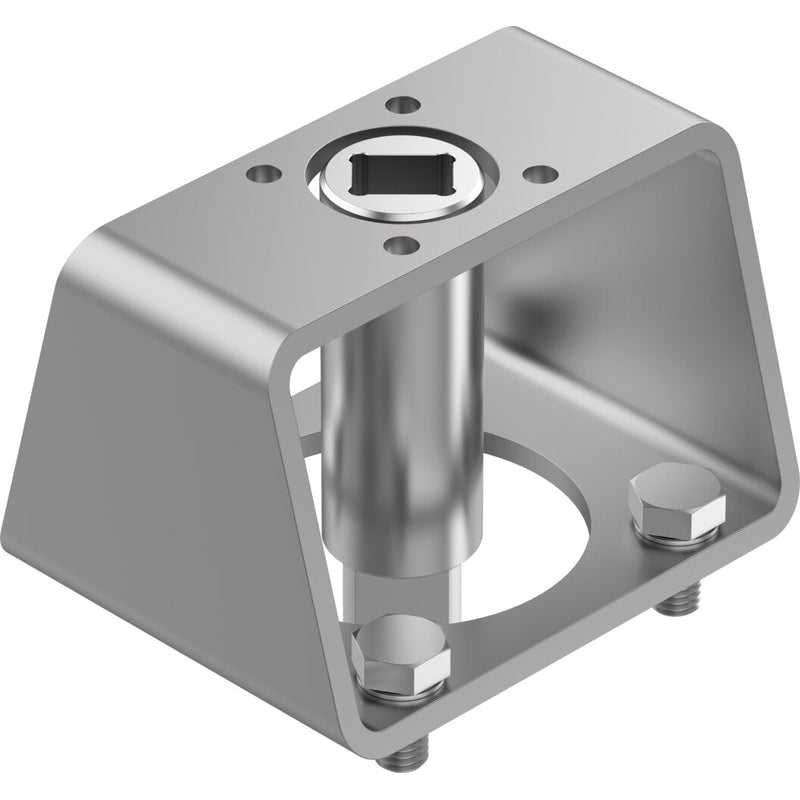

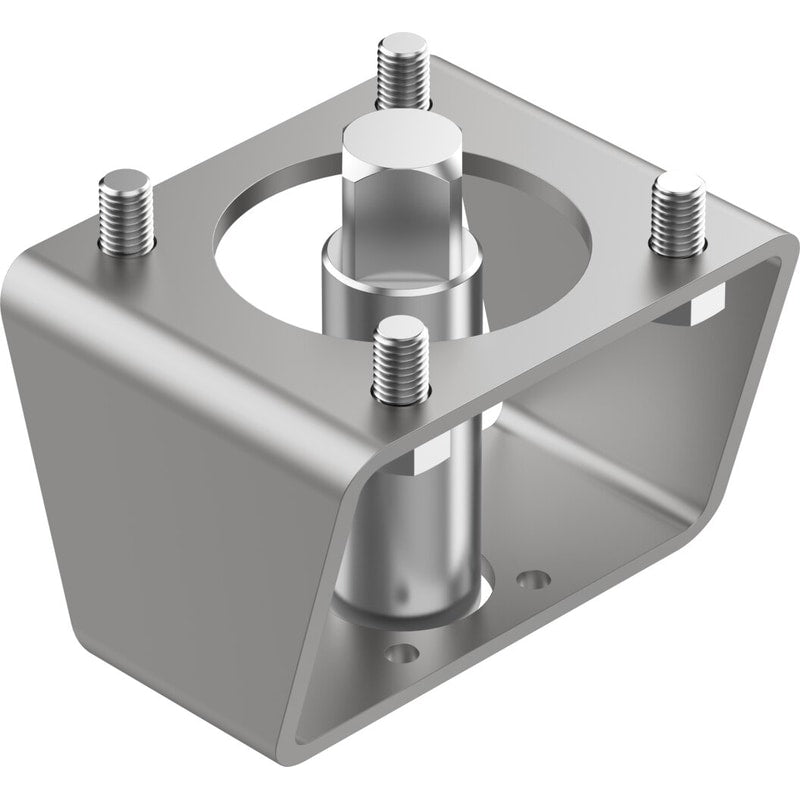

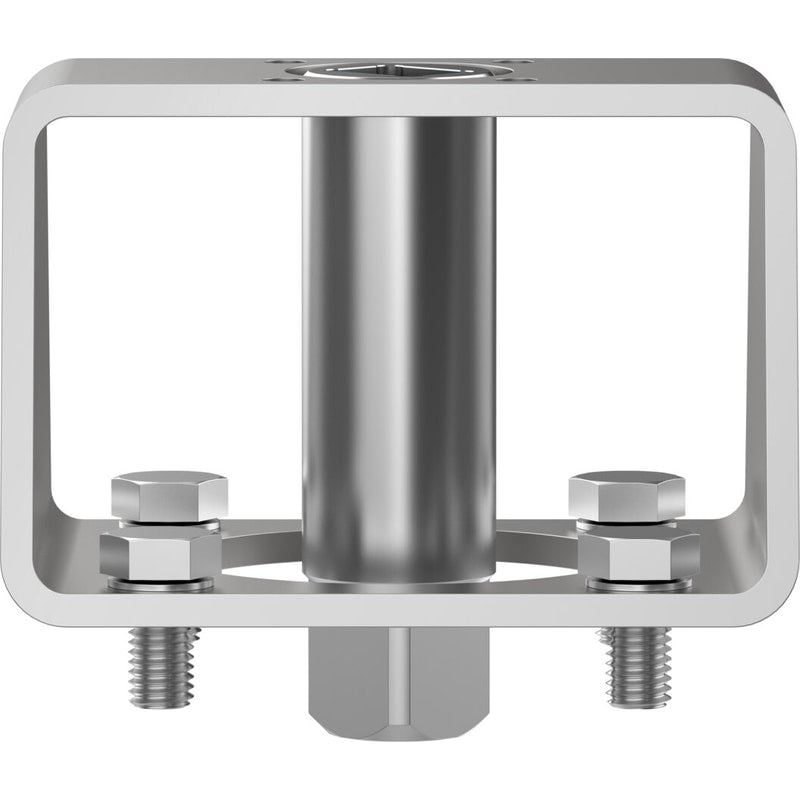

Mounting kit
DARQ-K-Z-F10S22-F07S17-R13
8085027
GTIN 4052568449926
Vendor Festo
Regular price
$252.09
Unit price
DARQ-K-Z-F10S22-F07S17-R13 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DARQ-K-Z-F10S22-F07S17-R13
Regular price
$252.09
Unit price
DARQ-K-Z-F10S22-F07S17-R13 is backordered and will ship as soon as it is back in stock.
| Connection 1, function | Actuator outlet |
|---|---|
| Connection 1, design | SW22Hole pattern 10 |
| Connection 2, design | SW17Hole pattern 07 |
| Connection 2, function | Reducing outlet |
| Pack size | 1 |
| Type code | DARQ |
| Based on norm | EN 15081ISO 5211 |
| Design | Two-flats and external squareMounting kit |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Product weight | 1970 g |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Quick-coupling material | High-alloy stainless steel |
| Mounting adapter material | Steel |
| Disc material | High-alloy stainless steel |
| Material of screws | High-alloy stainless steel |
