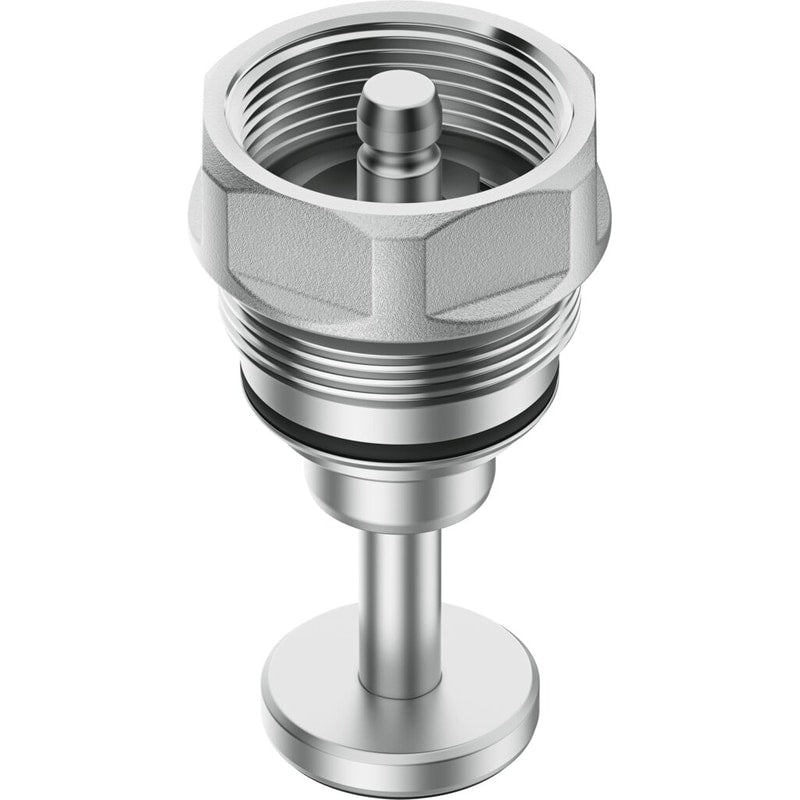

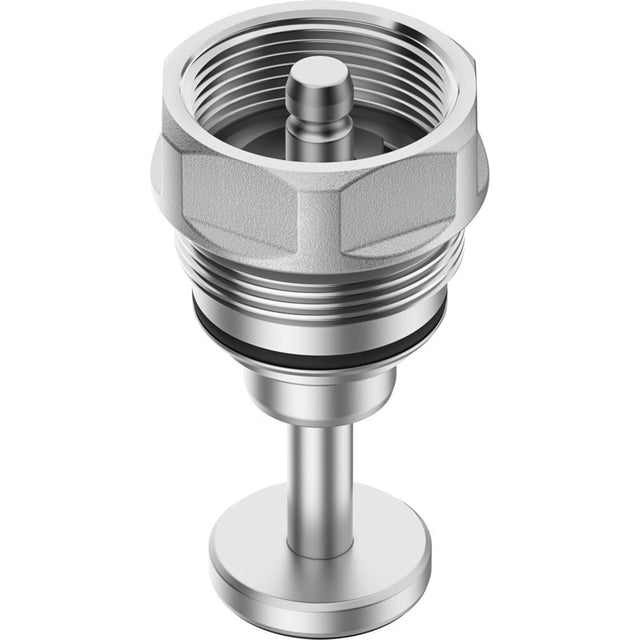

Cover kit
VAVC-F12-SCC-32-TP
8084034
GTIN 4052568457839
Vendor Festo
Regular price
$306.25
Unit price
VAVC-F12-SCC-32-TP is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VAVC-F12-SCC-32-TP
Regular price
$306.25
Unit price
VAVC-F12-SCC-32-TP is backordered and will ship as soon as it is back in stock.
| Nominal width DN | 32 |
|---|---|
| Seat seal material | PTFE, modified |
| Spindle seal material | PTFE |
| Cover material | High-alloy stainless steel |
| Medium | VaporHydraulic fluid based on mineral oilInert gasMineral oilWaterFiltered compressed air, 200 µm filter meshNeutral liquids |
| Information on medium | Gaseous media are only permitted with inflow via valve seat. |
| Temperature of medium | -30 °C ... 200 °C |
| Type code | VAVC |
| Mounting position | Any |
| Explosion prevention and protection | Zone 1 (ATEX)Zone 2 (ATEX)Zone 21 (ATEX)Zone 22 (ATEX) |
| Storage temperature | -10 °C ... 60 °C |
| Ambient temperature | 0 °C ... 60 °C |
| Product weight | 424 g |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
