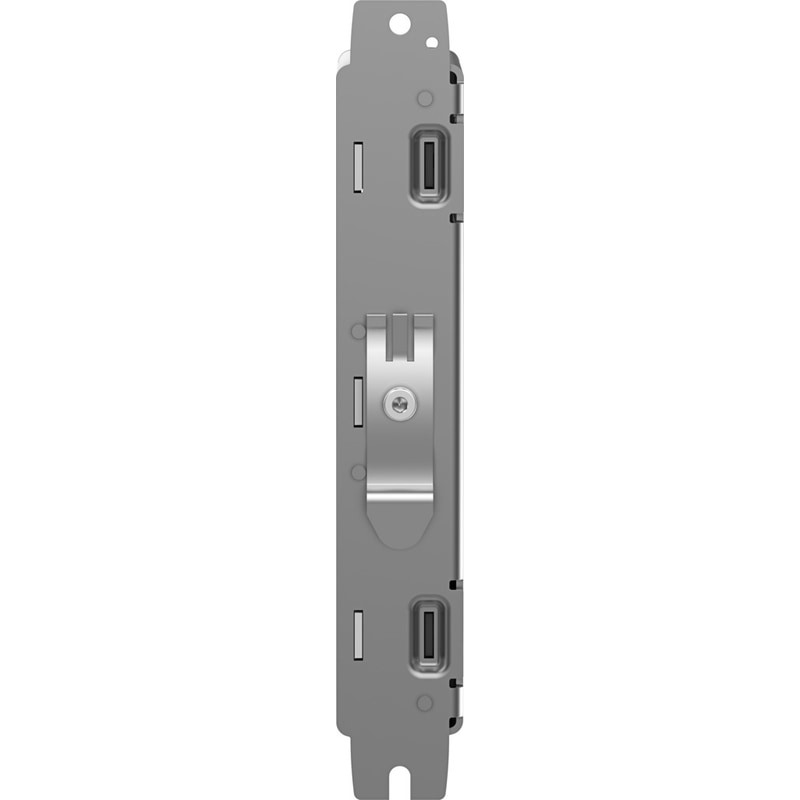

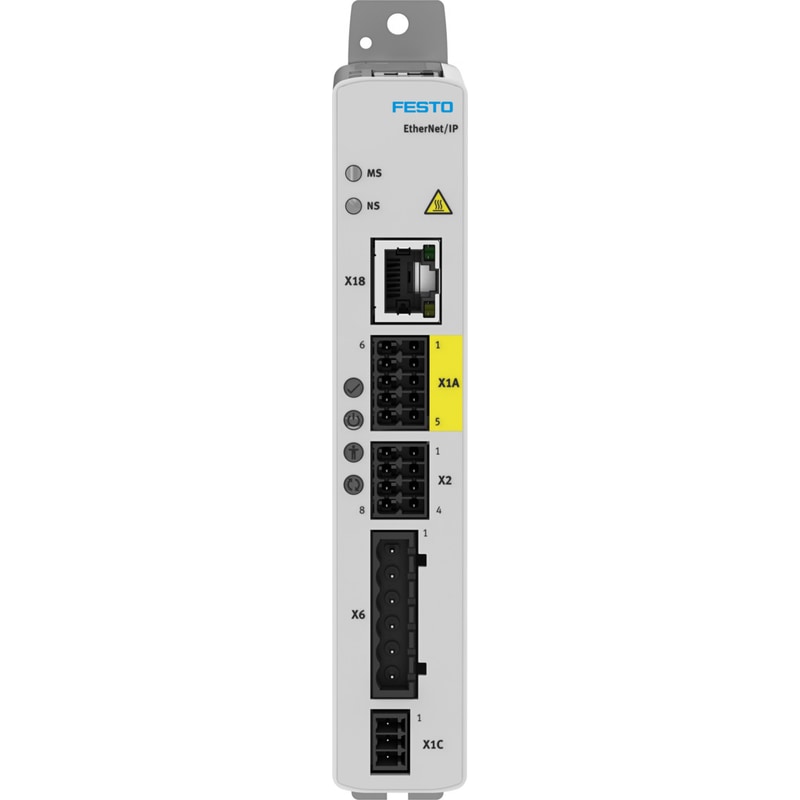

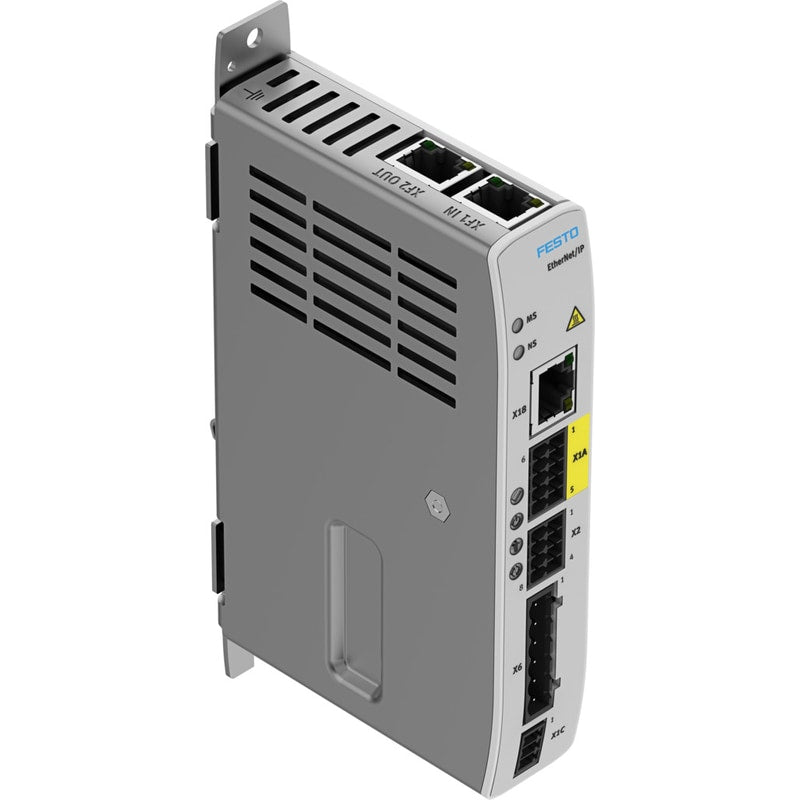

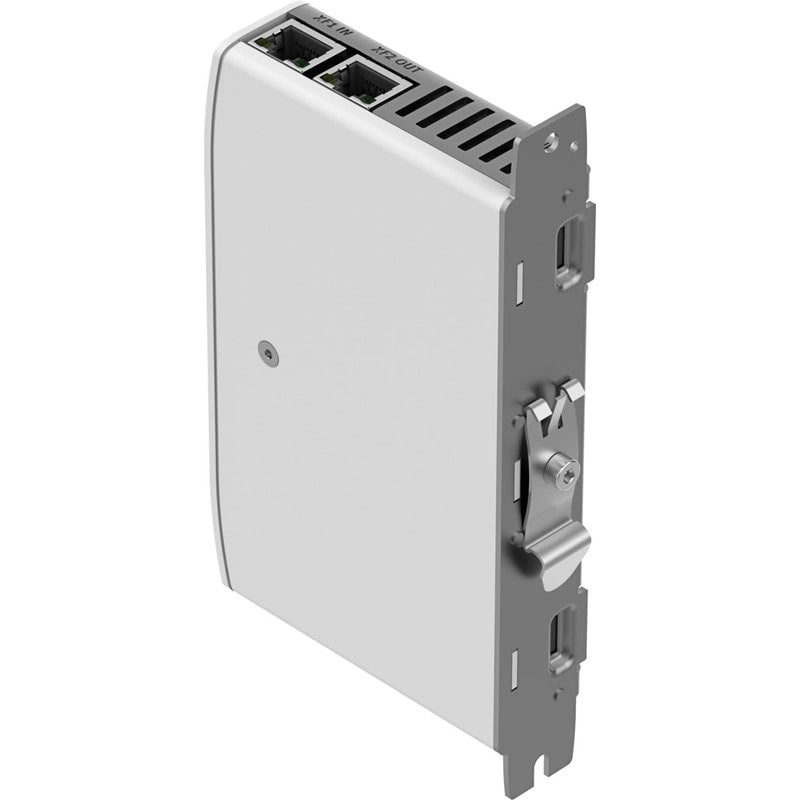

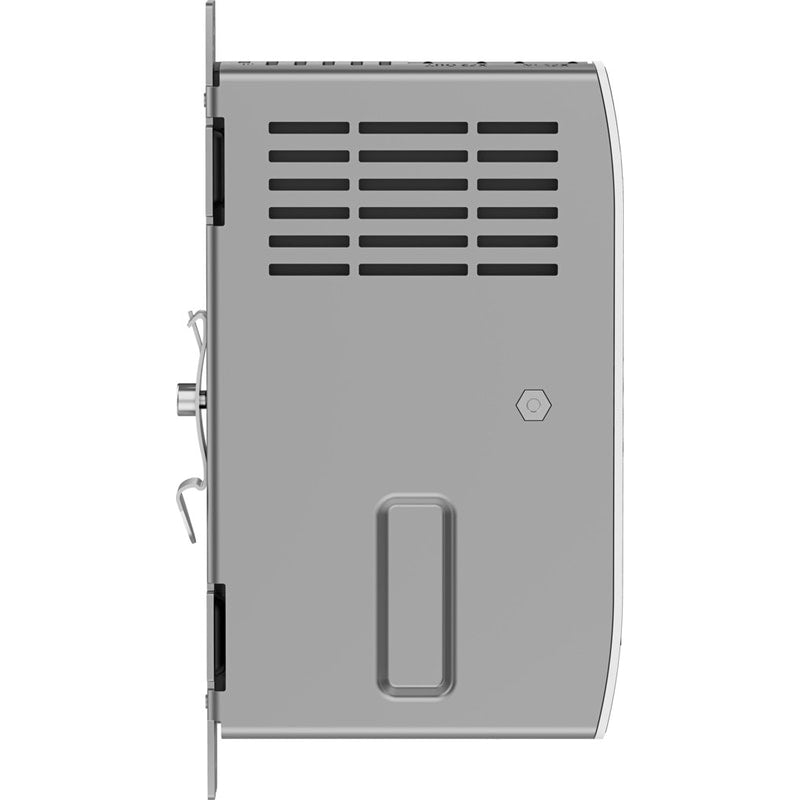

Servo drive
CMMT-ST-C8-1C-EP-S0
8084006
GTIN 4052568459475
Vendor Festo
Regular price
$700.28
Unit price
CMMT-ST-C8-1C-EP-S0 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CMMT-ST-C8-1C-EP-S0
Regular price
$700.28
Unit price
CMMT-ST-C8-1C-EP-S0 is backordered and will ship as soon as it is back in stock.
| Type code | CMMT-ST |
|---|---|
| Fieldbus interface, function | Bus connection, incoming/forwardingEtherNet/IP slave |
| KC characters | KC EMC |
| Fieldbus interface, transmission rate | 100 Mbit/s |
| Mounting position | Free convectionVertical |
| Ethernet interface, protocol | TCP/IP |
| Ethernet interface, function | Parameterization and commissioning |
| Encoder interface, function | BiSS-CIncremental encoder |
| Fieldbus interface, connection technology | RJ45 |
| Protection class | III |
| Proof test interval | STO / 20 a (stepper motor/EC-motor without diagnostics) |
| Fieldbus interface, protocol | EtherNet/IP |
| Overvoltage category | I |
| Fieldbus interface, connection type | 2x socket |
| Number of high-speed switching outputs | 2 |
| Number of floating switching outputs | 1 |
| Number of diagnostic outputs | 1 |
| Max. current of the floating switching outputs | 100 mA |
| Max. output current of holding brake | 1 A |
| Number of high-speed logic inputs | 2 |
| Max. voltage drop from logic supply to brake output | 1 V |
| Number of safe 2-pin inputs | 1 |
| Time resolution of high-speed logic inputs | 1 µs |
| Max. current consumption for logic supply with parking brake | 2 A |
| Max. installation height | 2000 m |
| Time resolution of high-speed switching outputs | 1 µs |
| Diagnostic coverage | STO: 87% (EC motor without diagnostics)STO / 90% (stepper motor)STO: 92% (EC motor with diagnostics) |
| Controller operating mode | Cascade controlP position controllerPI speed controllerPI current regulator for F or MProfile operation with block mode and direct modeInterpolating mode via fieldbusSynchronous operating modesReference travelSetup modeAutotuningOpen-loop operation |
| Mode of operation | Field-oriented regulationPosition resolution 24 bit/rev.Sampling rate 20 kHzPulse-width modulation with 20 kHzReal-time data acquisition2x input capture (x, v, F)2x output trigger (x, v, F)1x position sensor input |
| Adjustable current reduction | Via software |
| Protective function | I²t monitoringTemperature monitoringCurrent monitoringVoltage failure detectionContouring error monitoringSoftware end position detection |
| Safety function | Safe torque off (STO)Safe stop 1 with time control (SS1-t) |
| Safety integrity level (SIL) | STO / SIL 2 / SILCL 2 (EC motor without diagnostics)STO / SIL 3 / SILCL 3 (stepper motor/EC motor with diagnostics) |
| Performance Level (PL) | STO: cat. 3 PLd (EC motor without diagnostics)STO/cat. 3, PLe (stepper motor/EC motor with diagnostics) |
| Display | LED green/yellow/red |
| Nominal current setting | Via software |
| Output frequency | 0 Hz ... 20000 Hz |
| Output voltage range AC | 0 V up to input voltage |
| Characteristics of digital logic outputs | ConfigurableNot galvanically isolated |
| Hardware fault tolerance | 1 |
| Max. current of digital logic outputs | 100 mA |
| Max. length of motor cable without ext. mains filter | 25 m |
| Max. peak current duration | 3 s |
| Max. DC link voltage | 60 V |
| Nominal output current | 8 A |
| Controller nominal power | 300 VA |
| Nominal voltage, logic supply DC | 24 V |
| Nominal voltage, load supply DC | 24 V ... 48 V |
| Nominal current per phase, effective | 8 A |
| Peak power | 400 VA |
| Peak current per phase, effective | 10 A |
| Max. current consumption for logic supply without clamping brake | 1 A |
| Contamination level | 2 |
| Load supply permissible range | -15% / +15% |
| Permissible range of logic voltage | ± 15 % |
| Certificate issuing authority | German Technical Control Board (TÜV) Rheinland 01/205/5696.00/19UL E331130 |
| CE marking (see declaration of conformity) | As per EU EMC directiveas per EU machinery directiveAs per EU RoHS directive |
| Storage temperature | -25 °C ... 55 °C |
| Relative air humidity | 5 - 90 %Non-condensing |
| Degree of protection | IP20 |
| Ambient temperature | 0 °C ... 50 °C |
| Note on ambient temperature | Observe derating with regard to assembly distance and output current. |
| Certification | RCM compliance markc UL us - Listed (OL) |
| Product weight | 350 g |
| Number of digital logic outputs 24 V DC | 2 |
| Number of digital logic inputs | 6 |
| Communication profile | DriveProfile |
| Process interfacing | Adjustable-Speed DrivesDrives with positioning function |
| Logic input specification | Based on IEC 61131-2, type 3 |
| Work range of logic input | -3 V ... 30 V |
| Characteristics of logic input | Freely configurable in some casesSafety inputs in some casesNot galvanically isolated |
| Input switching logic | NPN (negative switching)PNP (positive switching) |
| Switching logic at outputs | NPN (negative switching)PNP (positive switching) |
| Type of mounting | Mounting plate, screwed onWith H-rail |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
