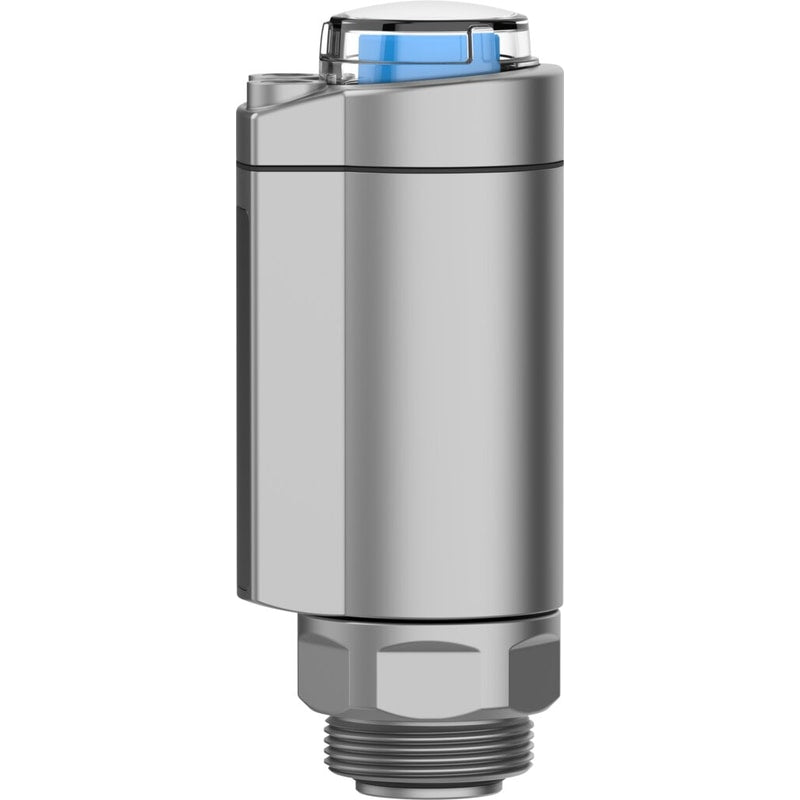

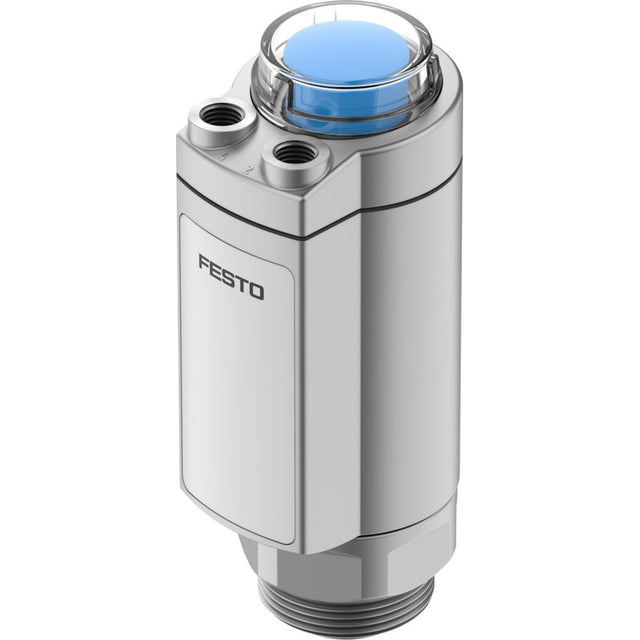

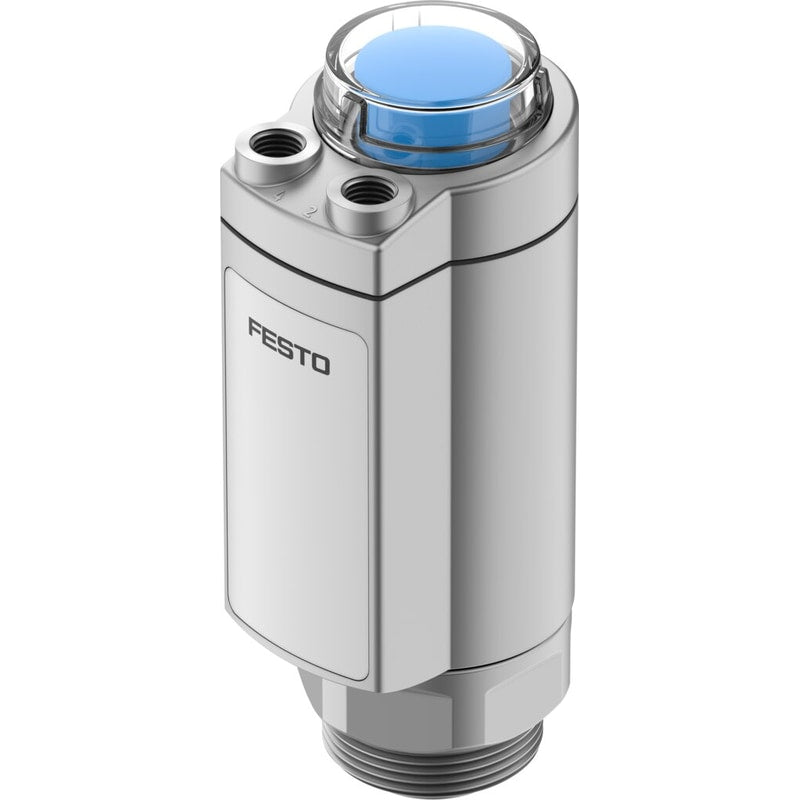

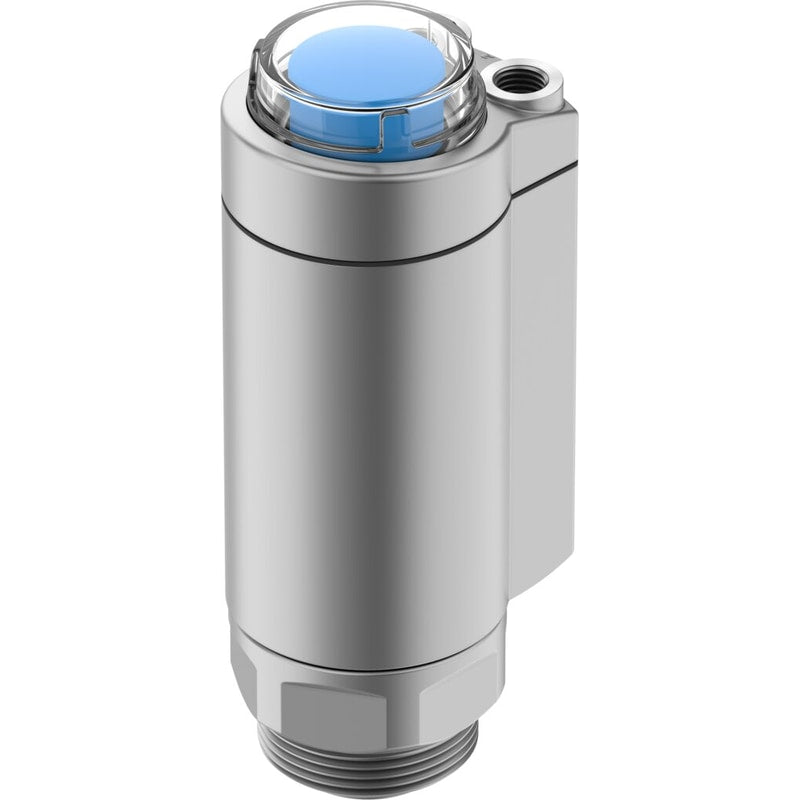

Piston actuator
DFPK-46-17-S-V4
8083961
GTIN 4052568457761
Vendor Festo
- Size of valve actuator
- 46
- Stroke
- 17 mm
- Pneumatic connection
- Internal thread G1/8
- Position sensing
- With mechanical indicator
Regular price
$492.65
Unit price
DFPK-46-17-S-V4 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DFPK-46-17-S-V4
Regular price
$492.65
Unit price
DFPK-46-17-S-V4 is backordered and will ship as soon as it is back in stock.
| Size of valve actuator | 46 |
|---|---|
| Control function | Opened by spring force, N/O |
| Operating pressure | 0.5 MPa ... 1 MPa |
| Operating pressure | 72.5 psi ... 145 psi |
| Stroke | 17 mm |
| Type code | DFPK |
| Mounting position | Any |
| Position sensing | With mechanical indicator |
| Operating pressure | 5 bar ... 10 bar |
| ATEX category gas | II 2G |
| Type of ignition protection for gas | Ex h IIC T6...T4 Gb |
| ATEX category for dust | II 2D |
| Type of (ignition) protection for dust | Ex h IIIC T80°C...T120°C Db |
| Explosive ambient temperature | 0°C <= Ta <= +60°C |
| Ambient temperature | 0 °C ... 60 °C |
| Explosion prevention and protection | Zone 1 (ATEX)Zone 2 (ATEX)Zone 21 (ATEX)Zone 22 (ATEX) |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Storage temperature | -10 °C ... 60 °C |
| Degree of protection | IP65IP67IP69K |
| Product weight | 1243 g |
| Pneumatic connection | Internal thread G1/8 |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Cover material | Cast stainless steel |
| Seals material | FPM |
| Housing material | Cast stainless steel |
| Material number of housing | 1.4408 |
| Piston rod material | High-alloy stainless steel |
