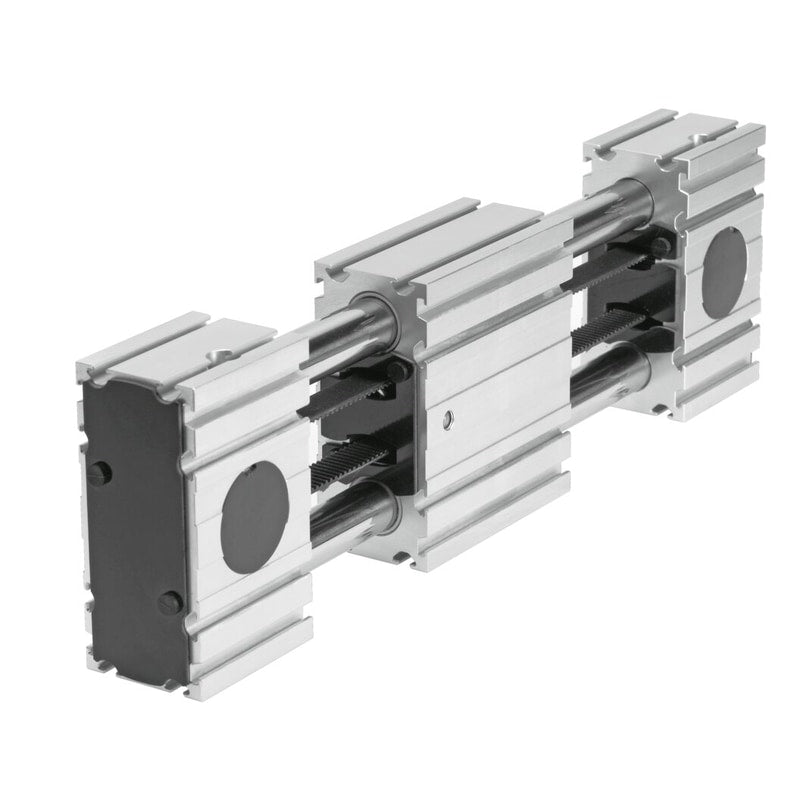

Belt driven linear actuator
ELGR-TB-55-200-0H
8083785
GTIN 4052568449360
Vendor Festo
- Size
- 55
- Max. feed force Fx
- 350 N
- Repetition accuracy
- ±0.1 mm
- Working stroke
- 200 mm
Regular price
$946.37
Unit price
ELGR-TB-55-200-0H is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
ELGR-TB-55-200-0H
Regular price
$946.37
Unit price
ELGR-TB-55-200-0H is backordered and will ship as soon as it is back in stock.
| Drive pinion effective diameter | 28.65 mm |
|---|---|
| Working stroke | 200 mm |
| Size | 55 |
| Toothed belt elongation | 0.0021 |
| Toothed belt pitch | 3 mm |
| Type code | ELGR |
| Mounting position | Any |
| Guide | Recirculating ball bearing guide |
| Design | with toothed beltElectromechanical linear axis |
| Motor type | Stepper motorServo motor |
| Symbol | 991212 |
| Max. acceleration | 50 m/s² |
| Max. speed | 0.35 m/s ... 3 m/s |
| Repetition accuracy | ±0.1 mm |
| Duty cycle | 1 |
| Degree of protection | IP20 |
| Ambient temperature | -10 °C ... 50 °C |
| 2nd moment of area Iy | 38300 mmâ´ |
| 2nd moment of area Iz | 41180 mmâ´ |
| Max. driving torque | 5 Nm |
| Max. force Fy | 300 N |
| Max. force Fz | 300 N |
| Max. no-load resistance to shifting | 27.9 N |
| No-load driving torque | 0.4 Nm |
| Mass moment of inertia JH per meter of stroke | 0.19 kgcm² |
| Mass moment of inertia JL per kg of payload | 2.05 kgcm² |
| Feed constant | 90 mm/U |
| Reference value, running performance | 5000 km |
| Additional weight per 10Â mm stroke | 78 g |
| Product weight | 7000 g |
| Additional moving mass per 10Â mm stroke | 0.92 g |
| Profile material | Wrought aluminum alloyAnodized |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Drive cover material | Wrought aluminum alloyAnodized |
| Belt pulley material | High-alloy stainless steel |
| Slide material | Wrought aluminum alloyAnodized |
| Toothed belt clamping component material | Beryllium bronze |
| Toothed belt material | Polychloroprene with glass cord and nylon coating |
