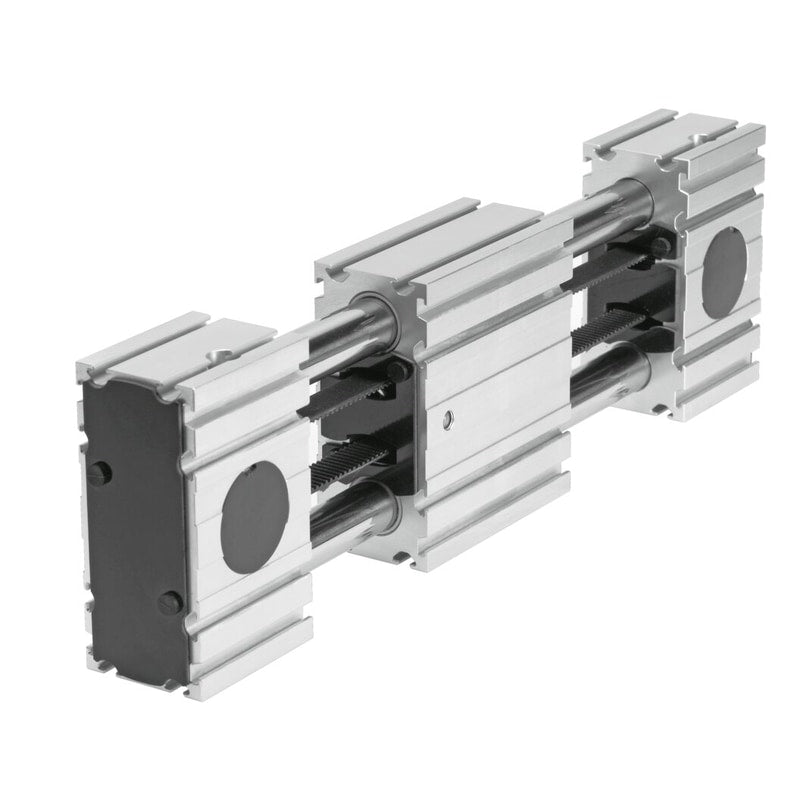

Belt driven linear actuator
ELGR-TB-35-400-0H
8083773
GTIN 4052568449247
Vendor Festo
- Size
- 35
- Max. feed force Fx
- 50 N
- Repetition accuracy
- ±0.1 mm
- Working stroke
- 400 mm
Regular price
$783.18
Unit price
ELGR-TB-35-400-0H is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
ELGR-TB-35-400-0H
Regular price
$783.18
Unit price
ELGR-TB-35-400-0H is backordered and will ship as soon as it is back in stock.
| Drive pinion effective diameter | 18.46 mm |
|---|---|
| Working stroke | 400 mm |
| Size | 35 |
| Toothed belt elongation | 0.00094 |
| Toothed belt pitch | 2 mm |
| Type code | ELGR |
| Mounting position | Any |
| Guide | Recirculating ball bearing guide |
| Design | with toothed beltElectromechanical linear axis |
| Motor type | Stepper motorServo motor |
| Symbol | 991212 |
| Max. acceleration | 50 m/s² |
| Max. speed | 0.9 m/s ... 3 m/s |
| Repetition accuracy | ±0.1 mm |
| Duty cycle | 1 |
| Degree of protection | IP20 |
| Ambient temperature | -10 °C ... 50 °C |
| 2nd moment of area Iy | 3770 mmâ´ |
| 2nd moment of area Iz | 4190 mmâ´ |
| Max. driving torque | 0.46 Nm |
| Max. force Fy | 50 N |
| Max. force Fz | 50 N |
| Max. no-load resistance to shifting | 10.8 N |
| No-load driving torque | 0.1 Nm |
| Mass moment of inertia JH per meter of stroke | 0.026 kgcm² |
| Mass moment of inertia JL per kg of payload | 0.85 kgcm² |
| Feed constant | 58 mm/U |
| Reference value, running performance | 5000 km |
| Additional weight per 10Â mm stroke | 25 g |
| Product weight | 2470 g |
| Additional moving mass per 10Â mm stroke | 0.31 g |
| Profile material | Wrought aluminum alloyAnodized |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Drive cover material | Wrought aluminum alloyAnodized |
| Belt pulley material | High-alloy stainless steel |
| Slide material | Wrought aluminum alloyAnodized |
| Toothed belt clamping component material | Beryllium bronze |
| Toothed belt material | Polychloroprene with glass cord and nylon coating |
