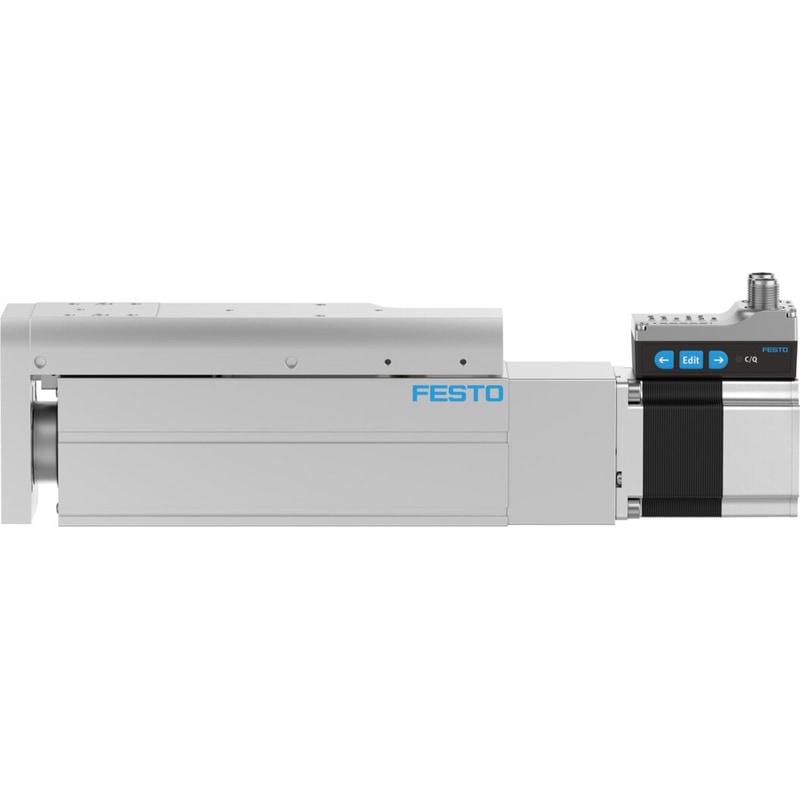

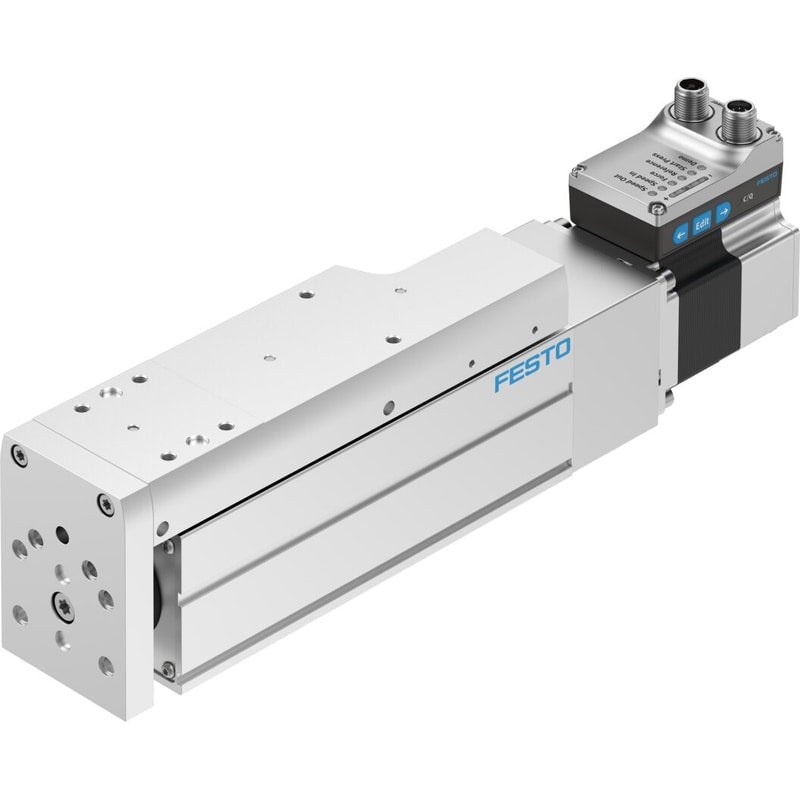

Mini slide unit
EGSS-BS-KF-60-100-12P-ST-M-H1-PLK-AA
8083718
GTIN 4052568457600
Vendor Festo
- Size
- 60
- Max. feed force Fx
- 250 N
- Repetition accuracy
- ±0.015 mm
- Working stroke
- 100 mm
Regular price
$1,503.68
Unit price
EGSS-BS-KF-60-100-12P-ST-M-H1-PLK-AA is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
EGSS-BS-KF-60-100-12P-ST-M-H1-PLK-AA
Regular price
$1,503.68
Unit price
EGSS-BS-KF-60-100-12P-ST-M-H1-PLK-AA is backordered and will ship as soon as it is back in stock.
| KC characters | KC EMC |
|---|---|
| Additional functions | User interfaceIntegrated end-position sensing |
| Switching logic at outputs | PNP (positive switching) |
| Relative air humidity | 0 - 90 % |
| Shock resistance | Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27 |
| Vibration resistance | Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6 |
| Characteristics of digital logic outputs | ConfigurableNot galvanically isolated |
| Rotor position sensor | Absolute encoder, single-turn |
| Insulation protection class | B |
| Logic input specification | Based on IEC 61131-2, type 1 |
| Parameterization interface | IO-Link®User interface |
| Characteristics of logic input | ConfigurableNot galvanically isolated |
| Ready status indication | LED |
| Max. cable length | 15 m outputs15 m inputs20 m for IO-Link® operation |
| Display | LED |
| Rotor position sensor measuring principle | Magnetic |
| Input switching logic | PNP (positive switching) |
| Note on ambient temperature | Above an ambient temperature of 30°C, the power must be reduced by 2% per K. |
| Permissible voltage fluctuations | +/- 15 % |
| Power supply, connection pattern | 00995989 |
| Power supply, type of connection | Plug |
| Logic interface, connection pattern | 00992264 |
| Logic interface, connection type | Plug |
| Power supply, connection technology | M12x1, T-coded as per EN 61076-2-111 |
| Logic interface, connection technology | M12x1, A-coded as per EN 61076-2-101 |
| Number of digital logic inputs | 2 |
| Number of digital logic outputs 24 V DC | 2 |
| Logic interface, number of poles/wires | 8 |
| DC nominal voltage | 24 V |
| Power supply, number of pins/wires | 4 |
| Max. current of digital logic outputs | 100 mA |
| Rotor position sensor resolution | 16 bit |
| Max. current consumption | 5300 mA |
| Storage temperature | -20 °C ... 60 °C |
| Nominal current | 5.3 A |
| Work range of logic input | 24 V |
| IO-Link®, number of ports | 1 |
| IO-Link®, Connection technology | Plug |
| IO-Link®, communication mode | COM3 (230.4 kBd) |
| IO-Link®, protocol version | Device V 1.1 |
| IO-Link®, port class | A |
| IO-Link®, service data contents IN | 32 bit force32 bit position32 bit speed |
| IO-Link®, process data width IN | 2 Byte |
| IO-Link®, minimum cycle time | 1 ms |
| IO-Link®, process data content OUT | 1 bit (move in)1 bit (move out)1 bit (quit error) |
| Protection class | III |
| IO-Link®, process data width OUT | 2 Byte |
| IO-Link®, process data content IN | 1 bit (state device)1 bit (state move)1 bit (state in)1 bit (state out) |
| IO-Link®, SIO mode support | Yes |
| IO-Link®, data memory required | 500 byte |
| Working stroke | 100 mm |
| Size | 60 |
| Stroke reserve | 0 mm |
| Reversing backlash | 150 µm |
| Screw diameter | 12 mm |
| Spindle pitch | 12 mm/U |
| Type code | EGSS |
| Mounting position | Any |
| Guide | Recirculating ball bearing guide |
| Design | Electrical mini-slidewith ball screw driveWith integrated drive |
| Motor type | Stepper motor |
| Homing | Fixed stop block positiveFixed stop block, negativeReference switch |
| Spindle type | Ball screw drive |
| Symbol | 00997294 |
| Position sensing | Motor encoderFor proximity sensor |
| Max. acceleration | 5 m/s² |
| Max. speed | 0.24 m/s |
| Repetition accuracy | ±0.015 mm |
| Duty cycle | 100% |
| CE marking (see declaration of conformity) | As per EU EMC directiveAs per EU RoHS directive |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Degree of protection | IP40 |
| Ambient temperature | 0 °C ... 50 °C |
| Certification | RCM compliance mark |
| Fixed bearing dynamic basic load rating | 13321 N |
| Linear guide dynamic basic load rating | 13400 N |
| Dynamic basic load rating, ball screw drive | 4600 N |
| Max. force Fy | 4937 N |
| Max. force Fz | 4937 N |
| Max. torque Mx | 20 Nm |
| Max. torque My | 30 Nm |
| Max. torque Mz | 30 Nm |
| Max. radial force on actuator shaft | 420 N |
| Max. feed force Fx | 250 N |
| Guide value for payload, horizontal | 10 kg |
| Guide value for payload, vertical | 10 kg |
| Ball screw drive statistical basic load rating | 8500 N |
| Linear guide statistical basic load rating | 26900 N |
| Feed constant | 12 mm/U |
| Statistical fixed bearing load rating | 7000 N |
| Reference value, running performance | 5000 km |
| Maintenance interval | Life-time lubrication |
| Moving mass at 0 mm stroke | 675 g |
| Additional weight per 10 mm stroke | 95 g |
| Basic weight with 0 mm stroke | 2735 g |
| Product weight | 3685 g |
| Additional moving mass per 10 mm stroke | 40 g |
| Type of mounting | With internal threadWith centering sleeveWith accessoriesWith cylindrical pin |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Slide carriage material | Roller bearing steel |
| Guide rail material | Roller bearing steel |
| Housing material | Wrought aluminum alloy, anodized |
| Material of yoke plate | Wrought aluminum alloy, anodized |
| Piston rod material | High-alloy stainless steel |
| Slide material | Wrought aluminum alloy, anodized |
| Spindle nut material | Roller bearing steel |
| Spindle material | Roller bearing steel |
