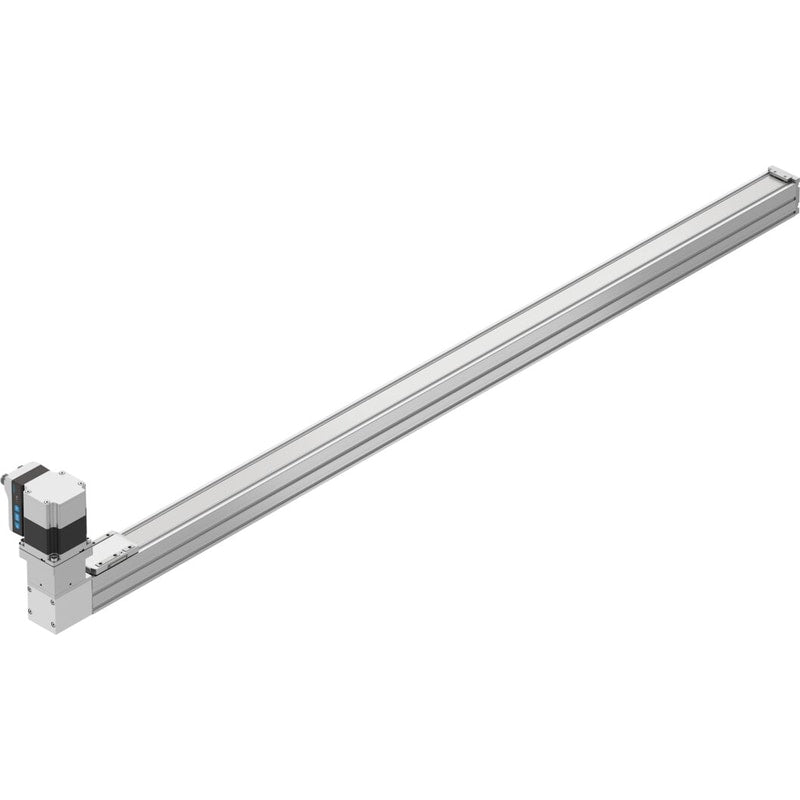

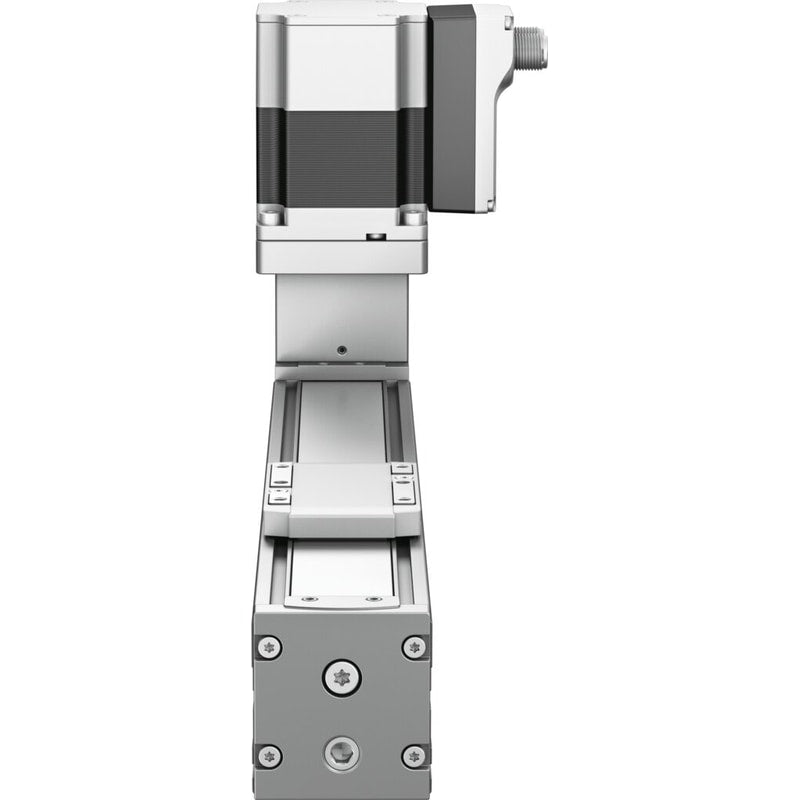

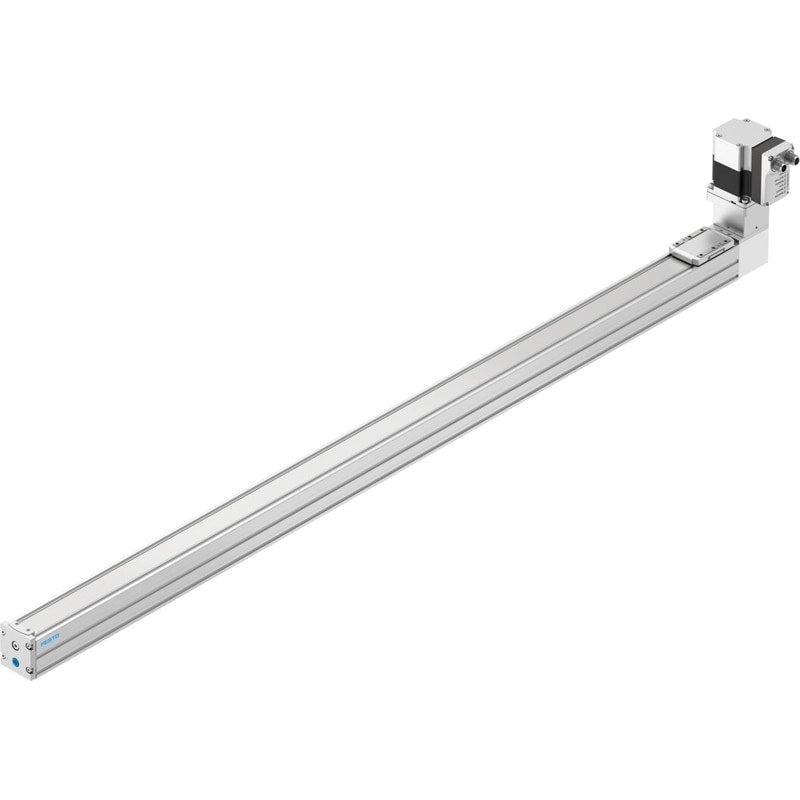

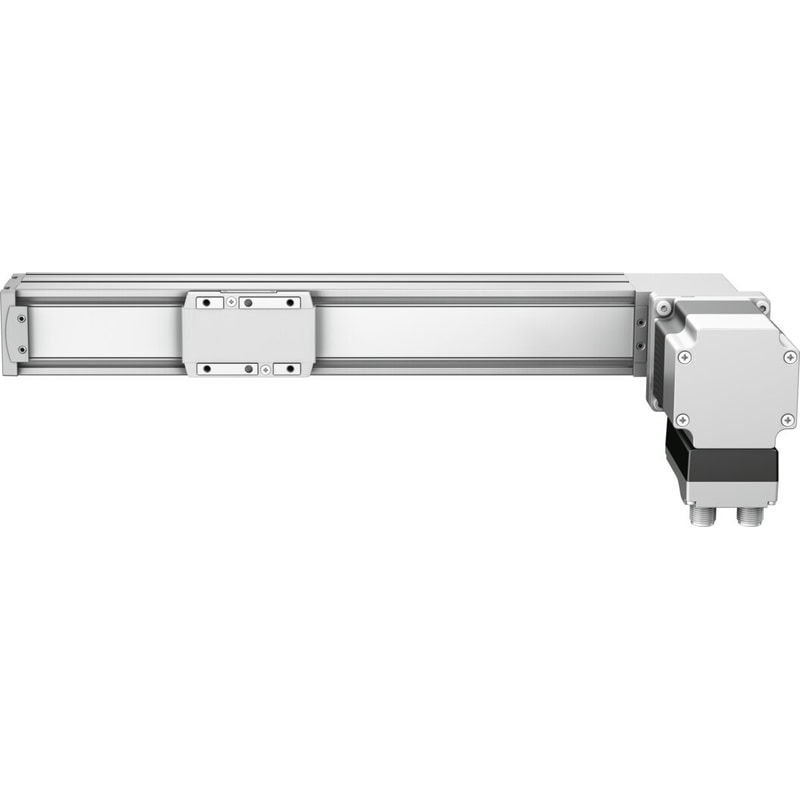

Toothed belt axis unit
ELGS-TB-KF-45-1000-ST-M-H1-PLK-AA
8083670
GTIN 4052568458560
Vendor Festo
- Size
- 45
- Max. feed force Fx
- 75 N
- Repetition accuracy
- ±0.1 mm
- Working stroke
- 1000 mm
Regular price
$1,450.05
Unit price
ELGS-TB-KF-45-1000-ST-M-H1-PLK-AA is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
ELGS-TB-KF-45-1000-ST-M-H1-PLK-AA
Regular price
$1,450.05
Unit price
ELGS-TB-KF-45-1000-ST-M-H1-PLK-AA is backordered and will ship as soon as it is back in stock.
| KC characters | KC EMC |
|---|---|
| Drive pinion effective diameter | 19.1 mm |
| Shock resistance | Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27 |
| Insulation protection class | B |
| Logic input specification | Based on IEC 61131-2, type 1 |
| Max. cable length | 15 m outputs15 m inputs20 m for IO-Link® operation |
| Parameterization interface | IO-Link®User interface |
| Relative air humidity | 0 - 90 % |
| Rotor position sensor | Absolute encoder, single-turn |
| Permissible voltage fluctuations | +/- 15 % |
| Homing | Fixed stop block positiveFixed stop block, negative |
| Note on ambient temperature | Above an ambient temperature of 30°C, the power must be reduced by 2% per K. |
| Input switching logic | PNP (positive switching) |
| Rotor position sensor measuring principle | Magnetic |
| Position sensing | Motor encoderFor proximity sensor |
| Vibration resistance | Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6 |
| Display | LED |
| Switching logic at outputs | PNP (positive switching) |
| Characteristics of digital logic outputs | ConfigurableNot galvanically isolated |
| Ready status indication | LED |
| Characteristics of logic input | ConfigurableNot galvanically isolated |
| Logic interface, connection type | Plug |
| Logic interface, connection technology | M12x1, A-coded as per EN 61076-2-101 |
| Logic interface, connection pattern | 00992264 |
| Power supply, connection pattern | 00995989 |
| Power supply, connection technology | M12x1, T-coded as per EN 61076-2-111 |
| Power supply, type of connection | Plug |
| Number of digital logic inputs | 2 |
| Number of digital logic outputs 24 V DC | 2 |
| Power supply, number of pins/wires | 4 |
| Max. current of digital logic outputs | 100 mA |
| Guide value for payload, horizontal | 2.5 kg |
| Logic interface, number of poles/wires | 8 |
| DC nominal voltage | 24 V |
| Work range of logic input | 24 V |
| Storage temperature | -20 °C ... 60 °C |
| Rotor position sensor resolution | 16 bit |
| Nominal current | 5.3 A |
| Max. current consumption | 5300 mA |
| IO-Link®, process data width IN | 2 Byte |
| IO-Link®, SIO mode support | Yes |
| IO-Link®, minimum cycle time | 1 ms |
| IO-Link®, process data content OUT | 1 bit (move in)1 bit (move out)1 bit (quit error) |
| IO-Link®, process data content IN | 1 bit (state device)1 bit (state move)1 bit (state in)1 bit (state out) |
| IO-Link®, service data contents IN | 32 bit force32 bit position32 bit speed |
| IO-Link®, communication mode | COM3 (230.4 kBd) |
| IO-Link®, process data width OUT | 2 Byte |
| Protection class | III |
| IO-Link®, protocol version | Device V 1.1 |
| IO-Link®, number of ports | 1 |
| IO-Link®, port class | A |
| IO-Link®, Connection technology | Plug |
| IO-Link®, data memory required | 500 byte |
| Working stroke | 1000 mm |
| Size | 45 |
| Stroke reserve | 0 mm |
| Toothed belt elongation | 0.187 % |
| Toothed belt pitch | 2 mm |
| Type code | ELGS |
| Mounting position | Horizontal |
| Guide | Recirculating ball bearing guide |
| Design | Electromechanical linear axiswith toothed beltWith integrated drive |
| Motor type | Stepper motor |
| Symbol | 00997293 |
| Temperature monitoring | Shutdown in the event of over temperatureIntegrated precise CMOS temperature sensor with analogue output |
| Additional functions | User interfaceIntegrated end-position sensing |
| Max. acceleration | 6 m/s² |
| Max. speed | 1.2 m/s |
| Repetition accuracy | ±0.1 mm |
| Duty cycle | 100% |
| CE marking (see declaration of conformity) | As per EU EMC directiveAs per EU RoHS directive |
| Degree of protection | IP40 |
| Ambient temperature | 0 °C ... 50 °C |
| Certification | RCM compliance mark |
| 2nd moment of area Iy | 140000 mm⁴ |
| 2nd moment of area Iz | 170000 mm⁴ |
| Max. force Fy | 300 N |
| Max. force Fz | 600 N |
| Max. torque Mx | 5.5 Nm |
| Max. torque My | 4.7 Nm |
| Max. torque Mz | 4.7 Nm |
| Max. feed force Fx | 75 N |
| Torsion moment of inertia It | 8500 mm⁴ |
| Feed constant | 60 mm/U |
| Moving mass | 169 g |
| Moving mass at 0 mm stroke | 169 g |
| Slide weight | 55 g |
| Product weight | 4090 g |
| Material of end caps | Die cast aluminum, painted |
| Profile material | Wrought aluminum alloy, anodized |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Cover strip material | Stainless steel strip |
| Drive cover material | Die cast aluminum, painted |
| Slide carriage material | Tempered steel |
| Guide rail material | Tempered steel |
| Belt pulley material | High-alloy stainless steel |
| Slide material | Die-cast aluminum |
| Toothed belt material | Polychloroprene with glass fiber |
