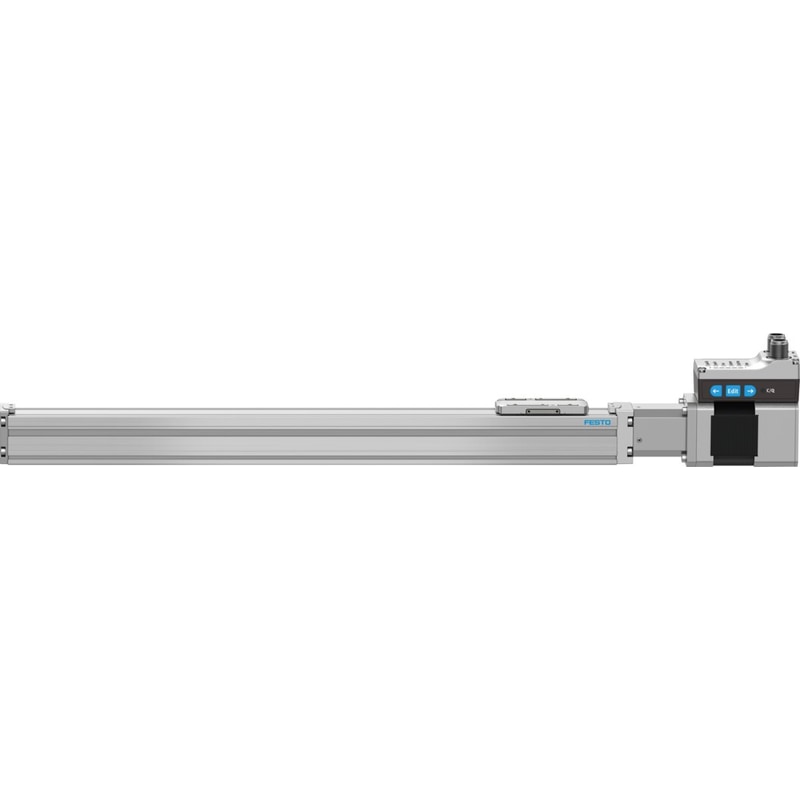

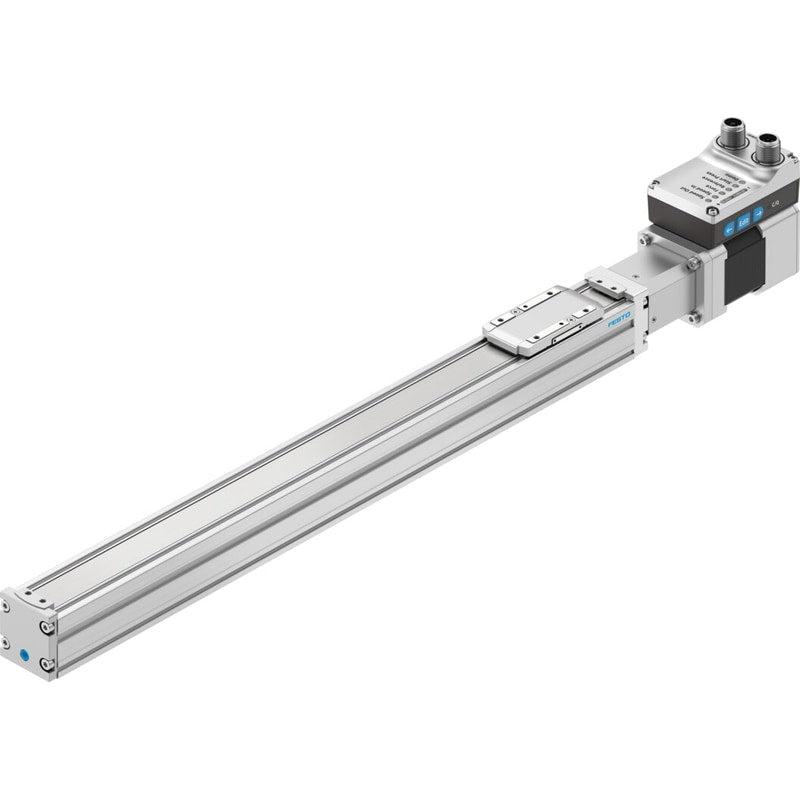

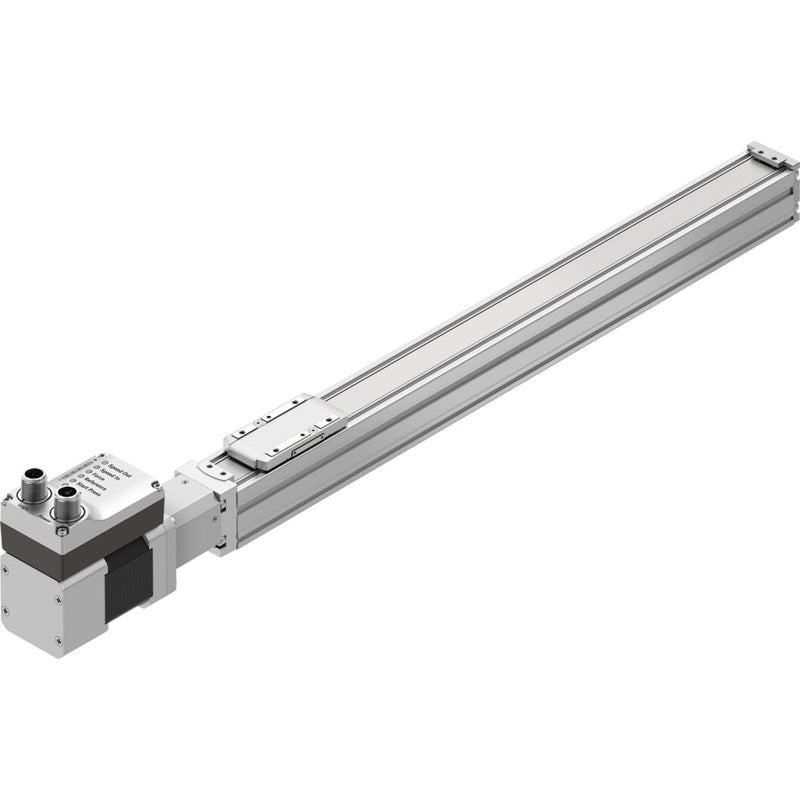

Ball Screw axis unit
ELGS-BS-KF-32-300-8P-ST-M-H1-PLK-AA
8083426
GTIN 4052568458294
Vendor Festo
- Size
- 32
- Max. feed force Fx
- 40 N
- Repetition accuracy
- ±0.015 mm
- Working stroke
- 300 mm
Regular price
$1,489.42
Unit price
ELGS-BS-KF-32-300-8P-ST-M-H1-PLK-AA is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
ELGS-BS-KF-32-300-8P-ST-M-H1-PLK-AA
Regular price
$1,489.42
Unit price
ELGS-BS-KF-32-300-8P-ST-M-H1-PLK-AA is backordered and will ship as soon as it is back in stock.
| KC characters | KC EMC |
|---|---|
| Shock resistance | Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27 |
| Insulation protection class | B |
| Logic input specification | Based on IEC 61131-2, type 1 |
| Max. cable length | 15 m outputs15 m inputs20 m for IO-Link® operation |
| Parameterization interface | IO-Link®User interface |
| Relative air humidity | 0 - 90 % |
| Rotor position sensor | Absolute encoder, single-turn |
| Permissible voltage fluctuations | +/- 15 % |
| Homing | Fixed stop block positiveFixed stop block, negative |
| Note on ambient temperature | Above an ambient temperature of 30°C, the power must be reduced by 2% per K. |
| Input switching logic | PNP (positive switching) |
| Rotor position sensor measuring principle | Magnetic |
| Position sensing | Motor encoderFor proximity sensor |
| Vibration resistance | Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6 |
| Display | LED |
| Switching logic at outputs | PNP (positive switching) |
| Characteristics of digital logic outputs | ConfigurableNot galvanically isolated |
| Ready status indication | LED |
| Characteristics of logic input | ConfigurableNot galvanically isolated |
| Logic interface, connection type | Plug |
| Logic interface, connection technology | M12x1, A-coded as per EN 61076-2-101 |
| Logic interface, connection pattern | 00992264 |
| Power supply, connection pattern | 00995989 |
| Power supply, connection technology | M12x1, T-coded as per EN 61076-2-111 |
| Power supply, type of connection | Plug |
| Number of digital logic inputs | 2 |
| Number of digital logic outputs 24 V DC | 2 |
| Guide value for payload, vertical | 2 kg |
| Power supply, number of pins/wires | 4 |
| Max. current of digital logic outputs | 100 mA |
| Guide value for payload, horizontal | 2 kg |
| Logic interface, number of poles/wires | 8 |
| DC nominal voltage | 24 V |
| Work range of logic input | 24 V |
| Storage temperature | -20 °C ... 60 °C |
| Rotor position sensor resolution | 16 bit |
| Nominal current | 3 A |
| Max. current consumption | 3000 mA |
| IO-Link®, process data width IN | 2 Byte |
| IO-Link®, SIO mode support | Yes |
| IO-Link®, minimum cycle time | 1 ms |
| IO-Link®, process data content OUT | 1 bit (move in)1 bit (move out)1 bit (quit error) |
| IO-Link®, process data content IN | 1 bit (state device)1 bit (state move)1 bit (state in)1 bit (state out) |
| IO-Link®, service data contents IN | 32 bit force32 bit position32 bit speed |
| IO-Link®, communication mode | COM3 (230.4 kBd) |
| IO-Link®, process data width OUT | 2 Byte |
| Protection class | III |
| IO-Link®, protocol version | Device V 1.1 |
| IO-Link®, number of ports | 1 |
| IO-Link®, port class | A |
| IO-Link®, Connection technology | Plug |
| IO-Link®, data memory required | 500 byte |
| Working stroke | 300 mm |
| Size | 32 |
| Stroke reserve | 0 mm |
| Screw diameter | 8 mm |
| Spindle pitch | 8 mm/U |
| Type code | ELGS |
| Mounting position | Any |
| Guide | Recirculating ball bearing guide |
| Design | Electromechanical linear axiswith ball screwWith integrated drive |
| Motor type | Stepper motor |
| Spindle type | Ball screw drive |
| Symbol | 00997292 |
| Temperature monitoring | Shutdown in the event of over temperatureIntegrated precise CMOS temperature sensor with analogue output |
| Additional functions | User interfaceIntegrated end-position sensing |
| Max. acceleration | 5 m/s² |
| Max. speed | 0.18 m/s |
| Repetition accuracy | ±0.015 mm |
| Duty cycle | 100% |
| CE marking (see declaration of conformity) | As per EU EMC directiveAs per EU RoHS directive |
| Degree of protection | IP40 |
| Ambient temperature | 0 °C ... 50 °C |
| Certification | RCM compliance mark |
| 2nd moment of area Iy | 38000 mm⁴ |
| 2nd moment of area Iz | 45000 mm⁴ |
| Max. force Fy | 150 N |
| Max. force Fz | 300 N |
| Fy with theoretical service life of 100 km (from a guide perspective only) | 552 N |
| Fz with theoretical service life of 100 km (from a guide perspective only) | 1104 N |
| Max. torque Mx | 1.3 Nm |
| Max. torque My | 1.1 Nm |
| Max. torque Mz | 1.1 Nm |
| Mx with theoretical service life of 100 km (from a guide perspective only) | 5 Nm |
| My with theoretical service life of 100 km (from a guide perspective only) | 4 Nm |
| Mz with theoretical service life of 100 km (from a guide perspective only) | 4 Nm |
| Max. feed force Fx | 40 N |
| Torsion moment of inertia It | 1700 mm⁴ |
| Feed constant | 8 mm/U |
| Moving mass | 83.4 g |
| Product weight | 1429 g |
| Dynamic deflection (load moved) | 0.05% of axis length, maximum 0.5 mm |
| Static deflection (load at standstill) | 0.1 % of axis length |
| Material of end caps | Die cast aluminum, painted |
| Profile material | Wrought aluminum alloy, anodized |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Cover strip material | High-alloy stainless steel |
| Drive cover material | Die cast aluminum, painted |
| Slide carriage material | Steel |
| Guide rail material | Steel |
| Slide material | Die-cast aluminum |
| Spindle nut material | Steel |
| Spindle material | Steel |
