Pneumatic interface

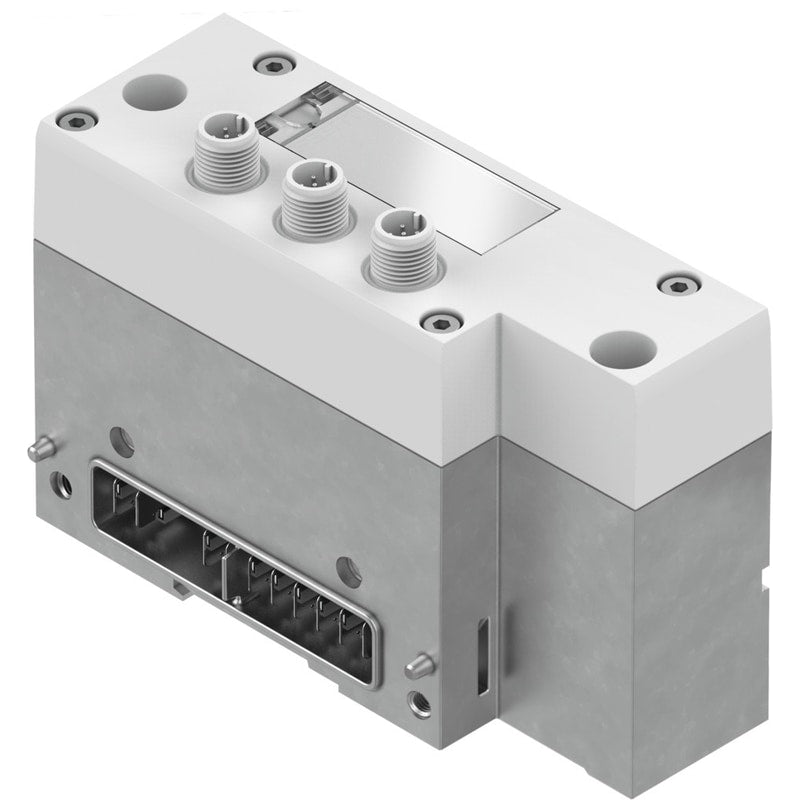

VABA-S6-1-X2-3V-CB
8082878
GTIN 4052568462154
Vendor Festo
Regular price
$333.75
Unit price
VABA-S6-1-X2-3V-CB is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VABA-S6-1-X2-3V-CB
Regular price
$333.75
Unit price
VABA-S6-1-X2-3V-CB is backordered and will ship as soon as it is back in stock.
| Type code | VABA |
|---|---|
| Valve manifold interface | Type 44, VTSA |
| Diagnostics | Wire break per valve coilShort circuit of pneumatic valvesUndervoltage of pneumatic valves |
| Max. no. of valve positions | 12 for bistable pneumatic valves24 for monostable pneumatic valves |
| LED indicators | 1 group diagnostics3 load supplyChannel status on pneumatic valves |
| Parameterization | Fail-safe modes per channelForcing per channelIdle mode per channelModule monitoring |
| Fuse protection (short circuit) | Internal electronic fuse per pneumatic valve output |
| DC operating voltage range | 21.6 V ... 26.4 V |
| Intrinsic current consumption at nominal operating voltage | typ. 11 mA (electronics operating voltage supply)Typ. 45 mA (pneumatic valve load power supply) |
| Max. power supply per channel | 0.2 A |
| Max. residual current per module | 6 A |
| Nominal operating voltage DC | 24 V |
| Electrical isolation between channel and internal bus | yes |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Degree of protection | IP65NEMA 4 |
| Ambient temperature | -5 °C ... 50 °C |
| Product weight | 580 g |
| Electrical actuation | Fieldbus |
| Electrical connection | 3x M12x1 A-coded5-pinPlugVia CPX |
| Note on materials | RoHS-compliant |
| Cover material | PA |
| Housing material | Die-cast aluminum |
