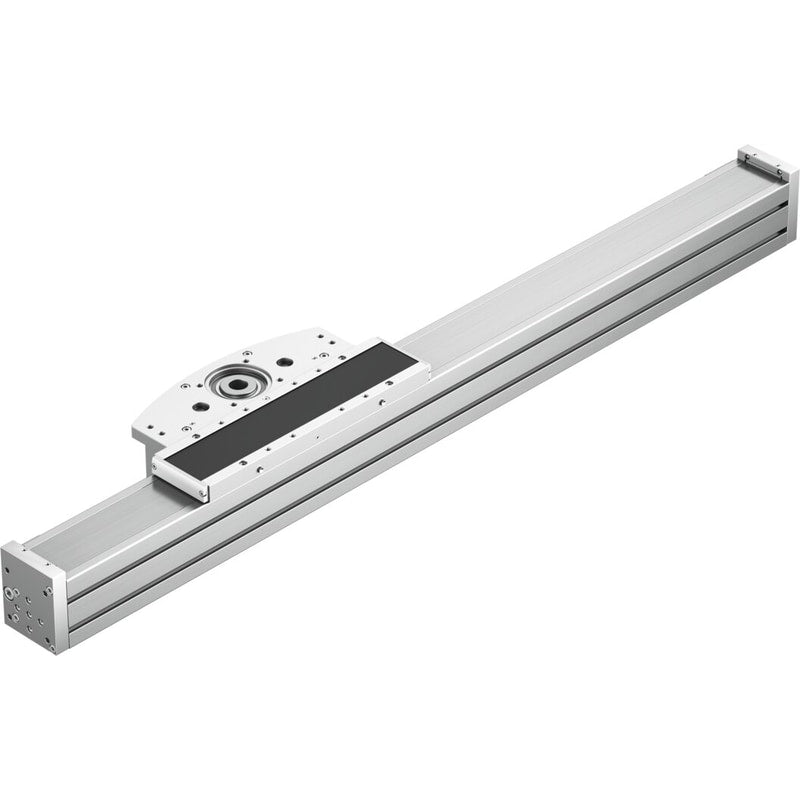

Cantilever linear actuator
ELCC-TB-KF-90-500-0H-P0-CR
8082401
GTIN 4052568447939
Vendor Festo
- Size
- 90
- Max. feed force Fx
- 1200 N
- Repetition accuracy
- ±0.05 mm
Regular price
$5,301.32
Unit price
Cantilever linear actuator ELCC-TB-KF-90-500-0H-P0-CR is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
ELCC-TB-KF-90-500-0H-P0-CR
Regular price
$5,301.32
Unit price
Cantilever linear actuator ELCC-TB-KF-90-500-0H-P0-CR is backordered and will ship as soon as it is back in stock.
cantilever axis ELCC-TB-KF-90-500-0H-P0-CR Part number: 8082401
| Effective diameter of drive pinion | 50.93 mm |
|---|---|
| Working stroke | 500 mm |
| Size | 90 |
| Stroke reserve | 0 mm |
| Toothed-belt pitch | 5 mm |
| Assembly position | Any |
| Guide | Recirculating ball bearing guide |
| Design structure | Electromechanical Cantilever axis |
| Max. acceleration | 30 m/s2 |
| Max. speed | 5 m/s |
| Repetition accuracy | ±0,05 mm |
| Corrosion resistance classification CRC | 0 - No corrosion stress |
| Protection class | IP20 |
