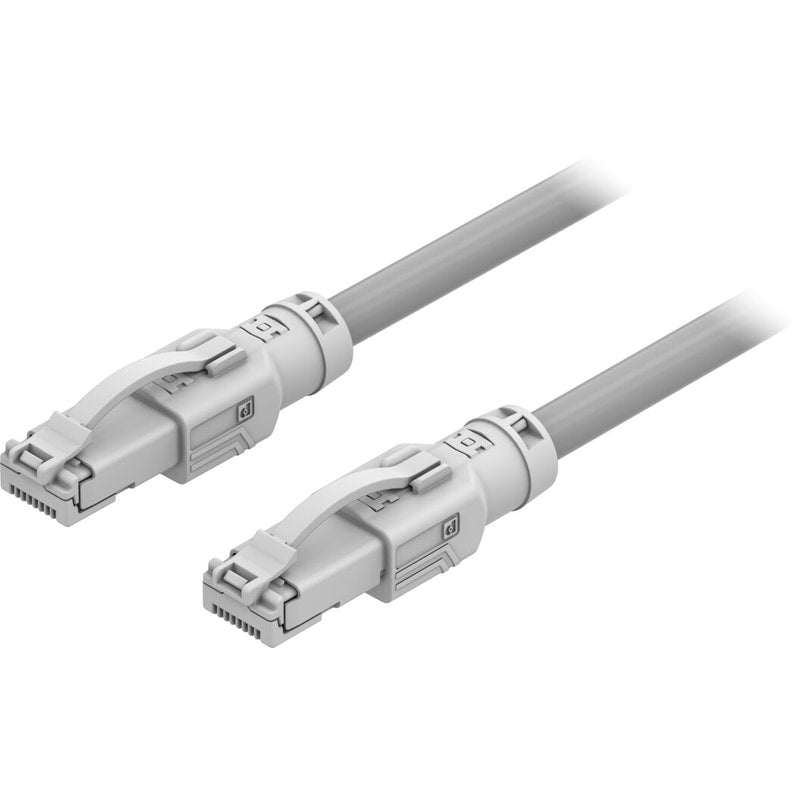

Connecting cable
NEBC-R3G8-KS-0.2-N-S-R3G8-ET
8082383
GTIN 4052568447779
Vendor Festo
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, connection technology
- RJ45
- Electrical connection 2, connection type
- Plug
- Electrical connection 2, connection technology
- RJ45
- Cable length
- 0.2 m
Regular price
$15.91
Unit price
NEBC-R3G8-KS-0.2-N-S-R3G8-ET is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NEBC-R3G8-KS-0.2-N-S-R3G8-ET
Regular price
$15.91
Unit price
NEBC-R3G8-KS-0.2-N-S-R3G8-ET is backordered and will ship as soon as it is back in stock.
| Type code | NEBC |
|---|---|
| Shield | yes |
| Cable designation | Without label holder |
| Product weight | 15 g |
| Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Rectangular |
| Electrical connection 1, connection type | Plug |
| Electrical connection 1, cable outlet | Straight |
| Electrical connection 1, connection technology | RJ45 |
| Electrical connection 1, number of pins/wires | 8 |
| Electrical connection 1, occupied pins/wires | 8 |
| Electrical connection for input 1, connection pattern | 995653 |
| Electrical connection 2, function | Control side |
| Electrical connection 2, design | Rectangular |
| Electrical connection 2, connection type | Plug |
| Electrical connection 2, cable outlet | Straight |
| Electrical connection 2, connection technology | RJ45 |
| Electrical connection 2, number of pins/wires | 8 |
| Electrical connection 2, occupied pins/wires | 8 |
| Electrical connection 2, connection pattern | 995653 |
| DC operating voltage range | 0 V ... 50 V |
| Current rating at 40°C | 1.5 A |
| Surge resistance | 2.5 kV |
| Cable characteristic | Standard |
| Connector cable test conditions | Test conditions on request |
| Bending radius, fixed cable installation | 24 mm |
| Cable diameter | 5 mm |
| Cable design | 4 x 2 x 0.16 mm² |
| Nominal conductor cross section | 0.16 mm² |
| Degree of protection | IP20 |
| Note on degree of protection | In mounted state |
| Ambient temperature | -20 °C ... 60 °C |
| CE marking (see declaration of conformity) | As per EU RoHS directive |
| Note on materials | RoHS-compliant |
| Contamination level | 2 |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Material of cable sheath | PVC |
| Color cable sheath | Gray |
| Housing material | PVC |
| Housing colour | Gray |
| Insulating sheath material | PVC |
