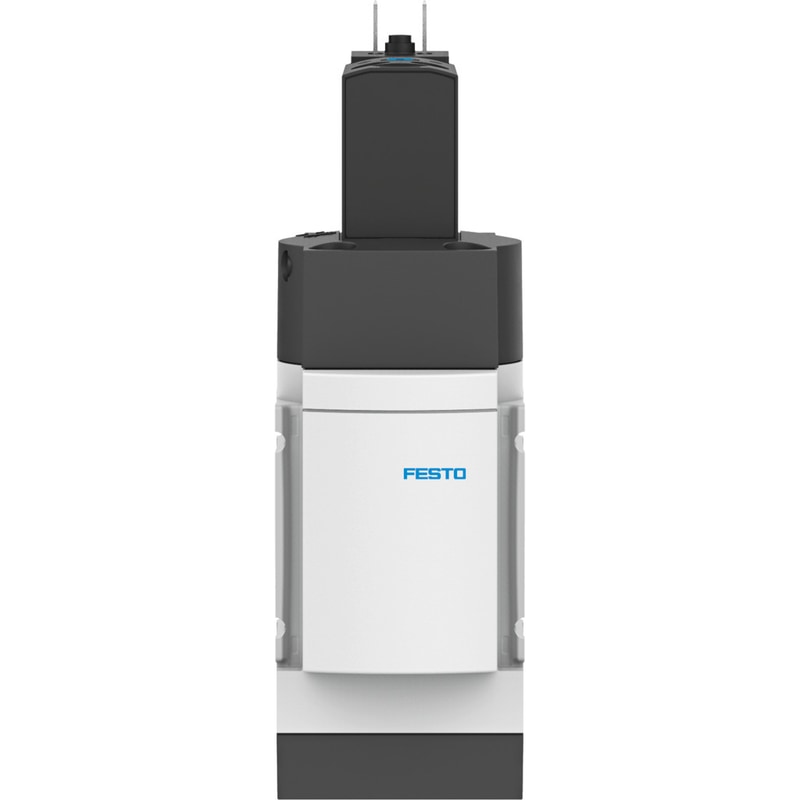

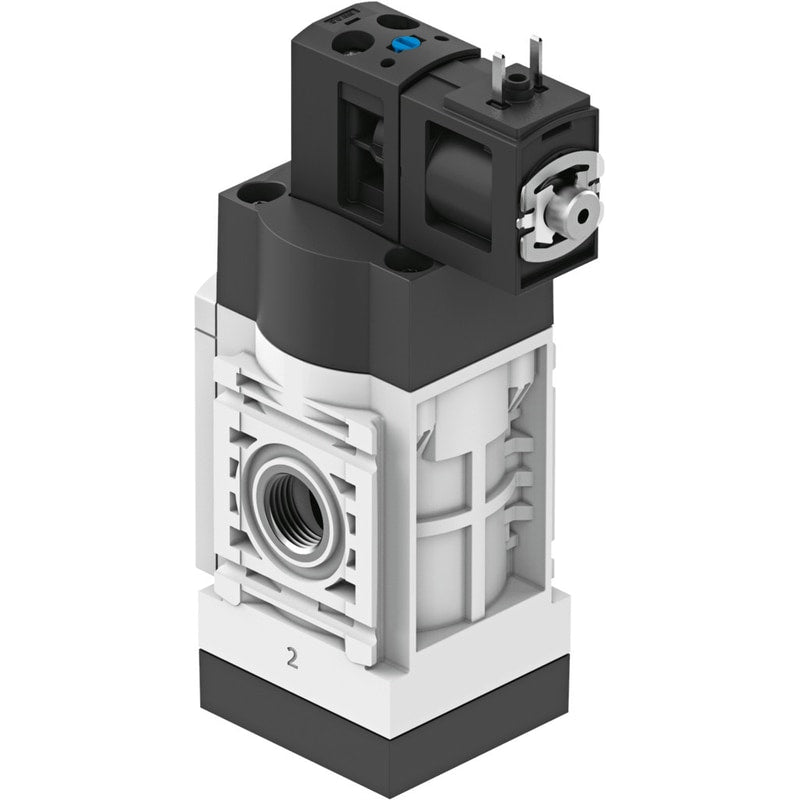

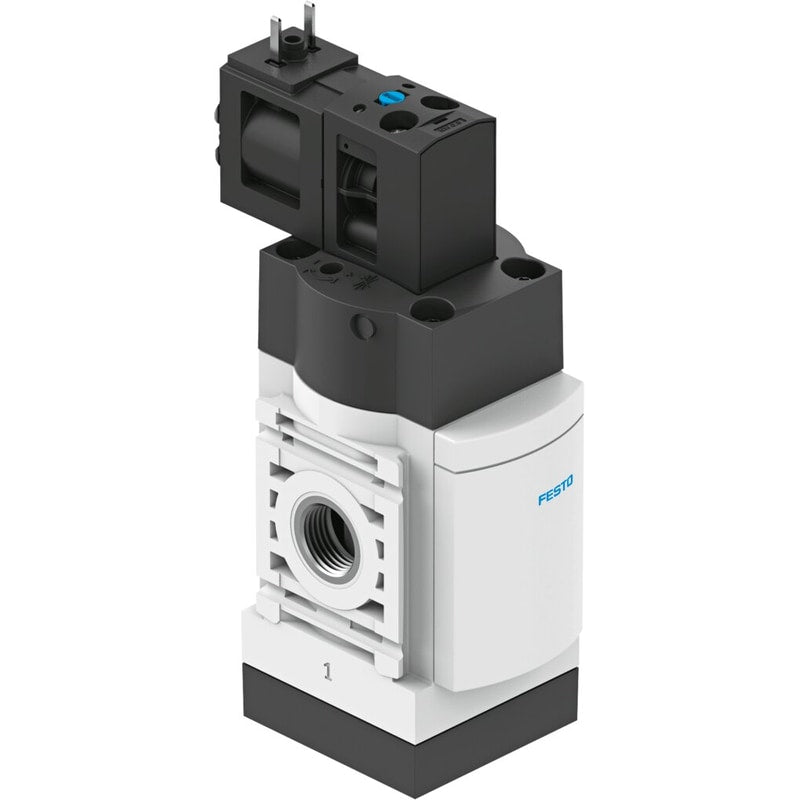

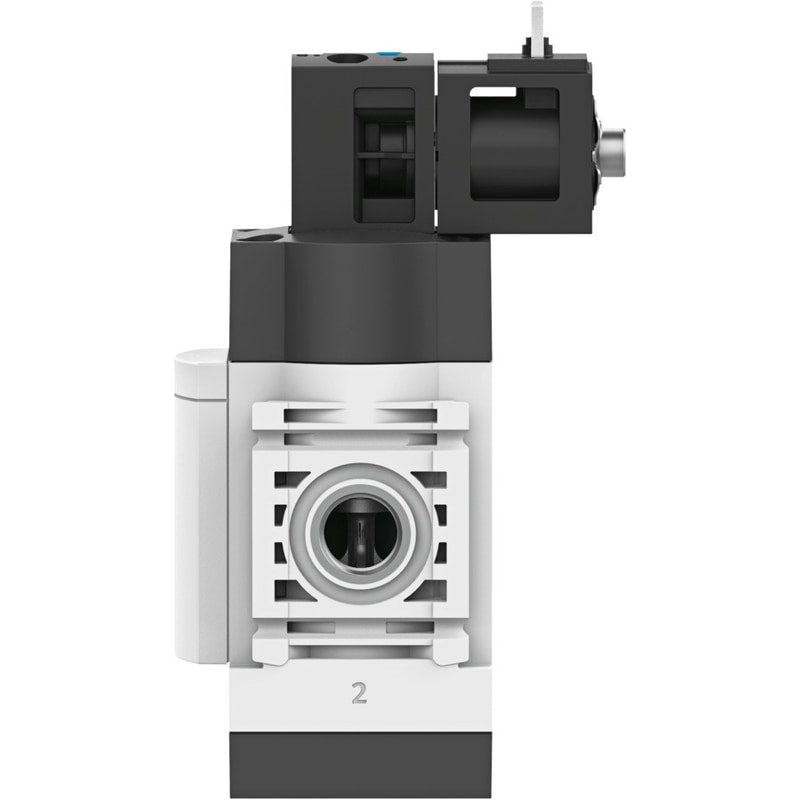

Soft-start valve MS4-EDE-1/4-V24-B
8080815
Vendor Festo
Regular price
$190.58
Unit price
Soft-start valve MS4-EDE-1/4-V24-B is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
Soft-start valve MS4-EDE-1/4-V24-B
Regular price
$190.58
Unit price
Soft-start valve MS4-EDE-1/4-V24-B is backordered and will ship as soon as it is back in stock.
| Size | 4 |
|---|---|
| Width dimension | 40 mm |
| Exhaust air function | Without flow control option |
| Actuation type | Electrical |
| Mounting position | Vertical +/- 5° |
| Series | MS |
| Manual override | Detenting Non-detenting |
| Structural design | Poppet valve, electrically actuated |
| Reset method | Mechanical spring |
| Type of control | Pilot-controlled |
| Pilot air supply port | Internal |

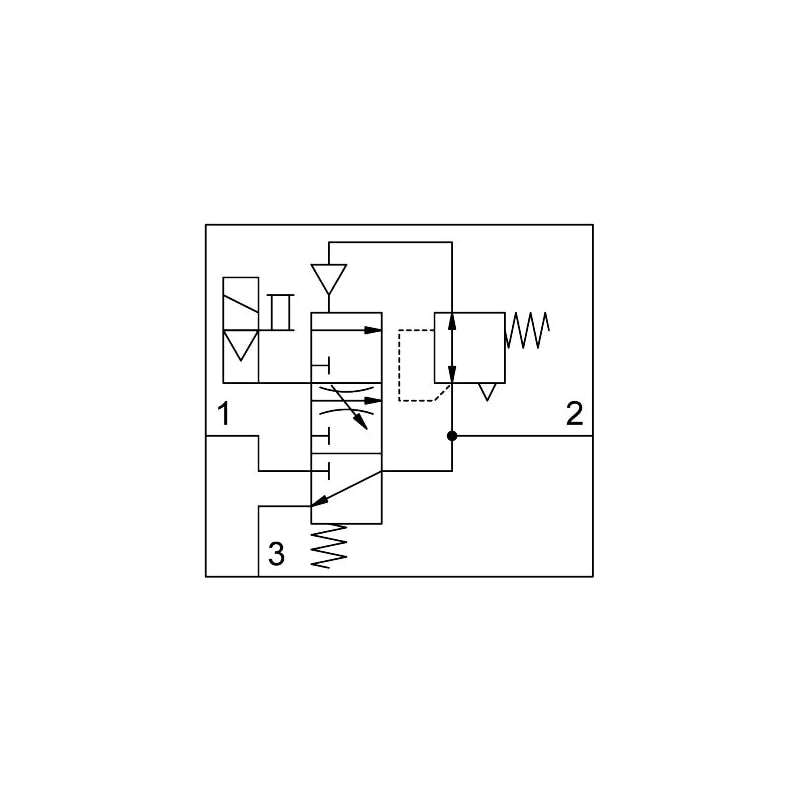

| Symbol | 00993648 |
| Valve function | 3/2, closed, monostable |
| Switching position indication | with accessories |
| Operating pressure | 0.3 MPa ... 0.7 MPa |
| Operating pressure | 3 bar ... 7 bar |
| b-value | 0.45 |
| C value | 8.52 l/sbar |
| Standard flow rate exhaust 6-> 0 bar | > 1600 l/min |
| Standard nominal flow rate | 2000 l/min |
| On time | 31 ms |
| Coil characteristics | 24 V DC: 2.3 W |
| Permissible voltage fluctuations | +/- 10 % |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS conformity | VDMA24364-B1/B2-L |
| Storage temperature | -10 °C ... 60 °C |
| Temperature of medium | -5 °C ... 50 °C |
| Degree of protection | IP65 |
| Ambient temperature | -5 °C ... 50 °C |
| Product weight | 196 g |
| Electrical connection | Form C as per EN 175301-803 |
| Signal status display | With accessories |
| Type of mounting | With wall/surface bracket |
| Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | G¼ |
| Pneumatic connection 3 | G1/4 |
| Note on materials | RoHS-compliant |
| Seals material | HNBR NBR |
| Housing material | PA-reinforced |
