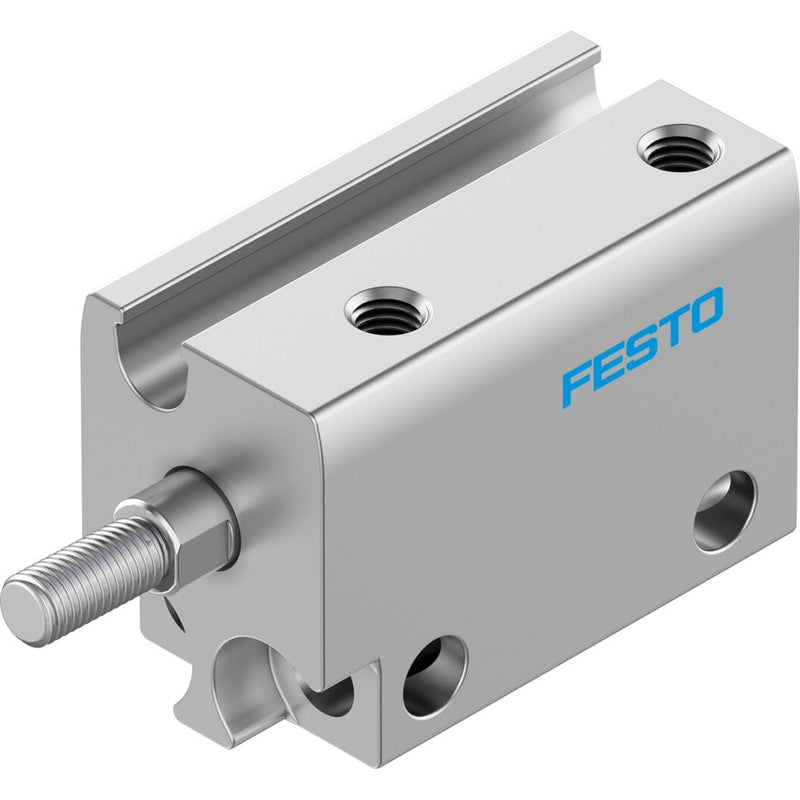

Compact cylinder
AEN-S-6-5-A-A
8080591
GTIN 4052568447465
Vendor Festo
- Mode of operation
- Pushing
- Piston diameter
- 6 mm
- Theoretical force at 6 bar, advancing
- 13 N
- Stroke
- 5 mm
- Cushioning
- No cushioning
Regular price
$35.90
Unit price
Compact cylinder AEN-S-6-5-A-A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
AEN-S-6-5-A-A
Regular price
$35.90
Unit price
Compact cylinder AEN-S-6-5-A-A is backordered and will ship as soon as it is back in stock.
compact cylinder AEN-S-6-5-A-A Part number: 8080591
| Stroke | 5 mm |
|---|---|
| Piston diameter | 6 mm |
| Cushioning | No cushioning |
| Assembly position | Any |
| Mode of operation | pushing action |
| Piston-rod end | Male thread |
| Design structure | PistonPiston rod |
| Position detection | For proximity sensor |
| Variants | Single-ended piston rod |
| Operating pressure | 2.5 ... 8 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
