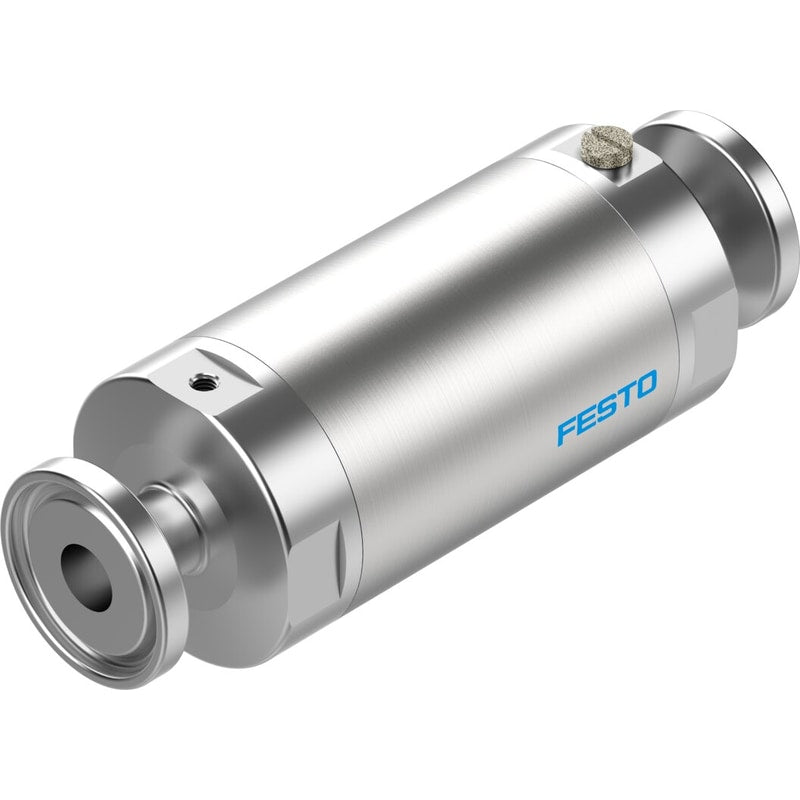

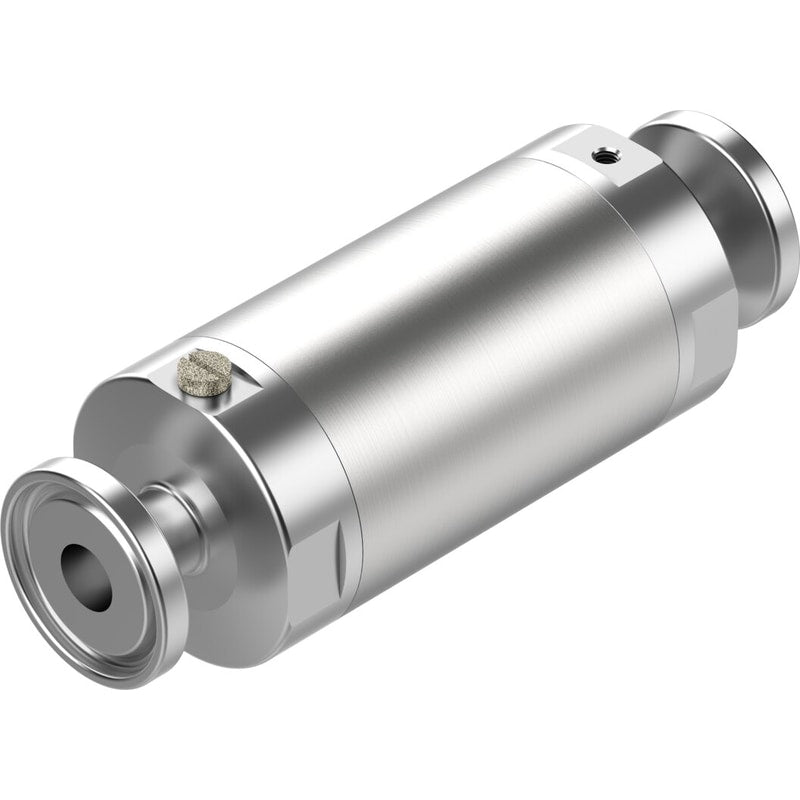

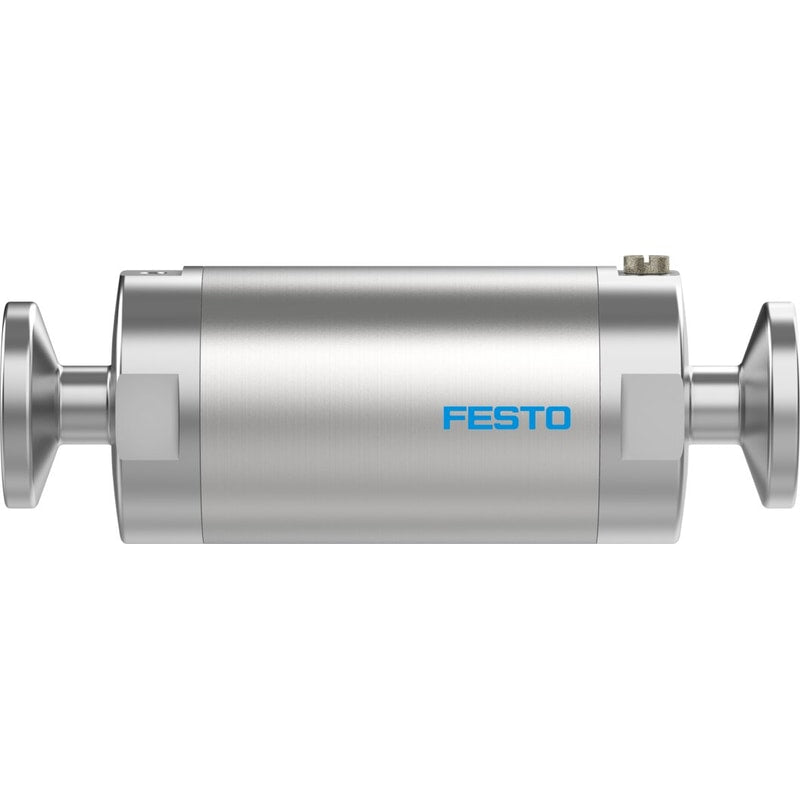

Pinch valve
VZQA-C-M22C-6-S1S1-V2V4E-4
8079858
GTIN 4052568447373
Vendor Festo
- Structural design
- Pinch valve, pneumatically operated
- Valve function
- 2/2, closed, monostable
- Fitting connection
- Clamp as per ASME-BPE, type A
- Flow rate Kv
- 0.7 m³/h
- Medium pressure
- 0 bar - 4 bar
Regular price
$734.02
Unit price
VZQA-C-M22C-6-S1S1-V2V4E-4 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VZQA-C-M22C-6-S1S1-V2V4E-4
Regular price
$734.02
Unit price
VZQA-C-M22C-6-S1S1-V2V4E-4 is backordered and will ship as soon as it is back in stock.
| Type code | VZQA |
|---|---|
| Design | Pinch valve, pneumatically operated |
| Actuation type | Pneumatic |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of mounting | Line installation |
| Fitting connection | Clamp as per DIN 32676 series A |
| Nominal width DN | 6 |
| Valve function | 2/2, closed, monostable |
| Flow direction | Reversible |
| Medium pressure | 0 bar ... 4 bar |
| Operating pressure | 3.5 bar ... 6 bar |
| Nominal pressure of fitting PN | 10 |
| Burst pressure | 16 bar |
| Reset method | Mechanical spring |
| Type of control | Externally controlled |
| Auxiliary pilot air port 12 | M3 |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:1] |

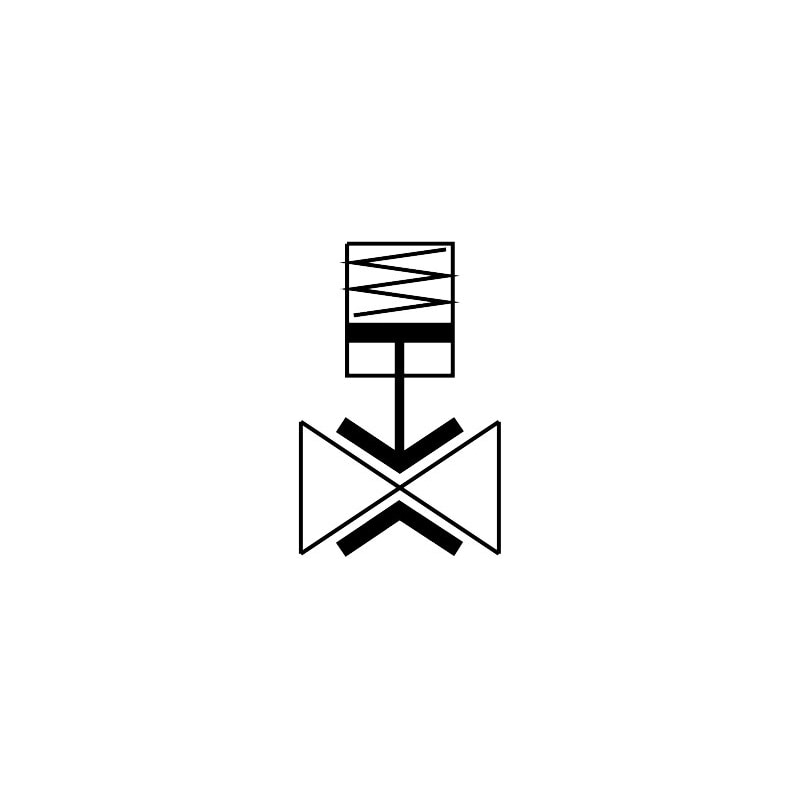

| Symbol | 992981 |
| Medium | WaterCompressed air as per ISO 8573-1:2010 [-:-:1] |
| Max. viscosity | 4000 mm²/s |
| Temperature of medium | -15 °C ... 50 °C |
| Ambient temperature | -5 °C ... 60 °C |
| Flow rate Kv | 0.7 m³/h |
| On switching time | 125 ms |
| Switching time off | 125 ms |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Housing material | High-alloy stainless steel |
| Material number of housing | 1.4301 |
| Housing cover material | High-alloy stainless steel |
| Material no. housing cover | 1.4435 |
| Seals material | FPM |
| Shut-off element material | EPDM |
| Product weight | 302 g |
| For use in the food industry | See supplementary material information |
| Material of bowl | PA6 |
