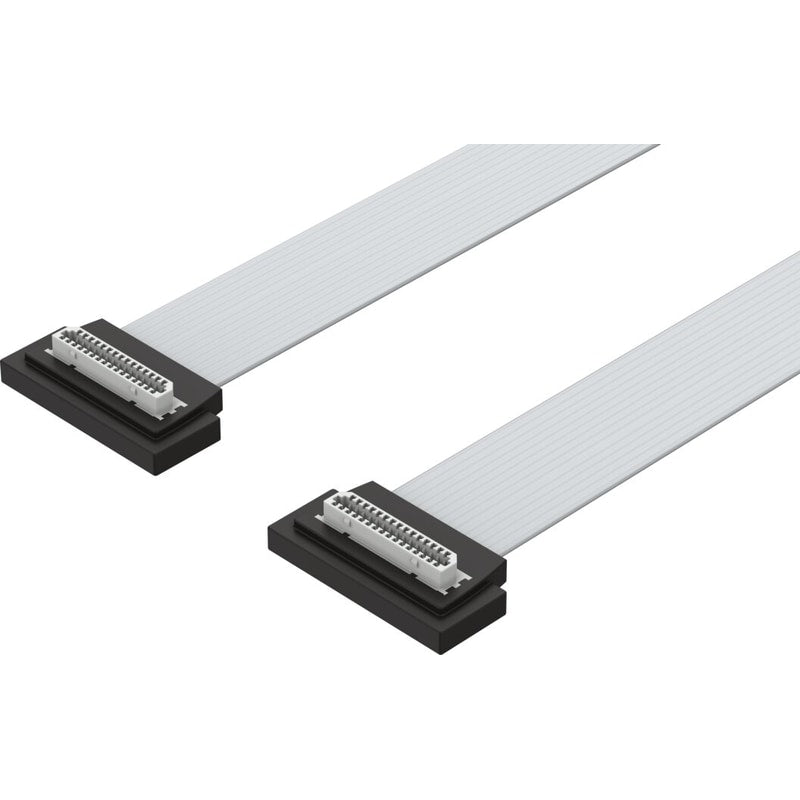

Motor cable
NEBM-F1W31-XC-0.5-F1N-DF1W31
8079819
GTIN 4052568447342
Vendor Festo
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, connection technology
- Connection diagram F1
- Electrical connection 2, connection type
- Socket
- Electrical connection 2, connection technology
- Connection diagram F1
- Cable length
- 0.5 m
Regular price
$173.16
Unit price
NEBM-F1W31-XC-0.5-F1N-DF1W31 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NEBM-F1W31-XC-0.5-F1N-DF1W31
Regular price
$173.16
Unit price
NEBM-F1W31-XC-0.5-F1N-DF1W31 is backordered and will ship as soon as it is back in stock.
| Type code | NEBM |
|---|---|
| Information on bending radius, fixed cable installation | Can be bent once |
| Cable designation | Without label holder |
| Contact durability | 30 |
| Product weight | 27 g |
| Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Rectangular |
| Electrical connection 1, connection type | Socket |
| Electrical connection 1, cable outlet | Angled |
| Electrical connection 1, connection technology | Connection diagram F1 |
| Electrical connection 1, number of pins/wires | 31 |
| Electrical connection 1, occupied pins/wires | 31 |
| Electrical connection 1, type of mounting | Snap-locking |
| Electrical connection for input 1, connection pattern | 995930 |
| Electrical connection 2, function | Control side |
| Electrical connection 2, design | Rectangular |
| Electrical connection 2, connection type | Socket |
| Electrical connection 2, cable outlet | Angled |
| Electrical connection 2, connection technology | Connection diagram F1 |
| Electrical connection 2, number of pins/wires | 31 |
| Electrical connection 2, occupied pins/wires | 31 |
| Electrical connection 2, type of mounting | Snap-locking |
| Electrical connection 2, connection pattern | 995930 |
| Nominal operating voltage DC | 50 V |
| Current rating at 40°C | 0.5 A |
| Surge resistance | 0.25 kV |
| Cable length | 0.5 m |
| Cable characteristic | for dynamic applications |
| Connector cable test conditions | Test conditions on request |
| Bending radius, fixed cable installation | 0 mm |
| Bending radius, flexible cable installation | ≥ 25 mm |
| Cable design | 31 wires, distance 0.5 mm |
| Nominal conductor cross section | 0.0105 mm² |
| Degree of protection | IP20 |
| Note on degree of protection | In mounted state |
| Ambient temperature | -20 °C ... 75 °C |
| Ambient temperature with flexible cable installation | -5 °C ... 70 °C |
| Storage temperature | -25 °C ... 55 °C |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Contamination level | 1 |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Material of cable sheath | PET |
| Color cable sheath | Gray |
| Housing material | PA |
| Housing colour | Black |
| Material of pin contacts | Copper alloy, tin-plated |
