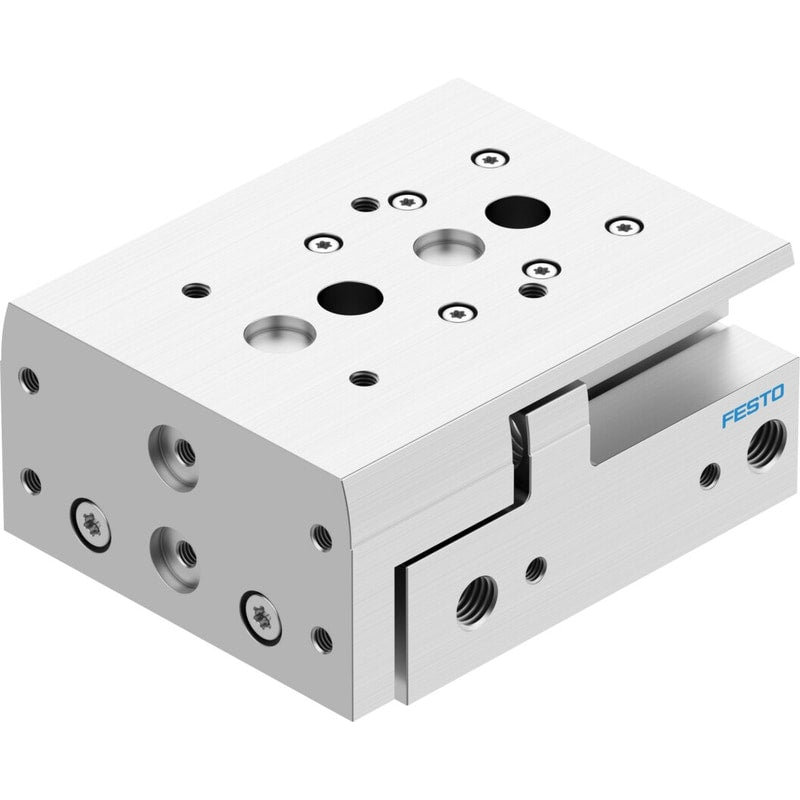

Mini slide
DGST-20-40-E1A
8078865
GTIN 4052568446963
Vendor Festo
- Piston diameter
- 20 mm
- Theoretical force at 6 bar, advancing
- 377 N
- Stroke
- 40 mm
- Cushioning
- Elastomer cushioning, at both ends, stroke not adjustable
- Position sensing
- For proximity sensor
Regular price
$525.74
Unit price
Mini slide DGST-20-40-E1A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DGST-20-40-E1A
Regular price
$525.74
Unit price
Mini slide DGST-20-40-E1A is backordered and will ship as soon as it is back in stock.
mini slide DGST-20-40-E1A Part number: 8078865
| Stroke | 40 mm |
|---|---|
| Piston diameter | 20 mm |
| Operating mode of drive unit | Yoke |
| Cushioning | Elastomer cushioning, at both ends, stroke not adjustable |
| Assembly position | Any |
| Guide | Ball bearing cage guide |
| Design structure | Yoke kinematics |
| Position detection | For proximity sensor |
| Operating pressure | 1 ... 8 bar |
| Max. speed | 0.5 m/s |
| Repetition accuracy | <= 0,3 mm |
| Mode of operation | double-acting |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
