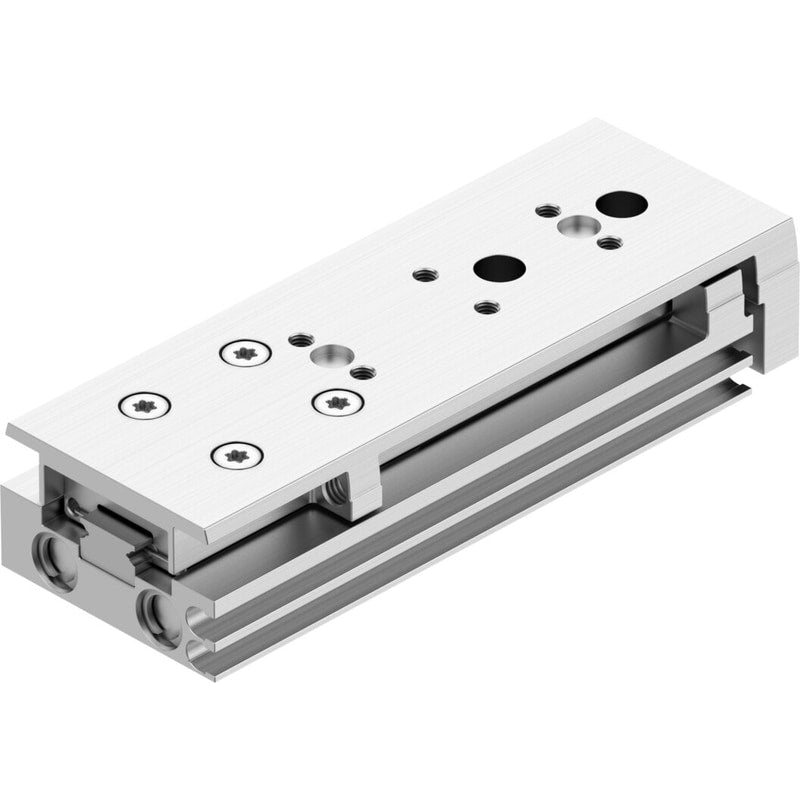

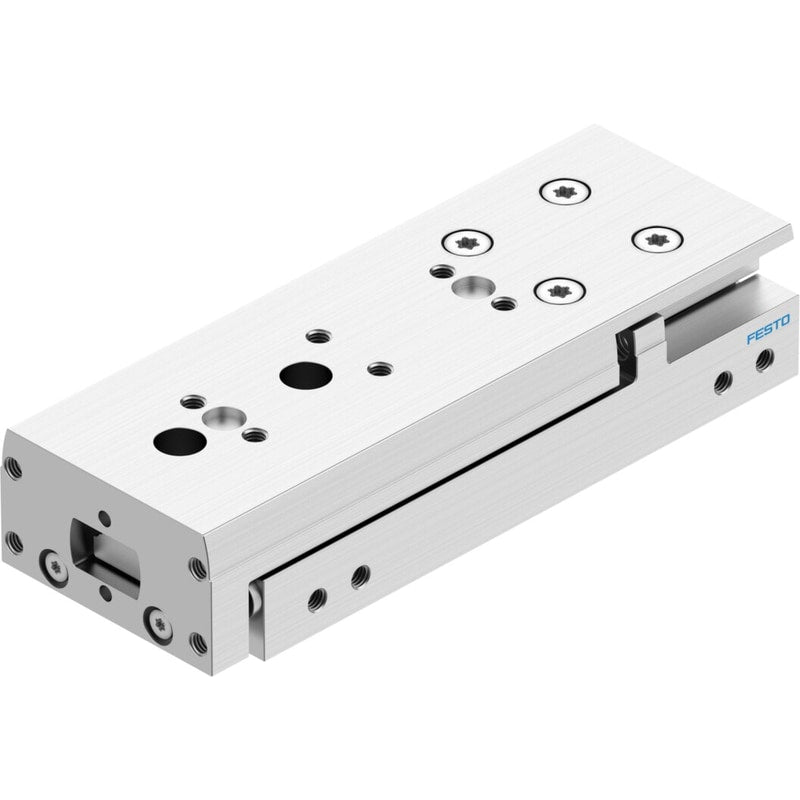

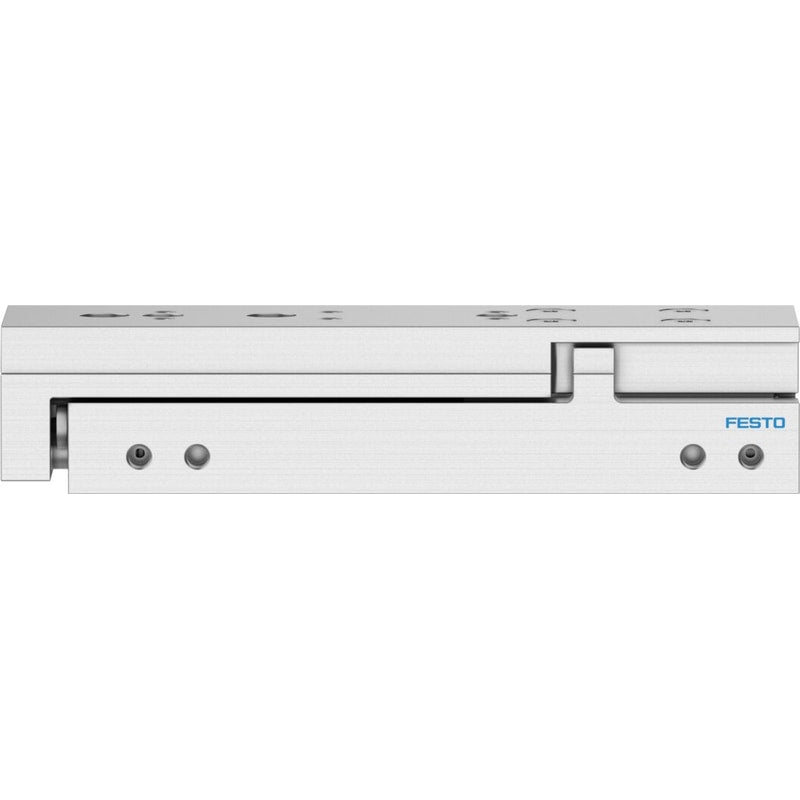

Mini slide
DGST-6-30-E1A
8078830
GTIN 4052568446611
Vendor Festo
- Piston diameter
- 6 mm
- Theoretical force at 6 bar, advancing
- 34 N
- Stroke
- 30 mm
- Cushioning
- Elastomer cushioning, at both ends, stroke not adjustable
- Position sensing
- For proximity sensor
Regular price
$318.48
Unit price
DGST-6-30-E1A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DGST-6-30-E1A
Regular price
$318.48
Unit price
DGST-6-30-E1A is backordered and will ship as soon as it is back in stock.
| Guide material | POMHigh-alloy steelTPE-E |
|---|---|
| Stroke | 30 mm |
| Piston diameter | 6 mm |
| Type code | DGST |
| Drive unit operating mode | Yoke |
| Cushioning | Elastomer cushioning, at both ends, stroke not adjustable |
| Mounting position | Any |
| Guide | Recirculating ball bearing guide |
| Design | Scotch yoke system |
| Position sensing | For proximity sensor |
| Symbol | 991249 |
| Operating pressure | 1.5 bar ... 8 bar |
| Max. speed | 0.5 m/s |
| Repetition accuracy | <= 0.3 mm |
| Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Ambient temperature | -10 °C ... 60 °C |
| Impact energy in the end positions | 0.005 J |
| Cushioning length | 0.9 mm |
| Max. force Fy | 240 N |
| Max. force Fz | 240 N |
| Max. torque My | 1.2 Nm |
| Max. torque Mz | 1.2 Nm |
| Theoretical force at 6 bar, retracting | 25 N |
| Theoretical force at 6 bar, advancing | 34 N |
| Moving mass | 65 g |
| Product weight | 124 g |
| Type of mounting | With through-hole |
| Pneumatic connection | M3 |
| Note on materials | Free of copper and PTFERoHS-compliant |
| Cover material | Wrought aluminum alloy |
| Seals material | HNBR |
| Housing material | Wrought aluminum alloy |
| Piston rod material | High-alloy stainless steel |
