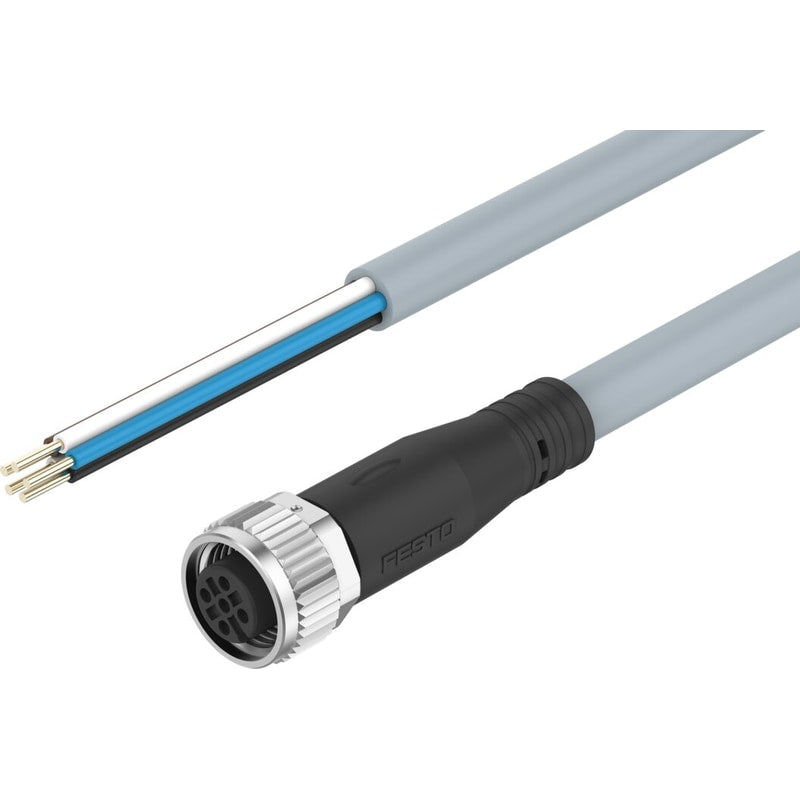

Connecting cable
NEBU-M12G5-E-5-Q8N-LE5
8078303
GTIN 4052568615406
Vendor Festo
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, connection technology
- M12x1 A-coded as per EN 61076-2-101
- Electrical connection 2, connection type
- Cable
- Electrical connection 2, connection technology
- Open end
- Cable length
- 5 m
Regular price
$86.22
Unit price
NEBU-M12G5-E-5-Q8N-LE5 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NEBU-M12G5-E-5-Q8N-LE5
Regular price
$86.22
Unit price
NEBU-M12G5-E-5-Q8N-LE5 is backordered and will ship as soon as it is back in stock.
| Conforms to standard | EN 61076-2-101 |
|---|---|
| Cable designation | Without label holder |
| Contact durability | 100 |
| Product weight | 422g |
| Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Round |
| Electrical connection 1, connection type | Socket |
| Electrical connection 1, cable outlet | Straight |
| Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 |
| Electrical connection 1, number of pins/wires | 5 |
| Electrical connection 1, occupied pins/wires | 5 |
| Electrical connection 1, type of mounting | Screw-type lock |
| Electrical connection for input 1, connection pattern | 00995384 |
| Electrical connection 2, function | Control side |
| Electrical connection 2, connection type | Cable |
| Electrical connection 2, connection technology | Open end |
| Electrical connection 2, number of pins/wires | 5 |
| Electrical connection 2, occupied pins/wires | 5 |
| DC operating voltage range | 0V |
| Operating voltage range AC | 0V |
| Current rating at 40° C | 4A |
| Surge resistance | 1.5kV |
| Cable length | 5m |
| Cable characteristic | Suitable for energy chains |
| Connector cable test conditions | Flexural strength: as per Festo standard |
| Bending radius, fixed cable installation | 21mm |
| Bending radius, flexible cable installation | 71mm |
| Cable diameter | 7mm |
| Cable diameter tolerance | ± 0.1 mm |
| Cable design | 5 x 1 mm² |
| Nominal conductor cross section | 1mm² |
| Wire ends | Stripped |
| Degree of protection | IP65 |
| Note on degree of protection | In mounted state |
| Special features | Oil-resistant |
| Ambient temperature | -25°C |
| Ambient temperature with flexible cable installation | -5°C |
| CE marking (see declaration of conformity) | As per EU low voltage directive |
| UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Note on materials | RoHS-compliant |
| Contamination level | 3 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Material of cable sheath | TPE-U(PUR) |
| Color cable sheath | Gray |
| Housing material | TPE-U(PUR) |
| Housing colour | Black |
| Material of screw-type lock | Brass, nickel-plated |
| Seals material | NBR |
| Material of pin contacts | Copper alloy, gold-plated |
| Insulating sheath material | PP |
