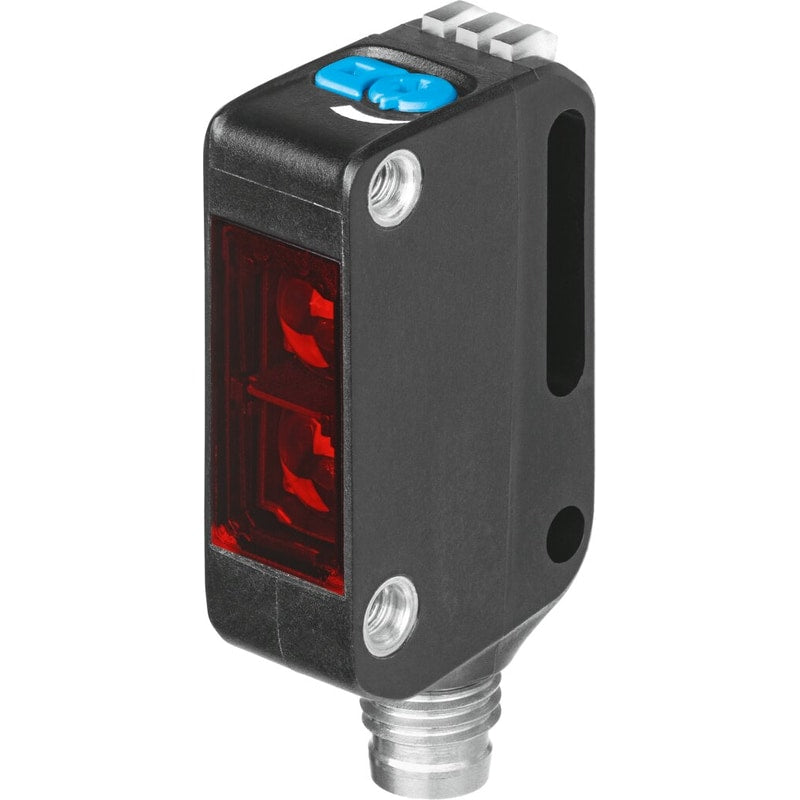

Retro-reflective sensor
SOOE-RS-R-PNLK-T
8075666
GTIN 4052568446383
Vendor Festo
- Idle current
- 25 mA
- Type of light
- Red - LED
- Working range
- 0 mm - 6500 mm
- Degree of protection
- IP65 - IP67 - IP69K
- Ambient temperature
- -40 °C - 60 °C
Regular price
$134.03
Unit price
SOOE-RS-R-PNLK-T is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SOOE-RS-R-PNLK-T
Regular price
$134.03
Unit price
SOOE-RS-R-PNLK-T is backordered and will ship as soon as it is back in stock.
| Type code | SOOE |
|---|---|
| Electrical connection 1, type of mounting | Screw-type lock |
| Certificate issuing authority | UL E232949 |

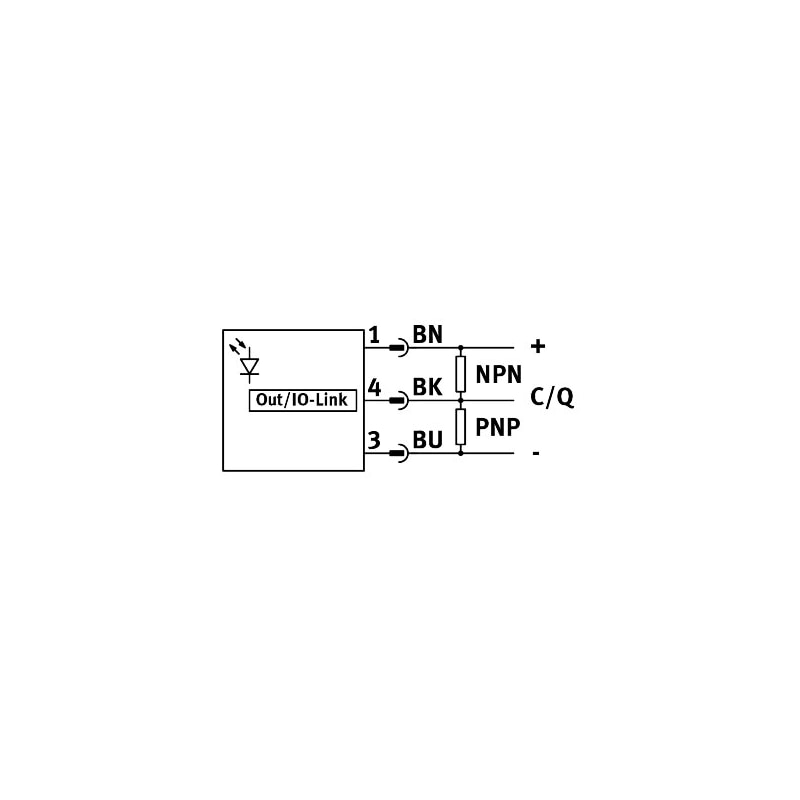

| Electrical connection 1, connection type | Plug |
| Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 |
| Electrical connection for input 1, connection pattern | 991155 |
| Detection method | Reflection light barrier |
| Electrical connection 1, number of pins/wires | 3 |
| Design | Block design |
| Conforms to standard | EN 60947-5-2 |
| Symbol | 995956 |
| Certification | c UL us - Listed (OL)RCM compliance mark |
| CE marking (see declaration of conformity) | As per EU EMC directiveAs per EU RoHS directive |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Measuring principle | Optoelectronic |
| Type of light | LEDRed |
| Max. light spot | 65 mm at 1000 mm |
| Working range | 0 mm ... 6500 mm |
| Ambient temperature | -40 °C ... 60 °C |
| Reference material | Reference reflector |
| Switching output | Push-pull |
| Switching element function | NPN, bright-switchingSwitchablePNP, dark-switching |
| Max. switching frequency | 1000 Hz |
| Voltage drop | 0 V ... 1.5 V |
| Timer function | Via IO-Link® |
| Short-circuit protection | Pulsed |
| Protocol | IO-Link® |
| IO-Link®, protocol version | Device V 1.1 |
| IO-Link®, communication mode | COM2 (38,4 kBd) |
| IO-Link®, SIO mode support | Yes |
| IO-Link®, port class | A |
| IO-Link®, process data width OUT | 2 bit |
| IO-Link®, process data content OUT | 1 bit (hold)1 bit (emitter disable) |
| IO-Link®, process data width IN | 2 bit |
| IO-Link®, process data content IN | 1 bit (stability alarm)1 bit SSC (switching signal) |
| IO-Link®, minimum cycle time | 2.3 ms |
| IO-Link®, data memory required | 2000 byte |
| DC operating voltage range | 10 V ... 30 V |
| Residual ripple | 0.1 |
| Idle current | 25 mA |
| Reverse polarity protection | for all electrical connections |
| Material of pin contacts | Brass, gold-plated |
| Type of mounting | With through-hole for M3 screw |
| Tightening torque | 0.8 Nm |
| Mounting position | Any |
| Product weight | 10 g |
| Housing material | PCPMMA |
| Ready status indication | LED green |
| Switching status indication | LED yellow |
| Function reserve indication | LED yellow, flashing |
| Setting options | IO-Link®Teach-inPotentiometer |
| Degree of protection | IP65IP67IP69K |
| Insulation voltage | 500 V |
| Surge resistance | 1 kV |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Contamination level | 3 |
