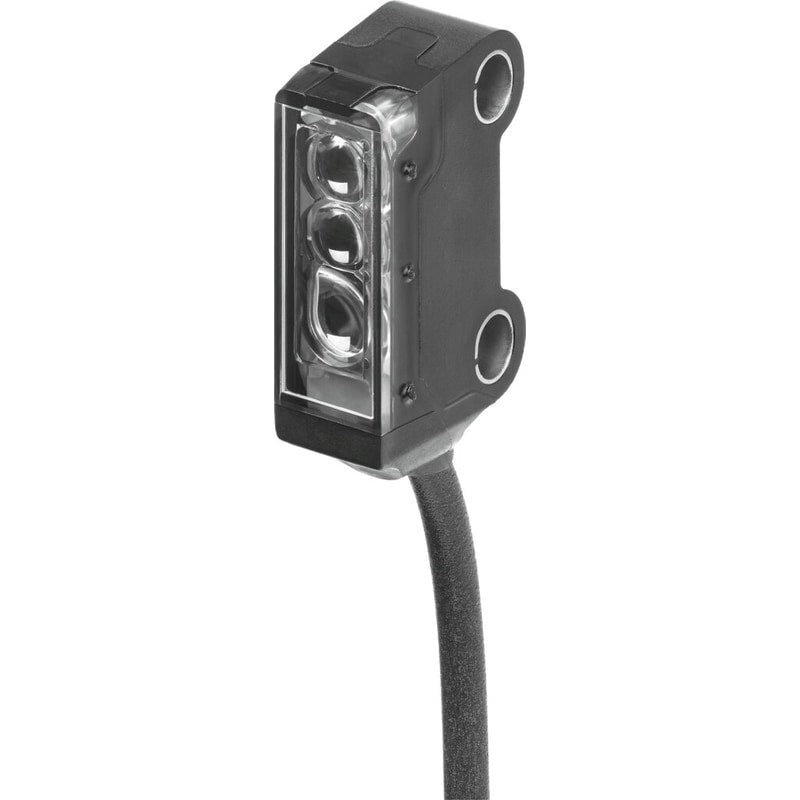

Retro-reflective sensor
SOOD-RS-L-PN
8075662
GTIN 4052568446345
Vendor Festo
- Idle current
- 10 mA
- Type of light
- Laser - Red
- Working range
- 0 mm - 2000 mm
- Degree of protection
- IP65 - IP67
- Ambient temperature
- -20 °C - 60 °C
Regular price
$236.93
Unit price
SOOD-RS-L-PN is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SOOD-RS-L-PN
Regular price
$236.93
Unit price
SOOD-RS-L-PN is backordered and will ship as soon as it is back in stock.
| Type code | SOOD |
|---|---|
| Electrical connection 1, type of mounting | Screw-type lock |
| Certificate issuing authority | UL E232949 |
| Electrical connection 1, connection type | Cable with plug |
| Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 |
| Electrical connection for input 1, connection pattern | 991155 |
| Detection method | Reflection light barrier |
| Electrical connection 1, number of pins/wires | 3 |
| Design | Block design |
| Conforms to standard | EN 60947-5-2 |
| Symbol | 995959 |
| Certification | RCM compliance markc UL us - Recognized (OL) |
| CE marking (see declaration of conformity) | As per EU EMC directiveAs per EU RoHS directive |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Measuring principle | Optoelectronic |
| Type of light | LaserRed |
| Max. light spot | 35 mm at 2000 mm |
| Working range | 0 mm ... 2000 mm |
| Ambient temperature | -20 °C ... 60 °C |
| Reference material | Reference reflector |
| Switching output | Push-pull |
| Switching element function | NPN, bright-switchingPNP, dark-switching |
| Max. switching frequency | 2000 Hz |
| Voltage drop | 0 V ... 1.5 V |
| Short-circuit protection | Pulsed |
| DC operating voltage range | 10 V ... 30 V |
| Residual ripple | 0.1 |
| Idle current | 10 mA |
| Reverse polarity protection | for all electrical connections |
| Material of pin contacts | Brass, gold-plated |
| Cable length | 0.15 m |
| Cable characteristic | Standard |
| Material of cable sheath | TPE-U(PUR) |
| Type of mounting | With through-hole |
| Tightening torque | 0.5 Nm |
| Mounting position | Any |
| Product weight | 10 g |
| Housing material | ABSPCTPE-U(PU) |
| Ready status indication | LED green |
| Switching status indication | LED yellow |
| Function reserve indication | LED yellow, flashing |
| Degree of protection | IP65IP67 |
| Insulation voltage | 500 V |
| Surge resistance | 1 kV |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Laser safety class | 1 |
| Contamination level | 3 |
