Diffuse scan

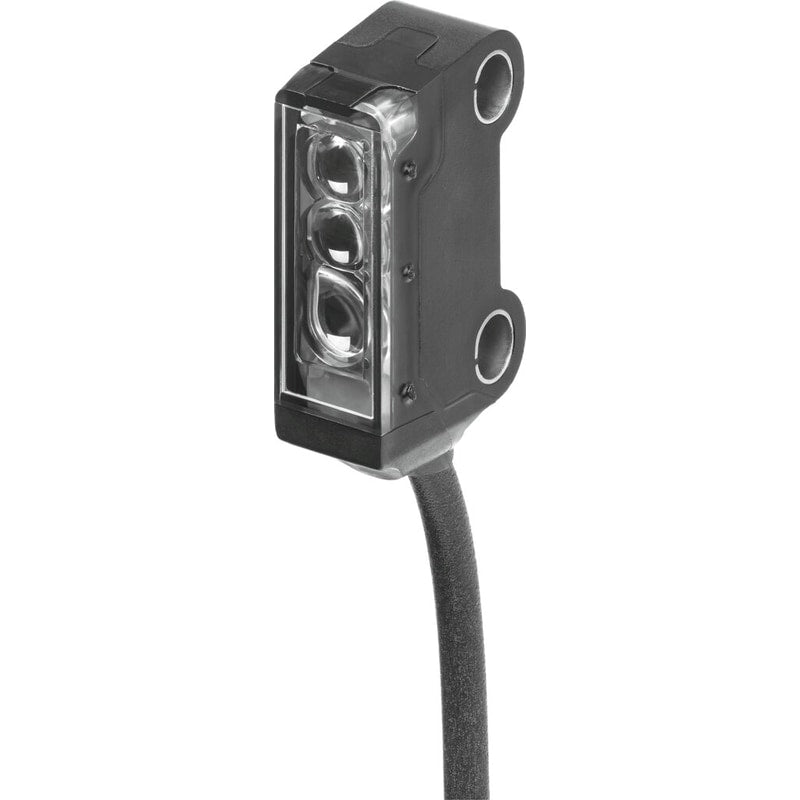

SOOD-BS-R-PN-30
8075653
GTIN 4052568446253
Vendor Festo
- Idle current
- 10 mA
- Type of light
- Red - LED
- Working range
- 1 mm - 30 mm
- Degree of protection
- IP65 - IP67
- Ambient temperature
- -25 °C - 60 °C
Regular price
$213.00
Unit price
SOOD-BS-R-PN-30 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SOOD-BS-R-PN-30
Regular price
$213.00
Unit price
SOOD-BS-R-PN-30 is backordered and will ship as soon as it is back in stock.
| Type code | SOOD |
|---|---|
| Electrical connection 1, type of mounting | Screw-type lock |
| Certificate issuing authority | UL E232949 |
| Electrical connection 1, connection type | Cable with plug |
| Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 |
| Electrical connection for input 1, connection pattern | 991155 |
| Detection method | Reflection light sensor with HGA |
| Electrical connection 1, number of pins/wires | 3 |
| Max. black-white difference | 0.07 |
| Design | Block design |
| Conforms to standard | EN 60947-5-2 |
| Symbol | 995959 |
| Certification | c UL us - Recognized (OL)RCM compliance mark |
| CE marking (see declaration of conformity) | As per EU EMC directiveAs per EU RoHS directive |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Measuring principle | Optoelectronic |
| Type of light | LEDRed |
| Max. light spot | 2 mm for scan width of 30 mm |
| Minimum object diameter | 2 mm |
| Working range | 1 mm ... 30 mm |
| Ambient temperature | -25 °C ... 60 °C |
| Reference material | Standard white 90%, 100x100 mm |
| Switching output | Push-pull |
| Hysteresis | 0.3 mm |
| Max. switching frequency | 800 Hz |
| Max. output current | 50 mA |
| Voltage drop | 0 V ... 1.5 V |
| Short-circuit protection | Pulsed |
| DC operating voltage range | 10 V ... 30 V |
| Residual ripple | 0.1 |
| Idle current | 10 mA |
| Reverse polarity protection | for all electrical connections |
| Material of pin contacts | Brass, gold-plated |
| Cable length | 0.15 m |
| Cable characteristic | Standard |
| Material of cable sheath | TPE-U(PUR) |
| Type of mounting | With through-hole |
| Tightening torque | 0.5 Nm |
| Mounting position | Any |
| Product weight | 10 g |
| Housing material | ABSPCTPE-U(PU) |
| Ready status indication | LED green |
| Switching status indication | LED yellow |
| Degree of protection | IP65IP67 |
| Insulation voltage | 500 V |
| Surge resistance | 1 kV |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Contamination level | 3 |
