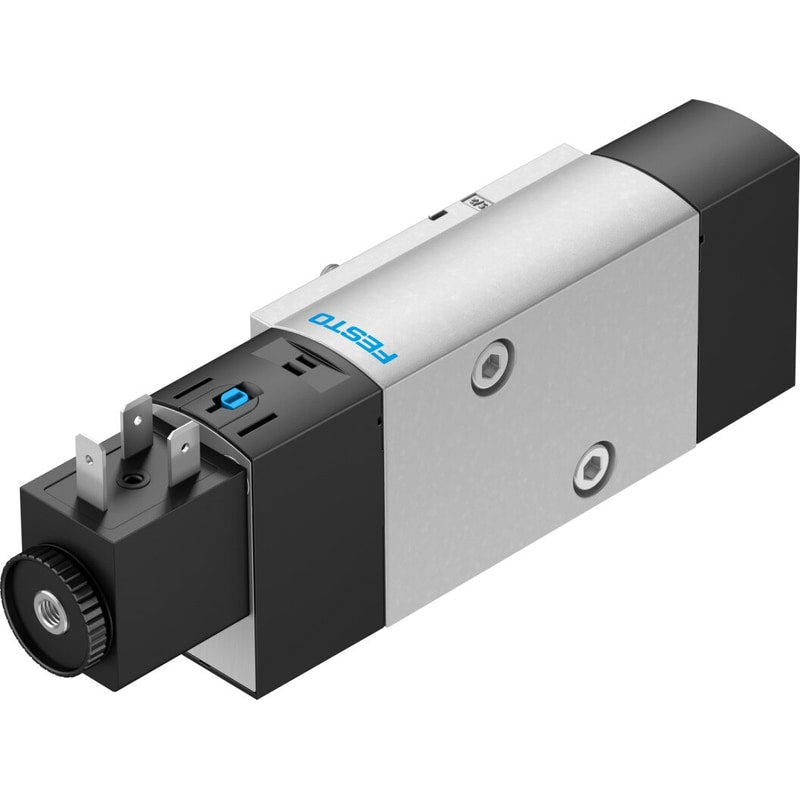

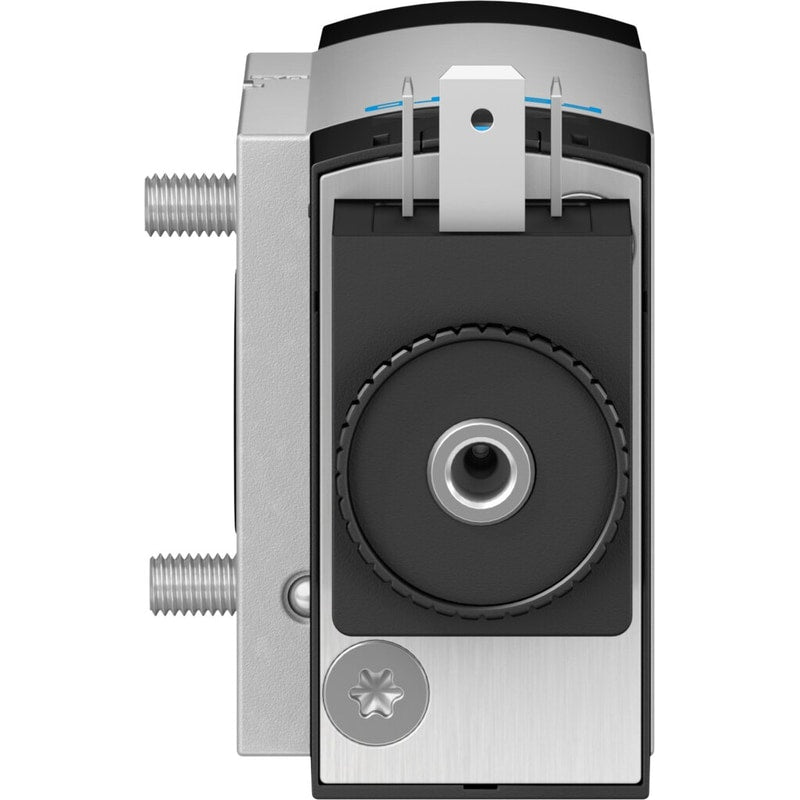

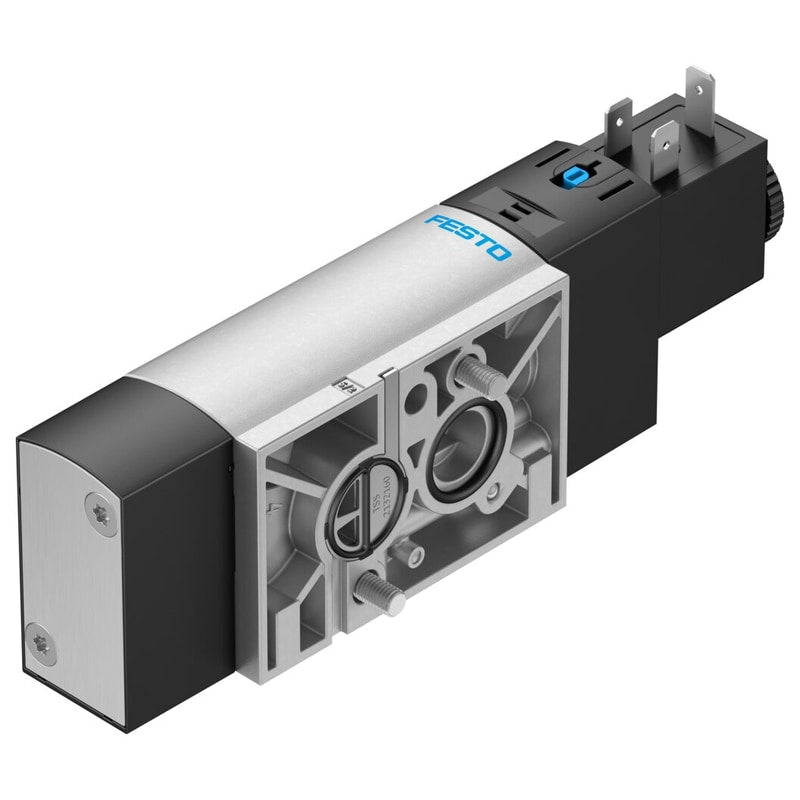

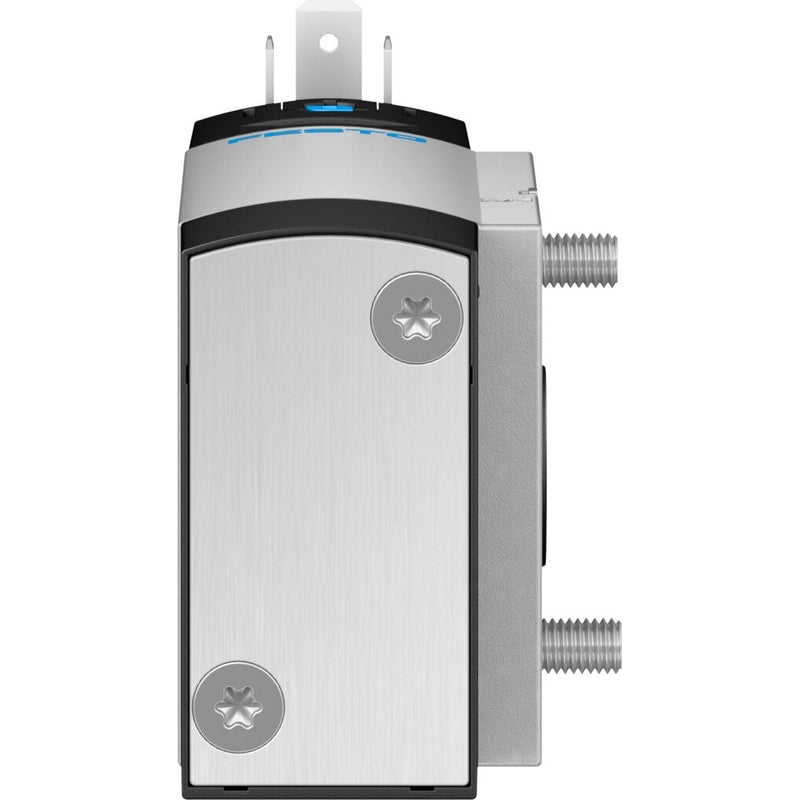

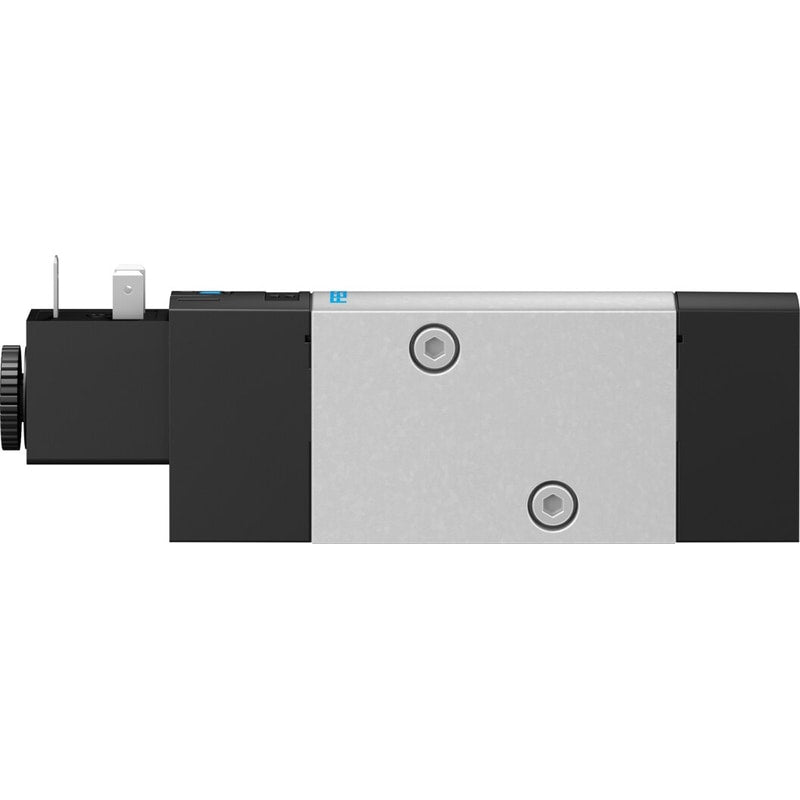

Air solenoid valve
VSNC-FC-M52-MD-G14-F8-1A1
8074945
GTIN 4052568298272
Vendor Festo
- Structural design
- Piston gate valve
- Valve function
- 5/2 or 3/2 switchable
- Normal nominal flow rate (normalized to DIN 1343)
- 1250 l/min
- Operating pressure
- 2.5 bar - 10 bar
Regular price
$138.53
Unit price
VSNC-FC-M52-MD-G14-F8-1A1 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VSNC-FC-M52-MD-G14-F8-1A1
Regular price
$138.53
Unit price
VSNC-FC-M52-MD-G14-F8-1A1 is backordered and will ship as soon as it is back in stock.
| Valve function | 5/2 or 3/2 switchable |
|---|---|
| Lap | Overlap |
| Actuation type | Electrical |
| Width | 32 mm |
| Standard nominal flow rate | 1250 l/min |
| Pneumatic working port | NAMUR connection diagram |
| Operating voltage | 24V DC |
| Operating pressure | 2.5 bar ... 10 bar |
| Design | Piston gate valve |
| Reset method | Mechanical spring |
| Degree of protection | IP67IP65as per IEC 60529With plug socket |
| Certification | c UL us - Recognized (OL) |
| Type code | VSNC |
| Exhaust air function | With flow control option |
| Sealing principle | Soft |
| Mounting position | Any |
| Conforms to standard | VDI/VDE 3845 (NAMUR) |
| Manual override | Non-detentingDetenting |
| Type of control | Pilot-controlled |
| Pilot air supply port | Internal |
| Flow direction | Non-reversible |

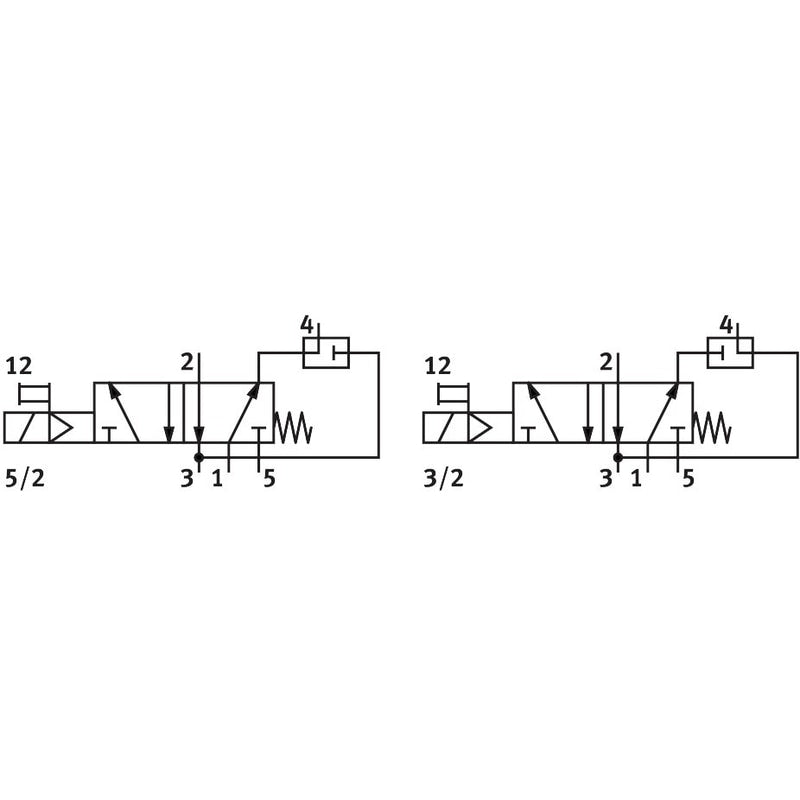

| Symbol | 991831 |
| Signal status display | With accessories |
| C value | 5.2 l/sbar |
| Standard nominal flow rate, exhaust air return 4->3 | 110 l/min |
| Switching time off | 48 ms |
| On switching time | 11 ms |
| Duty cycle | 1 |
| Coil characteristics | 24 V DC: 2.6 W |
| Permissible voltage fluctuations | +/- 10 % |
| Certificate issuing authority | DNVGL-TAA000011J |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Temperature of medium | -20 °C ... 60 °C |
| Ambient temperature | -20 °C ... 60 °C |
| Product weight | 335 g |
| Electrical connection | as per EN 175301-803Form A |
| Type of mounting | With through-hole |
| Venting hole connection | Not ducted |
| Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | NAMUR connection diagram |
| Pneumatic connection 3 | G1/4 |
| Pneumatic connection 4 | NAMUR connection diagram |
| Pneumatic connection 5 | G1/4 |
| Note on materials | RoHS-compliant |
| Seals material | NBR |
| Housing material | Wrought aluminum alloy |
| Material of screws | High-alloy stainless steel |
