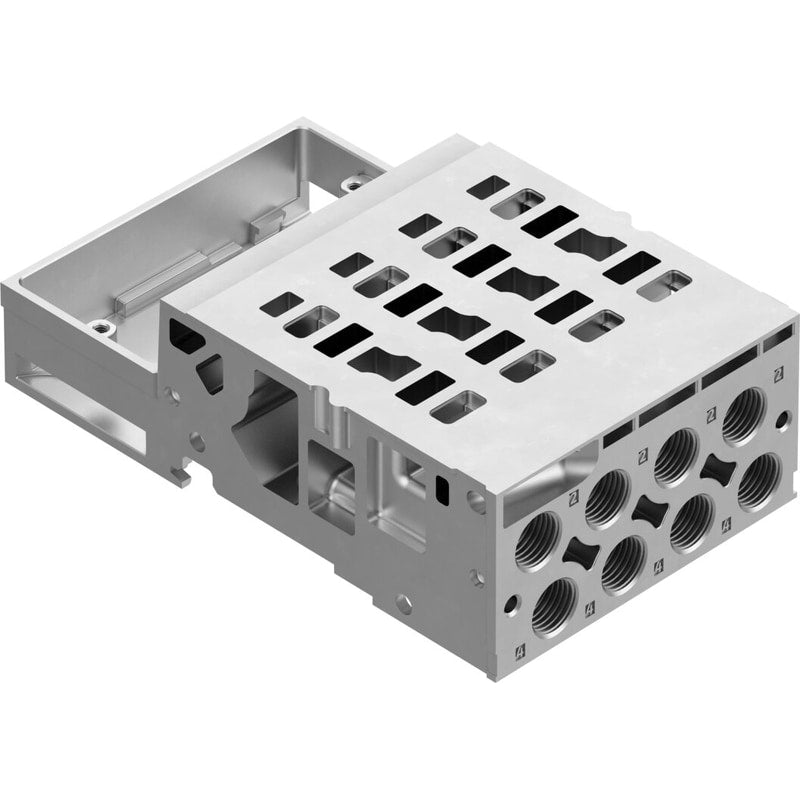

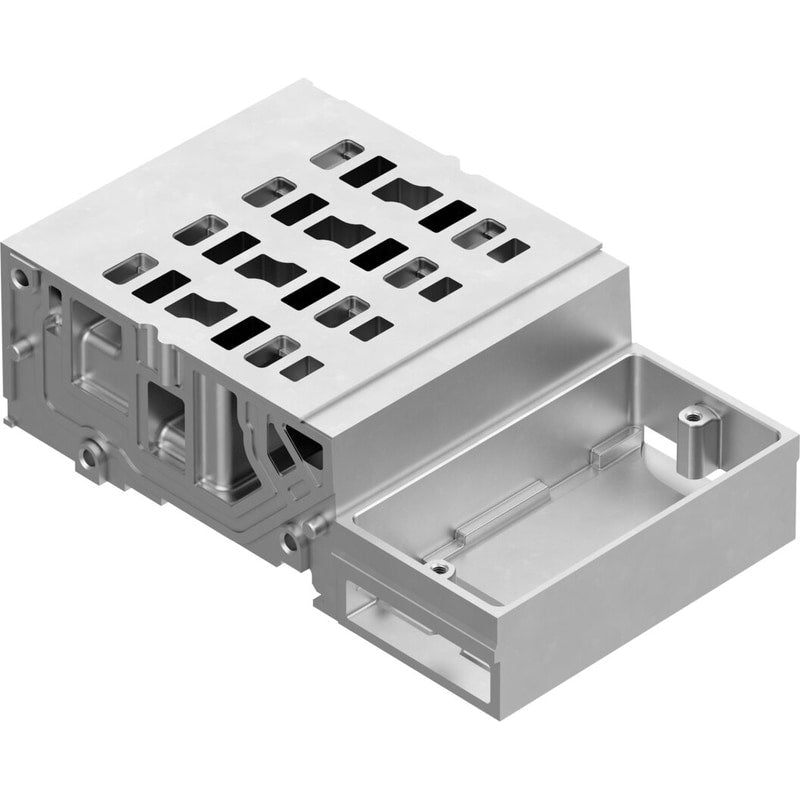

Sub-base
VMPA14-FB-AP-4-1
8074666
GTIN 4052568446208
Vendor Festo
Regular price
$82.59
Unit price
VMPA14-FB-AP-4-1 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VMPA14-FB-AP-4-1
Regular price
$82.59
Unit price
VMPA14-FB-AP-4-1 is backordered and will ship as soon as it is back in stock.
| Width | 65.5 mm |
|---|---|
| Length | 107.3 mm |
| Width dimension | 14.8 mm14.9 mm |
| Type code | VPMA14 |
| Max. no. of valve positions | 4 |
| Operating pressure | -0.9 bar ... 10 bar |
| Pilot pressure | 3 bar ... 8 bar |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Ambient temperature | -5 °C ... 50 °C |
| Product weight | 250 g |
| Pneumatic connection 2 | M7G1/8 |
| Pneumatic connection 4 | G1/8M7 |
| Note on materials | RoHS-compliant |
| Material of sub-base | Die-cast aluminum |
