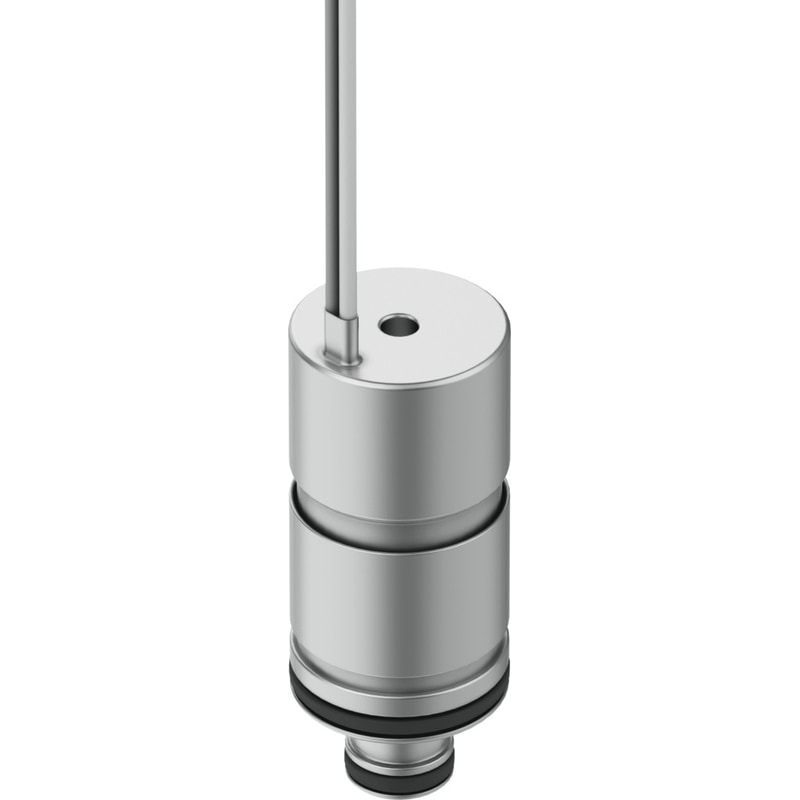

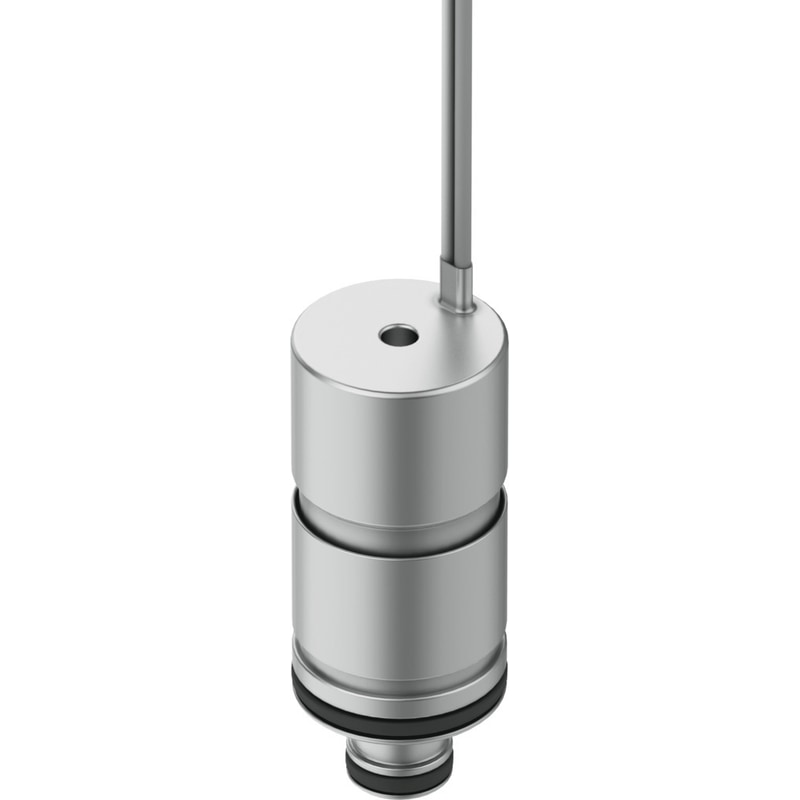

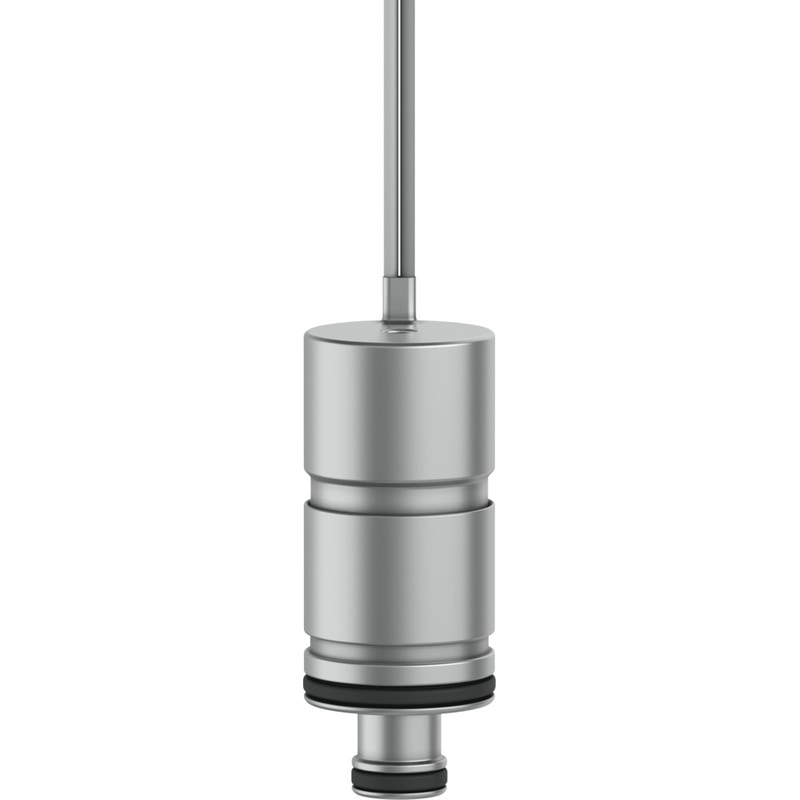

Proportional directional control valve
VPWS-6-B-6-PC15-3-V
8074537
GTIN 4052568566890
Vendor Festo
- Valve function
- 2/2 proportional directional control valve, closed
- Pneumatic connection 1
- Cartridge 7.5 mm
- Standard flow rate (standardized according to DIN 1343)
- 200 l/min - 230 l/min
Regular price
$298.66
Unit price
VPWS-6-B-6-PC15-3-V is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VPWS-6-B-6-PC15-3-V
Regular price
$298.66
Unit price
VPWS-6-B-6-PC15-3-V is backordered and will ship as soon as it is back in stock.
| Nominal width | 6 mm |
|---|---|
| Actuation type | Electrical |
| Sealing principle | Soft |
| Mounting position | Any |
| Structural design | Directly controlled poppet valve |
| Reset method | Mechanical spring |
| Type of control | Direct |
| Flow direction | Non-reversible |
| Symbol | 00995953 |
| Valve function | 2/2 proportional directional control valve, closed |
| Operating pressure | 0 bar ... 3 bar |
| Nominal operating pressure | 2 bar |
| Standard flow rate | 200 l/min ... 220 l/min |
| Hysteresis | 22.5 mA |
| Current regulating range | 0 mA ... 225 mA |
| Max. electrical power consumption | 3 W |
| Coil resistance | 60.5 Ohm |
| Duty cycle | 100% (operating current < 120 mA) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Medium | Inert gas Air Oxygen |
| Information on medium | Operation with oil lubrication not possible Maximum particle size 10 µm |
| Temperature of medium | 5 °C ... 50 °C |
| Degree of protection | IP60 |
| Note on degree of protection | IP65 with suitable plug In mounted state |
| Ambient temperature | 5 °C ... 50 °C |
| Storage temperature | -40 °C ... 80 °C |
| Product weight | 25 g |
| Electrical connection 1, connection type | Cable |
| Electrical connection 1, connection technology | Open end |
| Electrical connection 1, number of pins/wires | 2 |
| Cable length | 0.07 m ... 0.08 m |
| Type of mounting | On sub-base Plug-in With accessories |
| Pneumatic connection 1 | Cartridge 7.5 mm |
| Pneumatic connection 2 | Cartridge 15 mm |
| Note on materials | Contains paint-wetting impairment substances RoHS-compliant |
| Seals material | FPM |
| Housing material | High-alloy steel |
