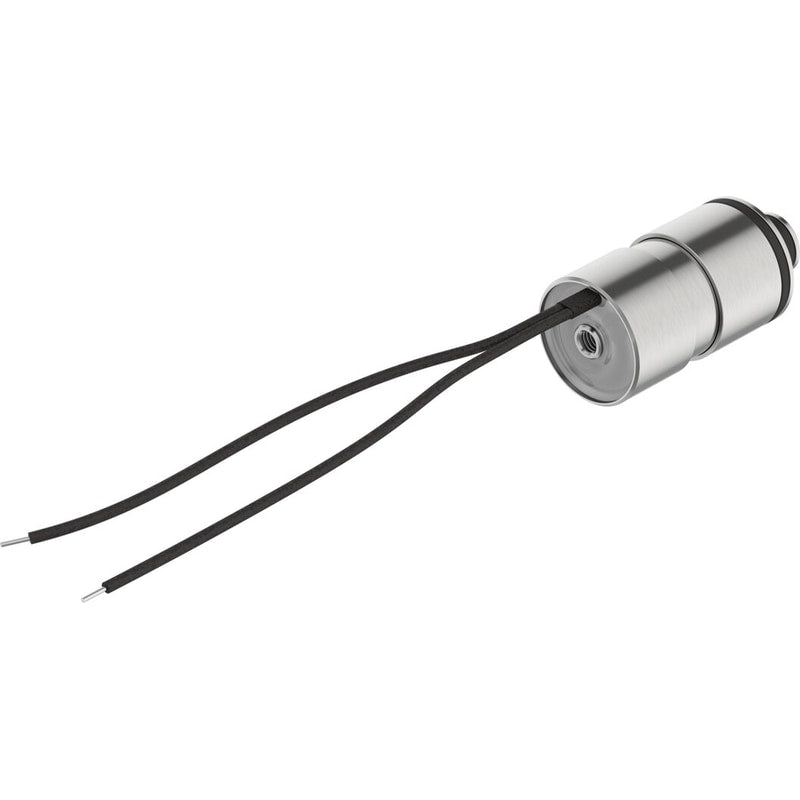

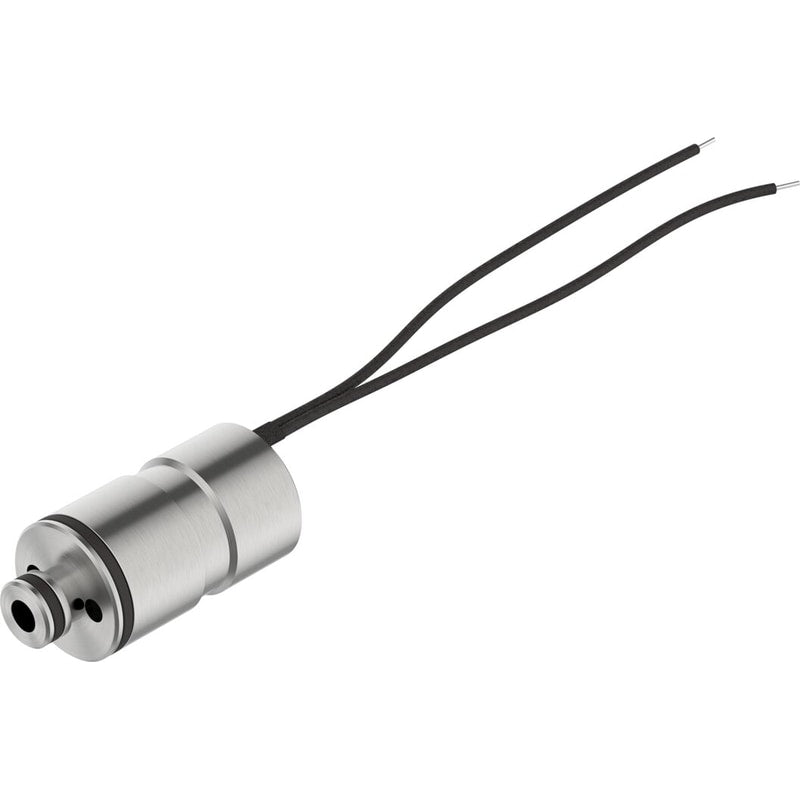

Proportional directional control valve
VPWS-1.5-B-6-PC15-8-V
8074075
GTIN 4052568457891
Vendor Festo
- Valve function
- 2/2 proportional directional control valve, closed
- Pneumatic connection 1
- Cartridge 15 mm
- Standard flow rate (standardized according to DIN 1343)
- 82 l/min - 98 l/min
Regular price
$199.10
Unit price
VPWS-1.5-B-6-PC15-8-V is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VPWS-1.5-B-6-PC15-8-V
Regular price
$199.10
Unit price
VPWS-1.5-B-6-PC15-8-V is backordered and will ship as soon as it is back in stock.
| Nominal width | 1.5 mm |
|---|---|
| Note on degree of protection | IP65 with suitable plugIn mounted state |
| Duty cycle | 100% (operating current < 155 mA) |
| Electrical connection 1, connection type | Cable |
| Medium | Inert gasAirOxygen |
| Information on medium | Operation with oil lubrication not possibleMaximum particle size 10 µm |
| Electrical connection 1, connection technology | Open end |
| Coil resistance | 60.5 Ohm |
| Max. electrical power consumption | 2.5 W |
| Hysteresis | 16 mA |
| Storage temperature | -40 °C ... 80 °C |
| Electrical connection 1, number of pins/wires | 2 |
| Current regulating range | 0 mA ... 200 mA |
| Standard flow rate | 82 l/min ... 98 l/min |
| Type code | VPWS |
| Actuation type | Electrical |
| Sealing principle | Soft |
| Mounting position | Any |
| Design | Directly controlled poppet valve |
| Reset method | Mechanical spring |
| Type of control | Direct |
| Flow direction | Non-reversible |
| Symbol | 00995954 |
| Valve function | 2/2 proportional directional control valve, closed |
| Operating pressure | 0 bar ... 8 bar |
| Nominal operating pressure | 8 bar |
| Max. switching frequency | 18 Hz |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Temperature of medium | 5 °C ... 50 °C |
| Degree of protection | IP60 |
| Ambient temperature | 5 °C ... 50 °C |
| Product weight | 23 g |
| Cable length | 0.07 m ... 0.08 m |
| Type of mounting | On sub-basePlug-inWith accessories |
| Pneumatic connection 1 | Cartridge 15 mm |
| Pneumatic connection 2 | Cartridge 7.2 mm |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Seals material | FPM |
| Housing material | High-alloy steel |
