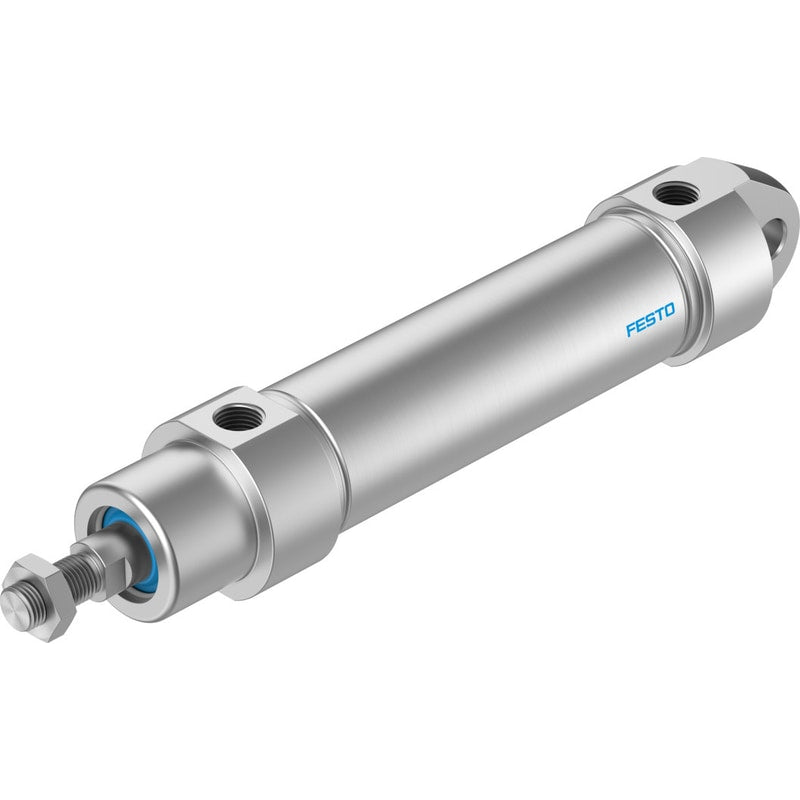

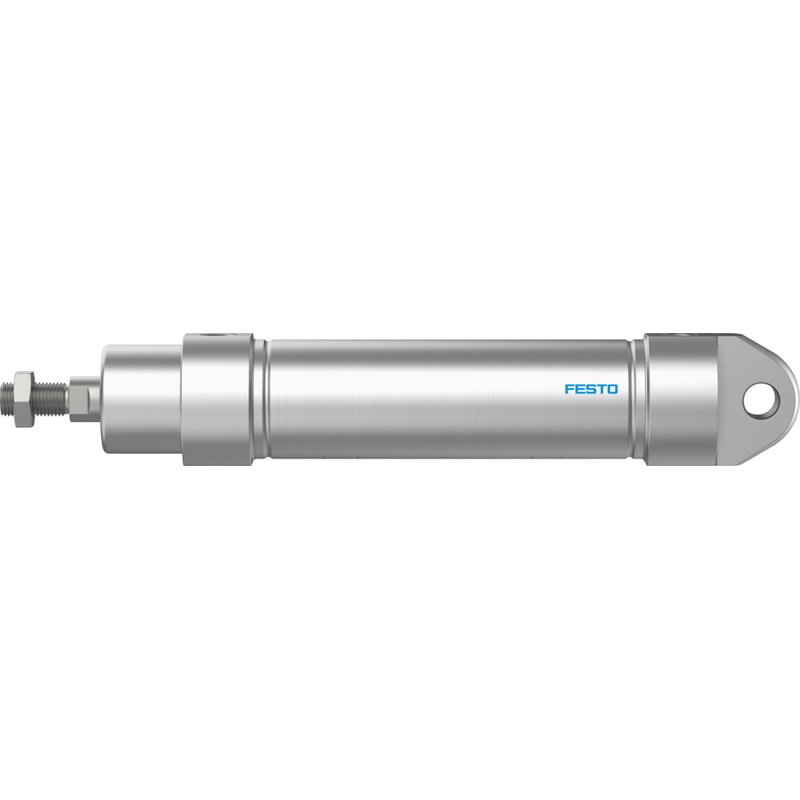

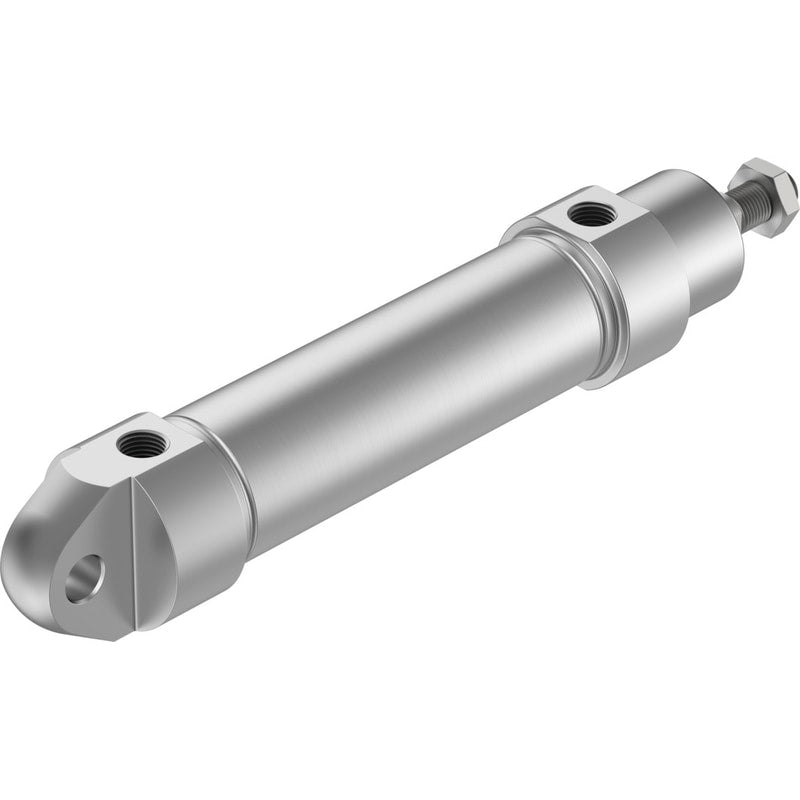

Round cylinder
CRDSNU-B-40-40-PPS-A-MG-A1
8073987
GTIN 4052568298234
Vendor Festo
- Mode of operation
- Double-acting
- Piston diameter
- 40 mm
- Theoretical force at 6 bar, advancing
- 754 N
- Stroke
- 40 mm
- Cushioning
- Self-adjusting pneumatic end-position cushioning
Regular price
$314.84
Unit price
Round cylinder CRDSNU-B-40-40-PPS-A-MG-A1 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CRDSNU-B-40-40-PPS-A-MG-A1
Regular price
$314.84
Unit price
Round cylinder CRDSNU-B-40-40-PPS-A-MG-A1 is backordered and will ship as soon as it is back in stock.
round cylinder CRDSNU-B-40-40-PPS-A-MG-A1 Part number: 8073987
| Stroke | 125 mm |
|---|---|
| Piston diameter | 40 mm |
| Based on the standard | ISO 15552 |
| Cushioning | PPS: Self-adjusting pneumatic end-position cushioning |
| Assembly position | Any |
| Design structure | PistonPiston rodCylinder barrel |
| Position detection | For proximity sensor |
| Operating pressure | 1 ... 10 bar |
| Mode of operation | double-acting |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRC | 4 - Very high corrosion stress |
| Food-safe | See Supplementary material information |
