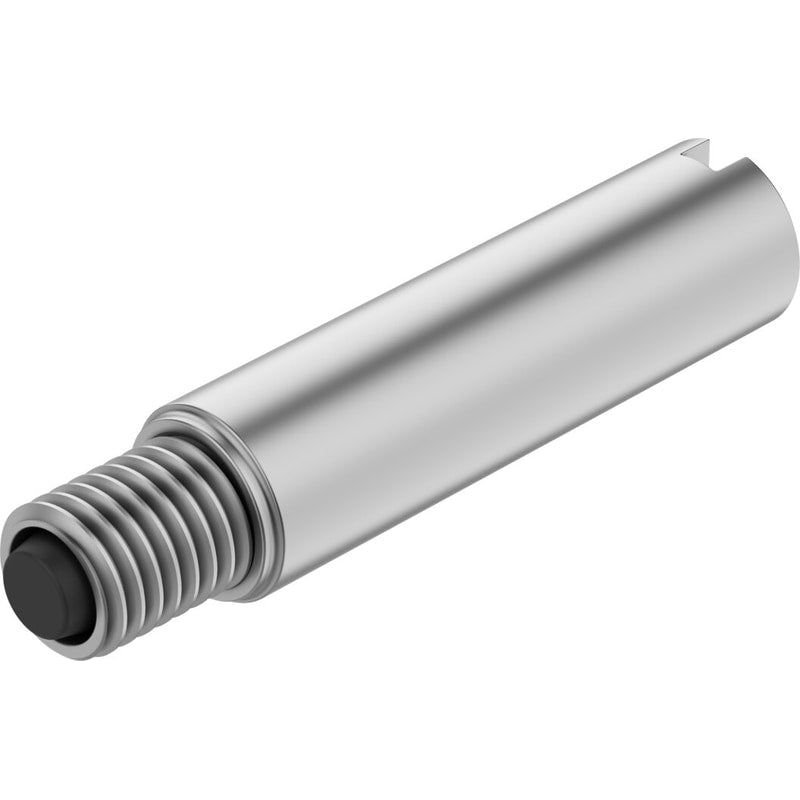

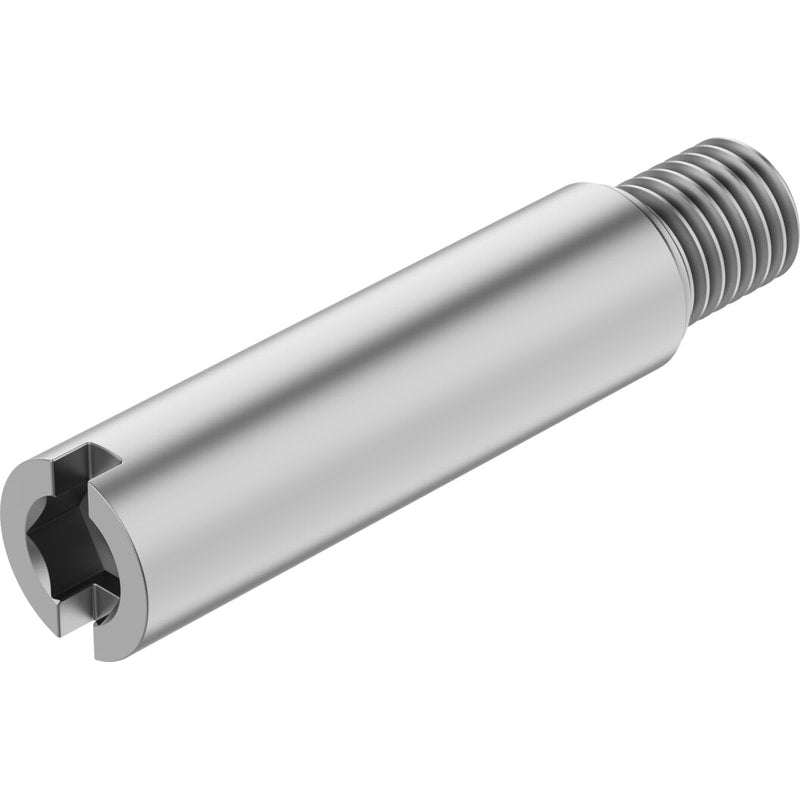

Shock absorber
DYEF-G8-M14-Y1
8073908
GTIN 4052568446109
Vendor Festo
Regular price
$26.72
Unit price
DYEF-G8-M14-Y1 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DYEF-G8-M14-Y1
Regular price
$26.72
Unit price
DYEF-G8-M14-Y1 is backordered and will ship as soon as it is back in stock.
| Size | M14 |
|---|---|
| Max. tightening torque | 8 Nm |
| Stroke | 1.2 mm |
| Type code | DYEF |
| Cushioning | Elastic cushioning rings/pads at both ends, without fixed metal stop |
| Mounting position | Any |
| Position sensing | None |
| Max. impact velocity | 0.8 m/s |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Ambient temperature | -10 °C ... 60 °C |
| Cushioning length | 1.2 mm |
| Max. energy absorption per stroke | 0.45 J |
| Product weight | 136.5 g |
| Type of mounting | With threaded sleeve |
| Note on materials | Free of copper and PTFERoHS-compliant |
| Seals material | NBR |
| Housing material | High-alloy steel |
