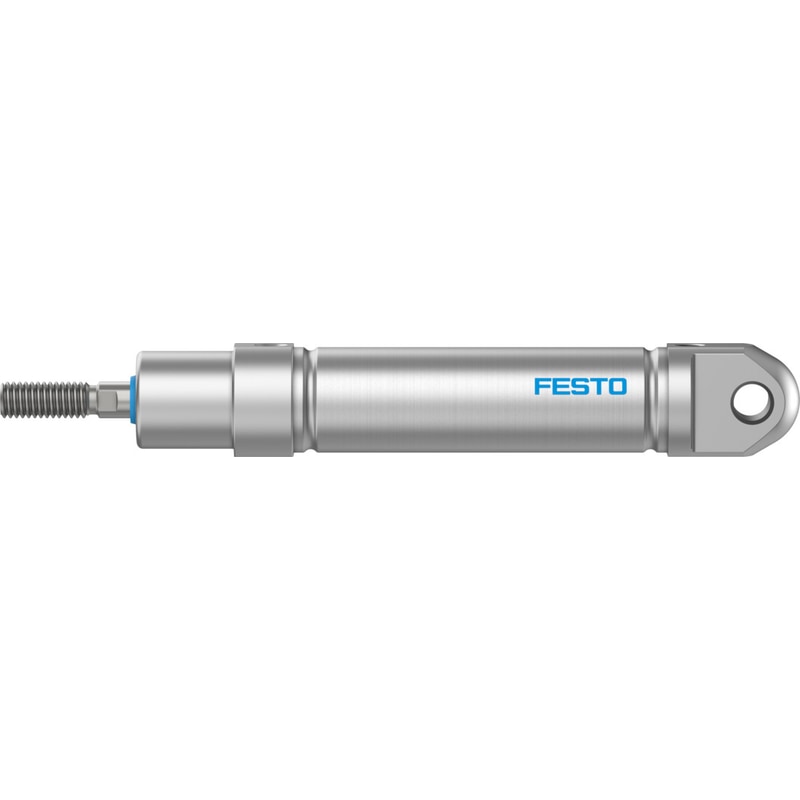

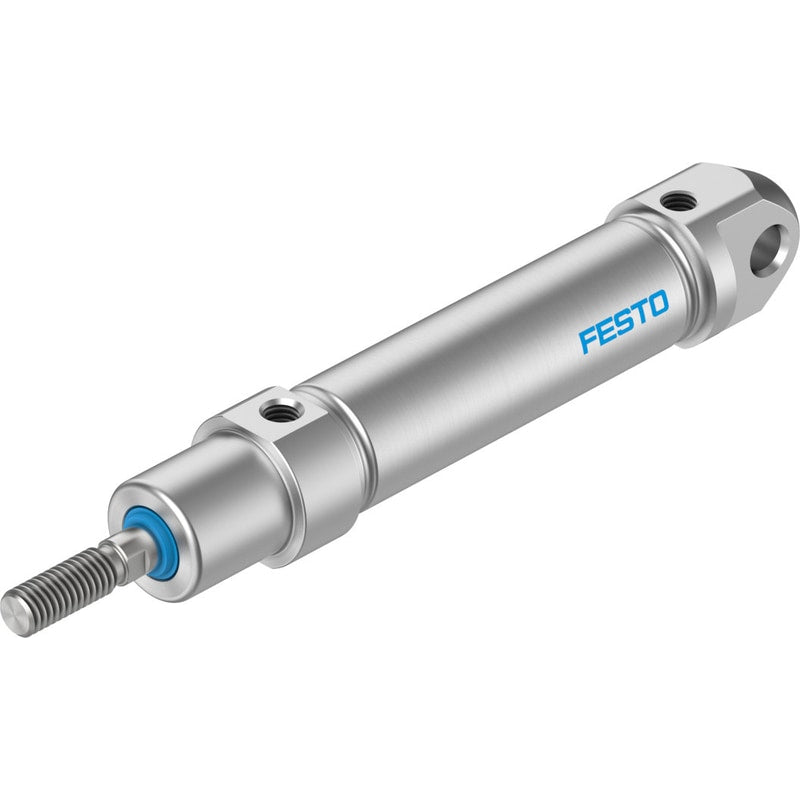

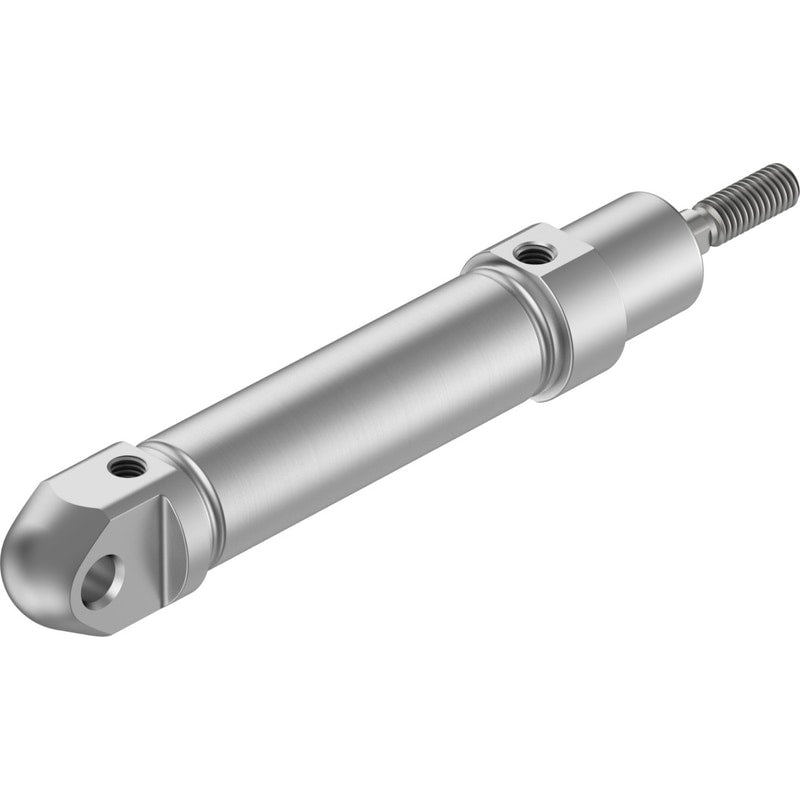

ISO cylinder
CRDSNU-B-16-25-P-A-MG-A1
8073760
GTIN 4052568298005
Vendor Festo
- Mode of operation
- Double-acting
- Piston diameter
- 16 mm
- Theoretical force at 6 bar, advancing
- 121 N
- Stroke
- 25 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
Regular price
$157.93
Unit price
ISO cylinder CRDSNU-B-16-25-P-A-MG-A1 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CRDSNU-B-16-25-P-A-MG-A1
Regular price
$157.93
Unit price
ISO cylinder CRDSNU-B-16-25-P-A-MG-A1 is backordered and will ship as soon as it is back in stock.
ISO cylinder CRDSNU-B-16-25-P-A-MG-A1 Part number: 8073760
| Stroke | 25 mm |
|---|---|
| Piston diameter | 16 mm |
| Based on the standard | ISO 6432 |
| Cushioning | P: Flexible cushioning rings/plates at both ends |
| Assembly position | Any |
| Design structure | PistonPiston rodCylinder barrel |
| Position detection | For proximity sensor |
| Operating pressure | 1 ... 10 bar |
| Mode of operation | double-acting |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRC | 4 - Very high corrosion stress |
| Food-safe | See Supplementary material information |
