Proximity sensors

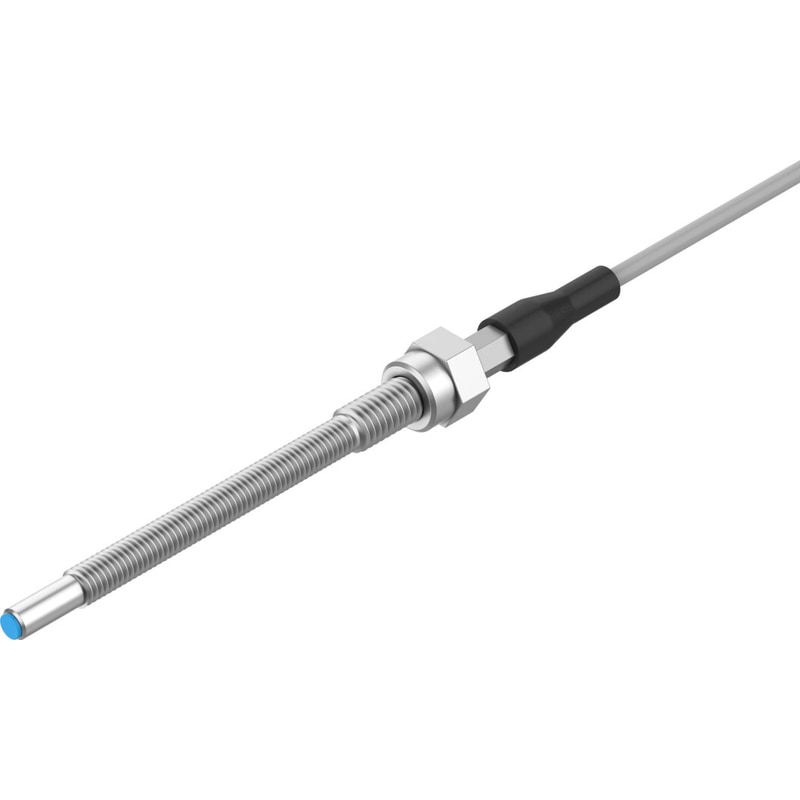

DADG-D-F8-40
8072859
GTIN 4052568454722
Vendor Festo
Regular price
$202.25
Unit price
DADG-D-F8-40 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DADG-D-F8-40
Regular price
$202.25
Unit price
DADG-D-F8-40 is backordered and will ship as soon as it is back in stock.
| Type code | DADG |
|---|---|
| Electrical connection 1, connection technology | Open end |
| Electrical connection 1, connection type | Cable |
| Electrical connection 1, number of pins/wires | 3 |
| Conforms to standard | EN 60947-5-2 |
| Symbol | 00991702 |
| Certification | RCM compliance markc UL us (OL) |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Rated operating distance | 0.6 mm |
| Assured operating distance | 0.64 mm |
| Reduction factors | Aluminum = 0.55Stainless steel St 18/8 = 0.8Copper = 0.5Brass = 0.65Steel St 37 = 1.0 |
| Ambient temperature | -25 °C ... 70 °C |
| Repetition accuracy | 0.01 mm |
| Switching output | PNP |
| Switching element function | N/O contact |
| Max. switching frequency | 5000 Hz |
| Max. switching frequency DC | 5000 Hz |
| Max. output current | 100 mA |
| Voltage drop | 2 V |
| Short-circuit protection | Pulsed |
| DC operating voltage range | 10 V ... 30 V |
| Residual ripple | 10 % |
| Idle current | ≤ 10 mA |
| Reverse polarity protection | for all electrical connections |
| Cable length | 2 m |
| Material of cable sheath | TPE-U(PUR) |
| Size | M4 |
| Type of mounting | Screwed tightly |
| Mounting type | Flush |
| Product weight | 32 g |
| Housing material | Steel |
| Degree of protection | IP67 |
