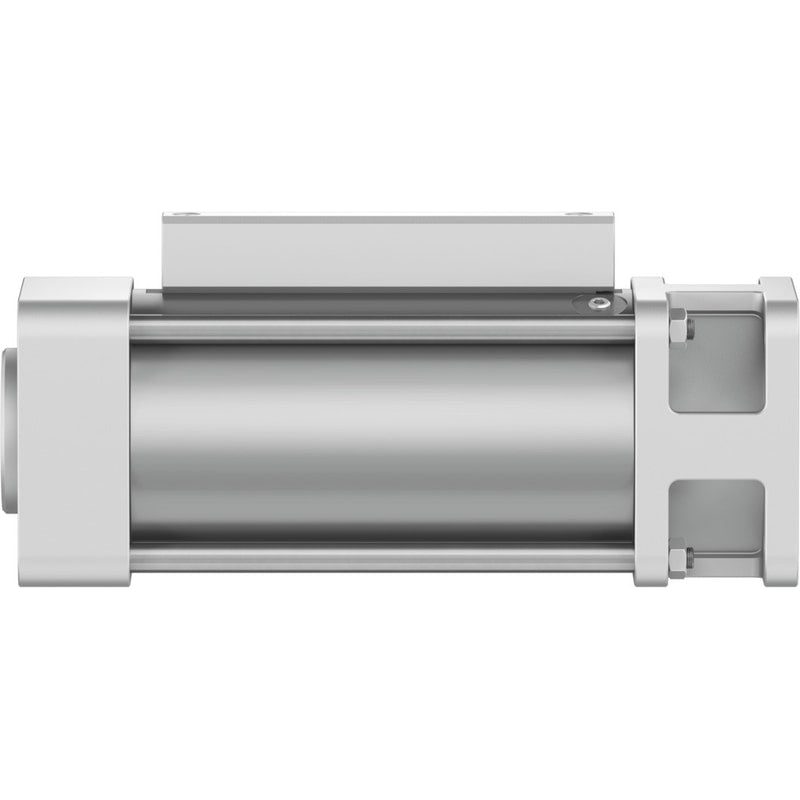

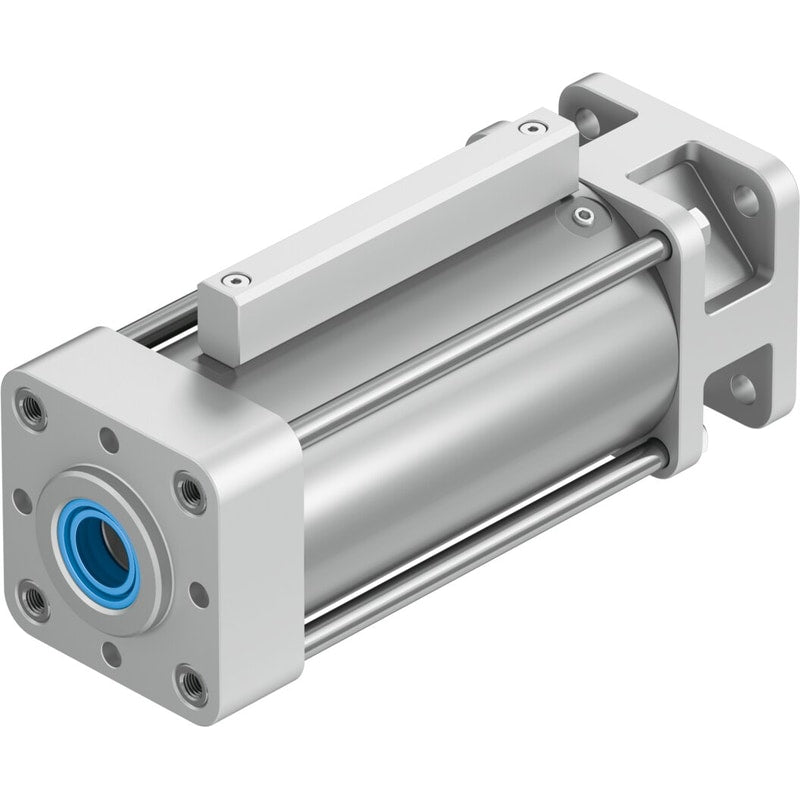

Holding brake
DACS-20-A-R3-S
8072775
GTIN 4052568454593
Vendor Festo
Regular price
$4,020.86
Unit price
DACS-20-A-R3-S is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DACS-20-A-R3-S
Regular price
$4,020.86
Unit price
DACS-20-A-R3-S is backordered and will ship as soon as it is back in stock.
| Type code | DACS |
|---|---|
| Position sensing | For proximity sensor |
| Mounting position | Any |
| Clamping type with active direction | Both sidesClamped by spring, released by compressed air |
| Symbol | 00992086 |
| Safety function | Holding and stopping a movement |
| Performance Level (PL) | Stopping, holding, blocking of movement/Category 1, Performance Level c |
| Operating pressure | 3.8 bar ... 8 bar |
| Max. permissible test pressure | 8 bar |
| Min. release pressure | 3.8 bar |
| Round material to be clamped | 20 mm |
| Certificate issuing authority | TÜV CA 697 |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| CE marking (see declaration of conformity) | as per EU machinery directive |
| Corrosion resistance class (CRC) | 3 - High corrosion stress |
| Ambient temperature | -20 °C ... 80 °C |
| Certification | German Technical Control Board (TÜV) |
| Static holding force | 3300 N |
| Product weight | 3143 g |
| Type of mounting | With internal threadWith accessories |
| Clamping unit release connection | G1/8 |
| Note on materials | RoHS-compliant |
| Seals material | NBRTPE-U(PU) |
| Material of spring | High-alloy steel |
| Housing material | Steel |
| Clamping jaws material | Tool steel |
| Material of piston | Steel |
