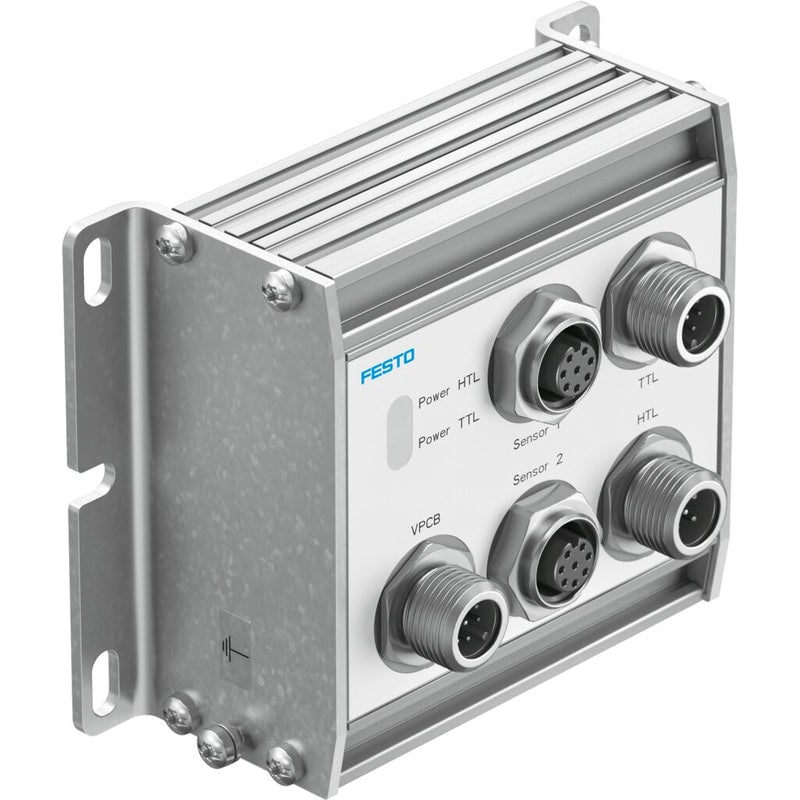

Signal convertor
CASB-MT-D3-R7
8071781
GTIN 4052568445874
Vendor Festo
Regular price
$658.20
Unit price
CASB-MT-D3-R7 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CASB-MT-D3-R7
Regular price
$658.20
Unit price
CASB-MT-D3-R7 is backordered and will ship as soon as it is back in stock.
| Type code | CASB |
|---|---|
| Seals material | NBRFPM |
| Signal range | HTL signal: high: min. 18 V; low: max. 2 VTTL signal: high: min. 2.4 V, low: max. 0.4 V |
| KC characters | KC EMC |
| Duty cycle | 1 |
| Protection against direct and indirect contact | PELV |
| Application note | The product is suitable for industrial purposes only. Radio interference suppression measures may be required in residential areas. |
| Electrical connection output 2, connection type | Plug |
| Pneumatic valve electrical connection, connection type | Plug |
| Electrical connection output, connection technology | M12x1 A-coded as per EN 61076-2-101 |
| Electrical pneumatic valve connection, connection technology | M12x1 A-coded as per EN 61076-2-101 |
| Electrical connection output, connection type | Plug |
| Electrical connection output 2, function | HTL |
| Note on degree of protection | In mounted state |
| Electrical sensor connection, connection type | 2x socket |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Electrical connection output, function | TTL |
| Electrical sensor connection, connection technology | M12x1 A-coded as per EN 61076-2-101 |
| Reverse polarity protection | yes |
| Electrical connection output 2, connection technology | M12x1 A-coded as per EN 61076-2-101 |
| Output frequency | TTL signal: max. 7200 HzHTL signal: max. 450 Hz |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Electrical pneumatic valve connection, number of pins/wires | 8 |
| Sensor electrical connection, number of pins/wires | 8 |
| Electrical output connection 2, number of pins/wires | 5 |
| Current consumption with load-free outputs | 50 mA |
| Current rating per output | 50 mA |
| Max. electrical power consumption | 6 W |
| DC operating voltage range | 20.4 V ... 30 V |
| Diagnostic function | Indication via LED |
| Mounting position | Any |
| Nominal operating voltage DC | 24 V |
| Residual ripple | 0.05 |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Degree of protection | IP65 |
| Ambient temperature | -5 °C ... 50 °C |
| Certification | RCM compliance mark |
| Product weight | 350 g |
| Type of mounting | With through-hole for M4 screw |
| Note on materials | RoHS-compliant |
| Housing material | Wrought aluminum alloy, anodized |
