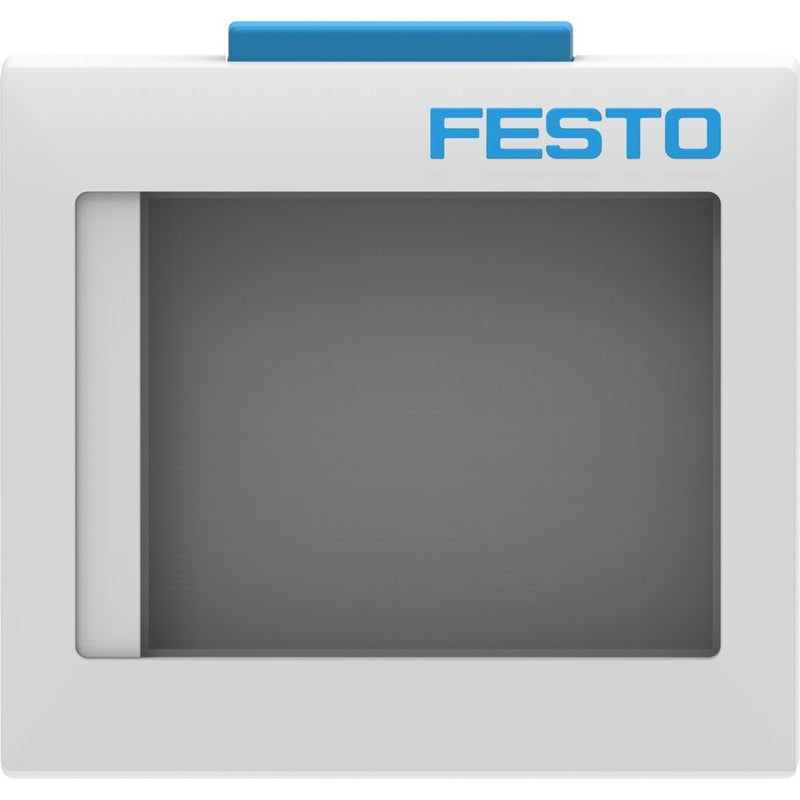

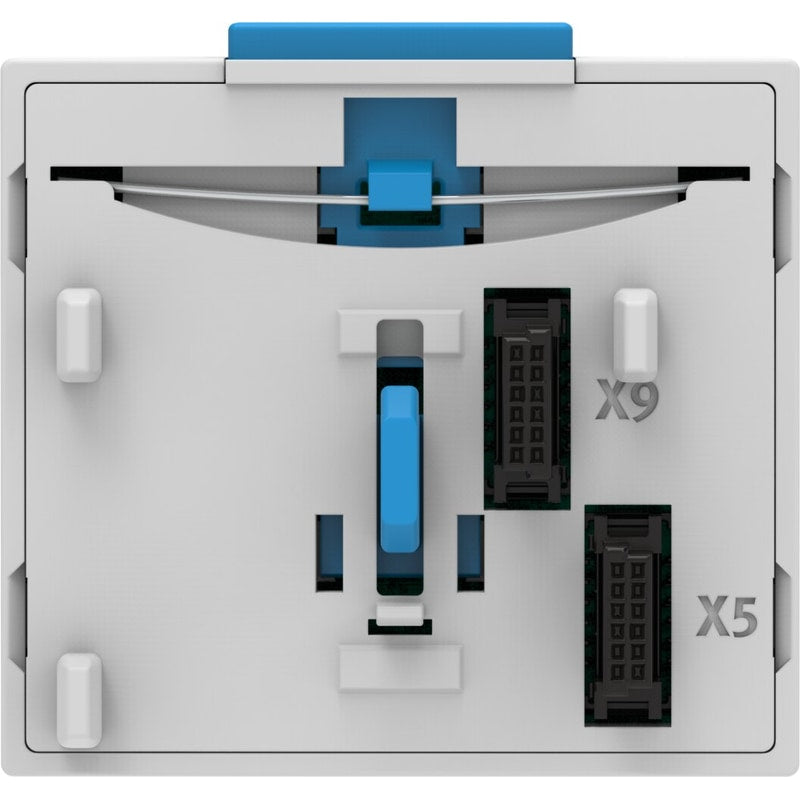

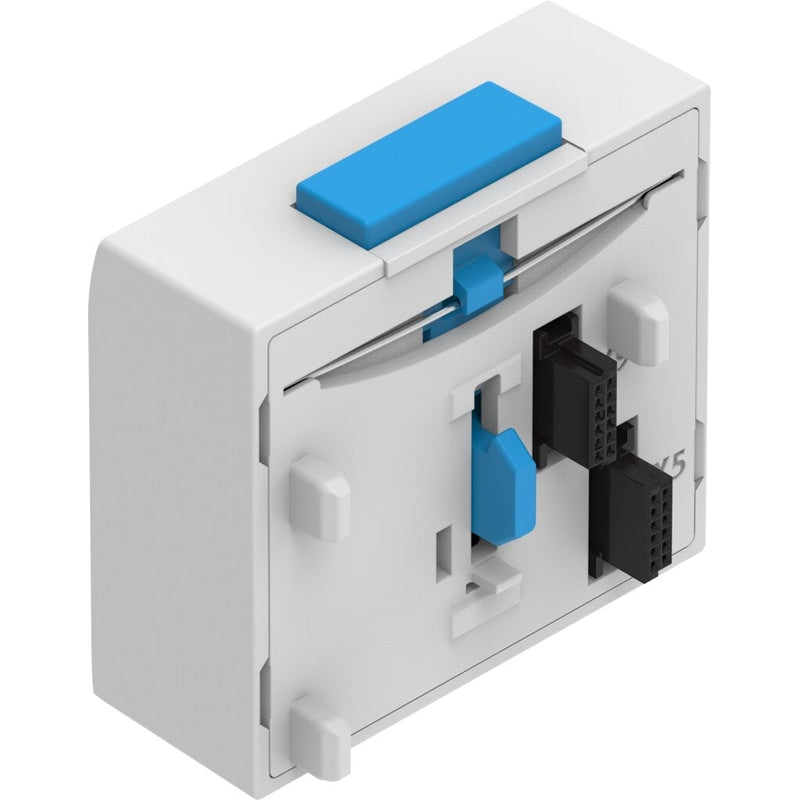

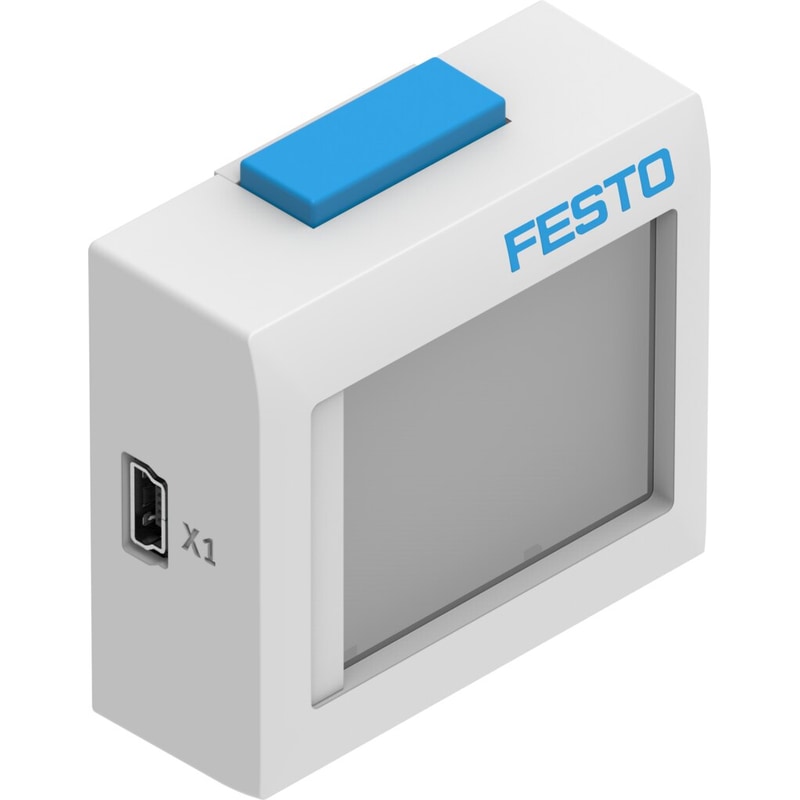

Operator unit
CDSB-A1
8070984
GTIN 4052568445782
Vendor Festo
Regular price
$190.98
Unit price
CDSB-A1 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CDSB-A1
Regular price
$190.98
Unit price
CDSB-A1 is backordered and will ship as soon as it is back in stock.
| KC characters | KC EMC |
|---|---|
| Max. cable length | 3 m |
| USB interface | USB 2.0 type B, mini |
| Type code | CDSB |
| User memory | 3 GB |
| Display | Color TFT |
| Display properties | Touchscreen |
| Display size | 1.77" |
| DC operating voltage range | 4.5 V ... 5.5 V |
| Display resolution | 128x160 pixels |
| CE marking (see declaration of conformity) | As per EU EMC directiveAs per EU RoHS directive |
| Storage temperature | -20 °C ... 70 °C |
| Relative air humidity | Max. 95 % at 60 °CNon-condensing |
| Degree of protection | IP20 |
| Ambient temperature | 0 °C ... 60 °C |
| Certification | RCM compliance mark |
| Product weight | 36.6 g |
| Note on materials | RoHS-compliantContains paint-wetting impairment substances |
| Housing material | PA6-reinforced |
| Area of application | Only with CMMT, CPX-E-CEC |
| Dimensions W x L x H | 50 mm x 45 mm x 19.6 mm |
