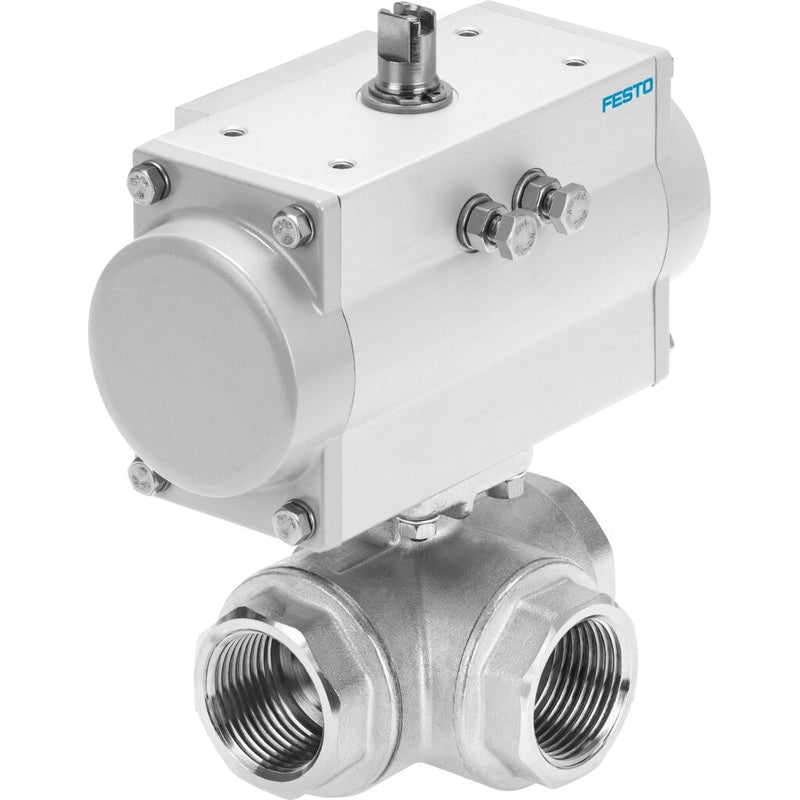

Ball valve actuator unit
VZBM-A-11/4"-RP-25-F-3L-B2-PB80
8070271
GTIN 4052568445577
Vendor Festo
- Structural design
- 3-way ball valve - Quarter turn actuator
- Fitting connection
- Rp1 1/4
- Actuation type
- Pneumatic
Regular price
$730.97
Unit price
VZBM-A-11/4"-RP-25-F-3L-B2-PB80 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VZBM-A-11/4"-RP-25-F-3L-B2-PB80
Regular price
$730.97
Unit price
VZBM-A-11/4"-RP-25-F-3L-B2-PB80 is backordered and will ship as soon as it is back in stock.
| Type code | VZBM |
|---|---|
| Design | 3-way ball valveQuarter turn actuator |
| Actuation type | Pneumatic |
| Mounting position | Any |
| Type of mounting | Line installation |
| Fitting connection | Rp1 1/4 |
| Switching position indication | Slot direction = flow direction |
| Nominal width DN | 32 |
| Operating pressure | 5.5 bar ... 8 bar |
| Nominal pressure of fitting PN | 25 |
| Symbol | 00992011 |
| Medium | Compressed air as per ISO 8573-1:2010 [-:-:-]Inert gasWater – no water vaporNeutral liquids |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Dew point min. 10 °C below the ambient and medium temperatureOperation with oil lubrication possible (required for further use) |
| Temperature of medium | -20 °C ... 130 °C |
| Ambient temperature | -20 °C ... 80 °C |
| Flow rate Kv type L | 121 m³/h |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Housing material | Brass, nickel-plated |
| Material number of housing | CW617N |
| Seals material | HNBRPTFE |
| Ball material | Brass, chrome-plated |
| Material number for ball | CW614N |
| Shaft material | Brass |
| Material number for shaft | CW614N |
| Product weight | 6953 g |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
