Gateway

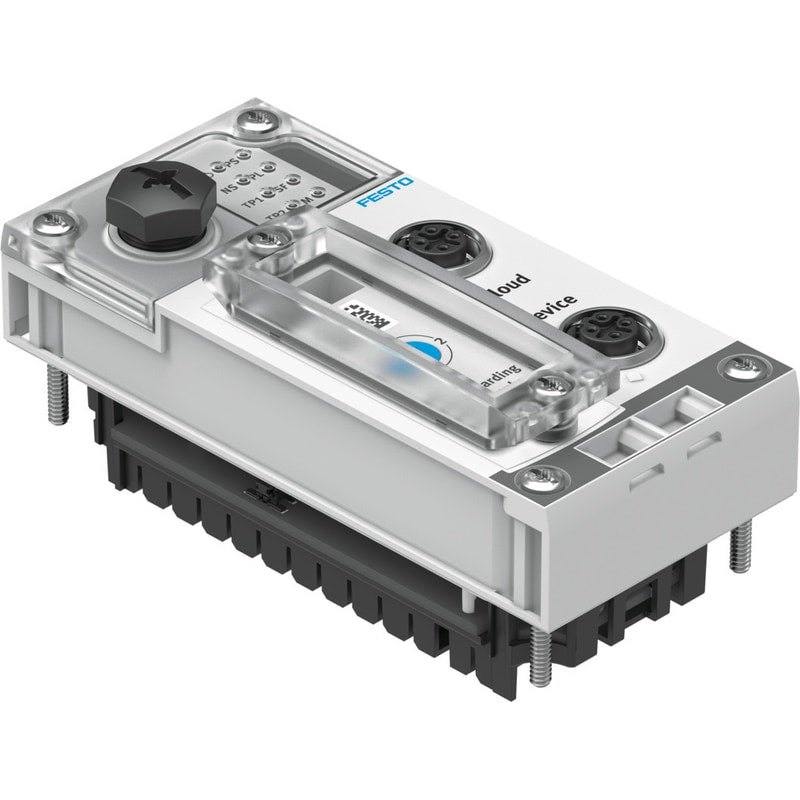

CPX-IOT
8069773
GTIN 4052568445195
Vendor Festo
Regular price
$1,306.24
Unit price
CPX-IOT is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.

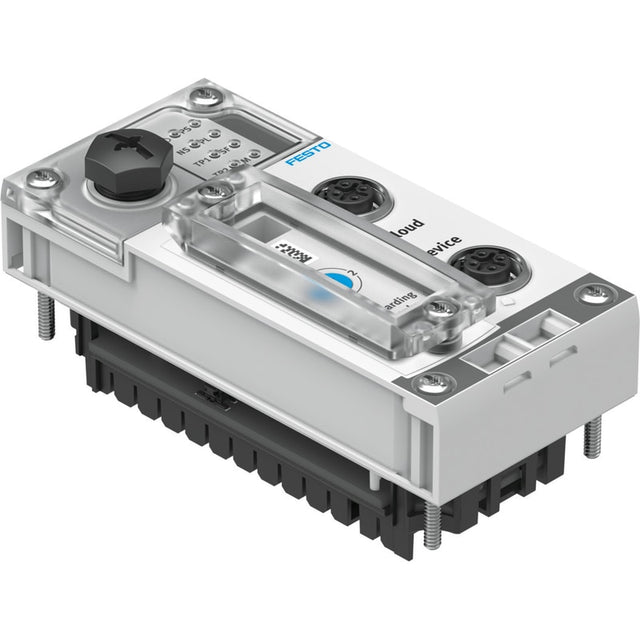

CPX-IOT
Regular price
$1,306.24
Unit price
CPX-IOT is backordered and will ship as soon as it is back in stock.
| Dimensions W x L x H | 50 mm x 107 mm x 50 mm |
|---|---|
| Vibration resistance | Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6 |
| Ethernet interface, protocol | TCP/IP |
| Fieldbus interface, connection type | Socket |
| Intrinsic current consumption at nominal operating voltage for electronics/sensors | Typically 80 mA |
| Ethernet interface, connection technology | M12x1, D-coded as per EN 61076-2-101 |
| Fieldbus interface, connection pattern | 995716 |
| Fieldbus interface, function | Bus connection to ethernet-based devices by Festo |
| Ethernet interface, transmission rate | 10 Mbit/s100 Mbit/s |
| Ethernet interface, function | Cloud connection |
| Permissible voltage fluctuations for electronics/sensors | ± 25 % |
| Ethernet interface, connection pattern | 995716 |
| Fieldbus interface, connection technology | M12x1, D-coded as per EN 61076-2-101 |
| Fieldbus interface, protocol | OPC-UAEthernet |
| Shock resistance | Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27 |
| Ethernet interface, connection type | Socket |
| Diagnostics via LED | Power supply for electronics/sensorsModifyModule locationNetwork status, port 2Load power supplyNetwork statusNetwork status, port 1Connection to the cloudSystem fault |
| Ethernet interface, number of poles/wires | 4 |
| Nominal operating voltage DC for electronics/sensors | 24 V |
| Fieldbus interface, number of poles/wires | 4 |
| Width dimension | 50 mm |
| Type code | CPX |
| CPU data | Dual core 533 MHz128 MB RAM |
| Control elements | DIP switch for resetting to delivery stateRotary switch for setting mode of operation |
| IP address setting | Statically via web serverDHCP |
| Power failure buffering | 10 ms |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Storage temperature | -20 °C ... 70 °C |
| Relative air humidity | Non-condensing95 % |
| Protection against direct and indirect contact | PELV |
| Degree of protection | IP67IP65 |
| Ambient temperature | -5 °C ... 50 °C |
| Product weight | 130 g |
| Fieldbus interface, galvanic isolation | yes |
| Fieldbus interface, transmission rate | 100 Mbit/s |
| Type of mounting | With H-rail |
| Note on materials | RoHS-compliant |
| Housing material | PA |
