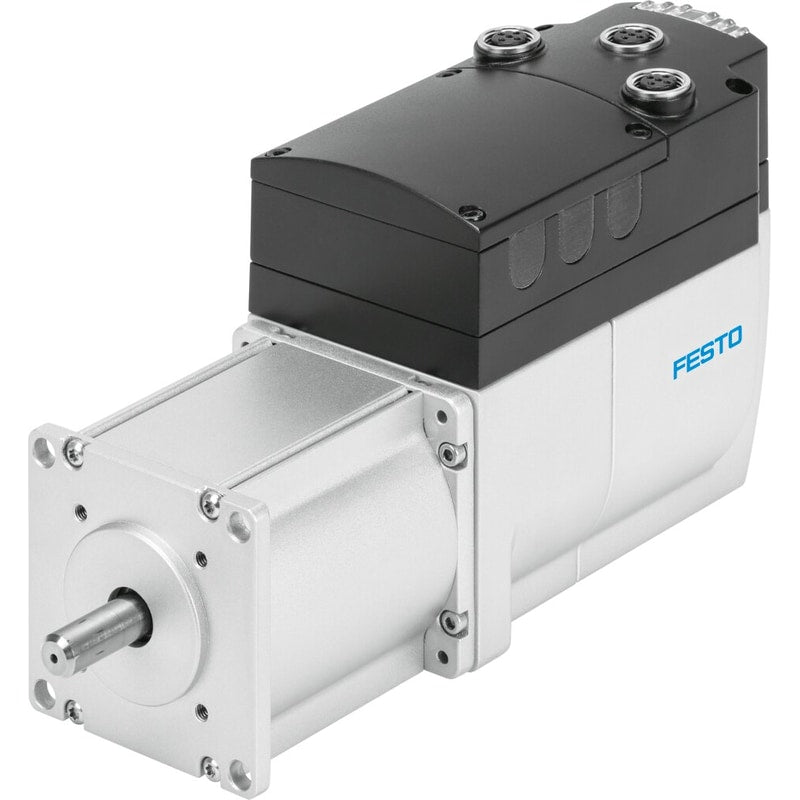

Integrated drive
EMCA-EC-67-M-1TE-PN
8069726
GTIN 4052568297909
Vendor Festo
Regular price
$1,675.38
Unit price
EMCA-EC-67-M-1TE-PN is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
EMCA-EC-67-M-1TE-PN
Regular price
$1,675.38
Unit price
EMCA-EC-67-M-1TE-PN is backordered and will ship as soon as it is back in stock.
| KC characters | KC EMC |
|---|---|
| IP address allocation | DCPFCT |
| Additional functions | Conformance class BDCPSNMPMRPReal-time class 1LLDPIRT-compatible |
| Configuration support | GSDML file |
| Topologies | RingStarLine |
| Media redundancy | MRP |
| Baud rate | 10/100 Mbit/s (full/half) |
| Minimum cycle time | 2 ms |
| Type code | EMCA |
| Controller operating mode | PWM MOSFET power output stageCascade controller withPI speed controllerP position controllerPI current regulator |
| Rotor position sensor | Absolute encoder, single-turn |
| Rotor position sensor measuring principle | Magnetic |
| Protective function | Contouring error monitoringVoltage failure detectionCurrent monitoringI²t monitoringSoftware end position detectionTemperature monitoring |
| Safety function | Safe torque off (STO) |
| Safety integrity level (SIL) | Safe torque off (STO)/SIL 2 |
| Performance Level (PL) | Safe torque off (STO)/category 3, performance level d |
| Display | LED |
| Max. rotational speed | 3300 1/min |
| Nominal rotary speed | 3150 1/min |
| Braking resistor, external | 6 Ohm |
| Diagnostic coverage | 0.9 |
| Characteristics of digital logic outputs | Freely configurable in some casesNot galvanically isolated |
| Hardware fault tolerance | 1 |
| Max. positive test pulse with 0 signal | 10000 µs |
| Max. negative test pulse on 1 signal | 600 µs |
| Motor nominal power | 150 W |
| DC nominal voltage | 24 V |
| Nominal current | 7.2 A |
| Parameterization interface | Ethernet |
| Protocol | PROFINET |
| SFF safe failure fraction | > 90 % |
| Absolute encoder operating time | Without external battery: 7 daysWith external battery: 6 months |
| Max. number of positioning sets | 64 |
| Rotor position sensor resolution | 12 bit |
| Motor peak power | 200 W |
| Peak current | 10.3 A |
| Permissible voltage fluctuations | +/- 20 % |
| Certificate issuing authority | German Technical Control Board (TÃœV) 01/205/5514.00/16UL E331130 |
| CE marking (see declaration of conformity) | As per EU EMC directiveas per EU machinery directive |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Storage temperature | -25 °C ... 70 °C |
| Relative air humidity | 0 - 95 %Non-condensing |
| Degree of protection | IP54 |
| Ambient temperature | 0 °C ... 50 °C |
| Note on ambient temperature | Above an ambient temperature of 20 °C, the power must be reduced by 1.75% per °C. |
| Certification | RCM compliance markc UL us - Recognized (OL) |
| Rotor mass moment of inertia | 0.301 kgcm² |
| Nominal torque | 0.45 Nm |
| Peak torque | 0.91 Nm |
| Permissible axial shaft load | 60 N |
| Permissible radial shaft load | 100 N |
| PFH | 0.000000001 |
| PFD | 0.0000186 |
| Proof test interval | 20 y |
| Product weight | 2260 g |
| Number of digital logic outputs 24Â VÂ DC | 2 |
| Number of digital logic inputs | 2 |
| Communication profile | FHPP |
| Logic input specification | Based on IEC 61131-2 |
| Work range of logic input | 24 V |
| Characteristics of logic input | Galvanically connected to logic potential |
| Ethernet, supported protocols | TCP/IP |
| Input switching logic | PNP (positive switching) |
| Switching logic at outputs | PNP (positive switching) |
| Type of mounting | Screwed tightlyWith through-hole |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
