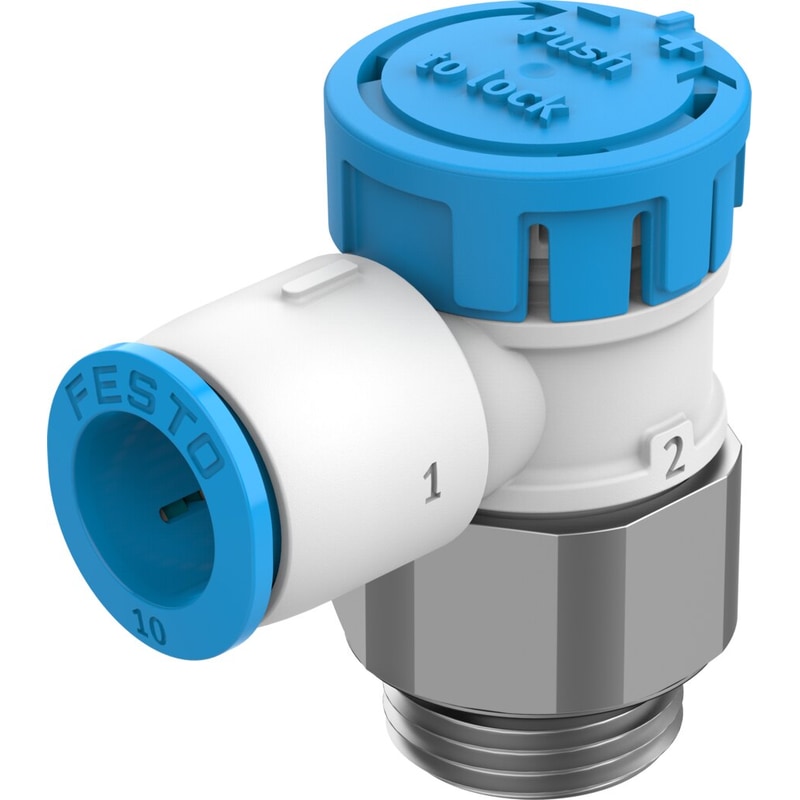

One-way flow control valve
VFOE-LE-T-G38-Q10
8068732
GTIN 4052568454449
Vendor Festo
- Valve function
- Exhaust air flow control non-return function
- Standard nominal flow rate in flow control direction
- 750 l/min
- Width across flats
- 21 mm
- Pneumatic connection 1
- QS-10
- Adjusting element
- Rotary knob with detent
Regular price
$21.89
Unit price
VFOE-LE-T-G38-Q10 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VFOE-LE-T-G38-Q10
Regular price
$21.89
Unit price
VFOE-LE-T-G38-Q10 is backordered and will ship as soon as it is back in stock.
| Valve function | Exhaust air flow control non-return function |
|---|---|
| Pneumatic connection 1 | QS-10 |
| Pneumatic connection 2 | G3/8 |
| Actuation type | Manual |
| Adjusting element | Rotary knob with detent |
| Type of mounting | Screw-in |
| Standard nominal flow rate in flow control direction | 750 l/min |
| Standard nominal flow rate in non-return direction | 700 l/min ... 1000 l/min |
| Ambient temperature | -10 °C ... 60 °C |
| Housing material | PBT |
| Mounting position | Any |
| Symbol | 00991452 |
| Width across flats | 21 mm |
| Rotatability | 360 deg/continuous swiveling not permissible |
| Operating pressure for entire temperature range | 0.02 MPa ... 1 MPa |
| Operating pressure for entire temperature range | 0.2 bar ... 10 bar |
| Operating pressure for entire temperature range | 2.9 psi ... 145 psi |
| Standard flow rate in flow control direction 6 -> 0 bar | 1280 l/min |
| Standard flow rate in non-return direction at 6 -> 0 bar | 1400 l/min ... 1600 l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| LABS conformity | VDMA24364 zone III |
| Temperature of medium | -10 °C ... 60 °C |
| Max. tightening torque | 15.6 Nm |
| Nominal tightening torque | 13 Nm |
| Tolerance for nominal tightening torque | ± 20% |
| Product weight | 29.5 g |
| Note on materials | RoHS-compliant |
| Cover material | PBT |
| Material of dynamic seals | HNBR |
| Threaded bolt material | Steel, galvanized |
| Releasing ring material | PBT |
| Static seal material | NBR |
