Pneumatic interface

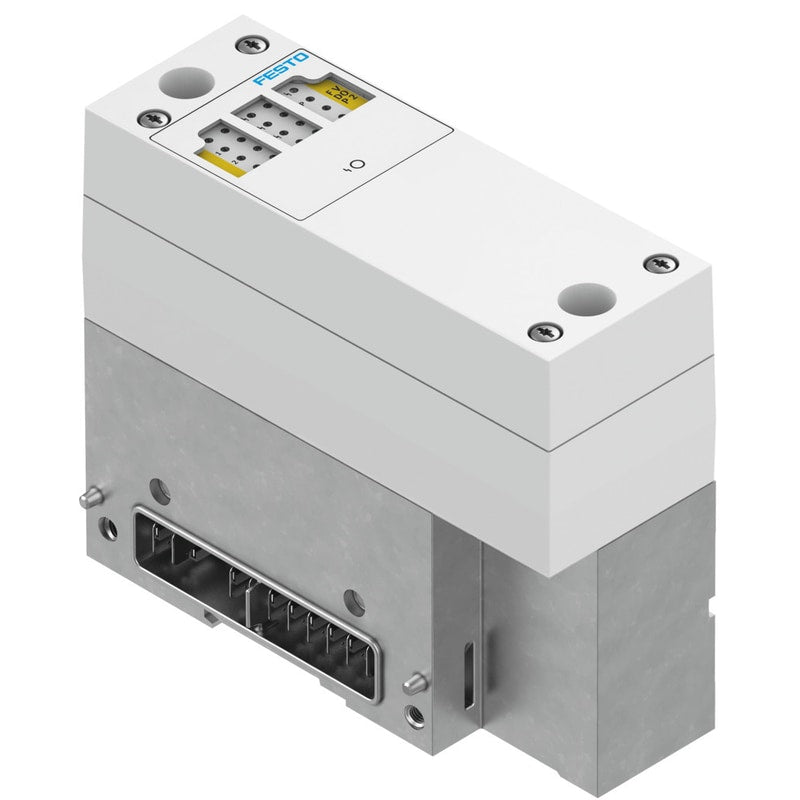

VABA-S6-1-X2-F1-CB
8068240
GTIN 4052568444822
Vendor Festo
Regular price
$902.41
Unit price
VABA-S6-1-X2-F1-CB is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VABA-S6-1-X2-F1-CB
Regular price
$902.41
Unit price
VABA-S6-1-X2-F1-CB is backordered and will ship as soon as it is back in stock.
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
|---|---|
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Type code | VABA |
| Valve manifold interface | Type 44, VTSA-F-CB |
| Diagnostics | Wire break per valve coilShort circuit of pneumatic valvesUndervoltage of pneumatic valves |
| Max. no. of valve positions | 12 for bistable pneumatic valves24 for monostable pneumatic valves |
| LED indicators | 1 group diagnostics |
| Parameterization | Fail-safe modes per channelForcing per channelIdle mode per channelModule monitoring |
| Fuse protection (short circuit) | Internal electronic fuse per pneumatic valve output |
| DC operating voltage range | 21.6 V ... 26.4 V |
| Intrinsic current consumption at nominal operating voltage | Typ. 110 mA for electronics with CPX-FVDA-P2Typ. 25 mA for pneumatic valves without CPX-FVDA-P2Typ. 45 mA for electronics without CPX-FVDA-P2Typ. 90 mA for pneumatic valves with CPX-FVDA-P2 |
| Max. power supply per channel | 0.2 A |
| Max. residual current per module | 4.5 A |
| Nominal operating voltage DC | 24 V |
| Electrical isolation between channel and internal bus | Yes, when using an additional supply for the pneumatic valves |
| CE marking (see declaration of conformity) | As per EU EMC directiveAs per EU RoHS directive |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Storage temperature | -20 °C ... 60 °C |
| Degree of protection | IP65 |
| Ambient temperature | -5 °C ... 50 °C |
| Product weight | 734 g |
| Electrical actuation | Fieldbus |
| Electrical connection | Via CPX |
| Note on materials | RoHS-compliant |
| Material of sub-base | Die-cast aluminum |
| Cover material | PA |
| Seals material | NBR |
| Material of screws | Steel |
