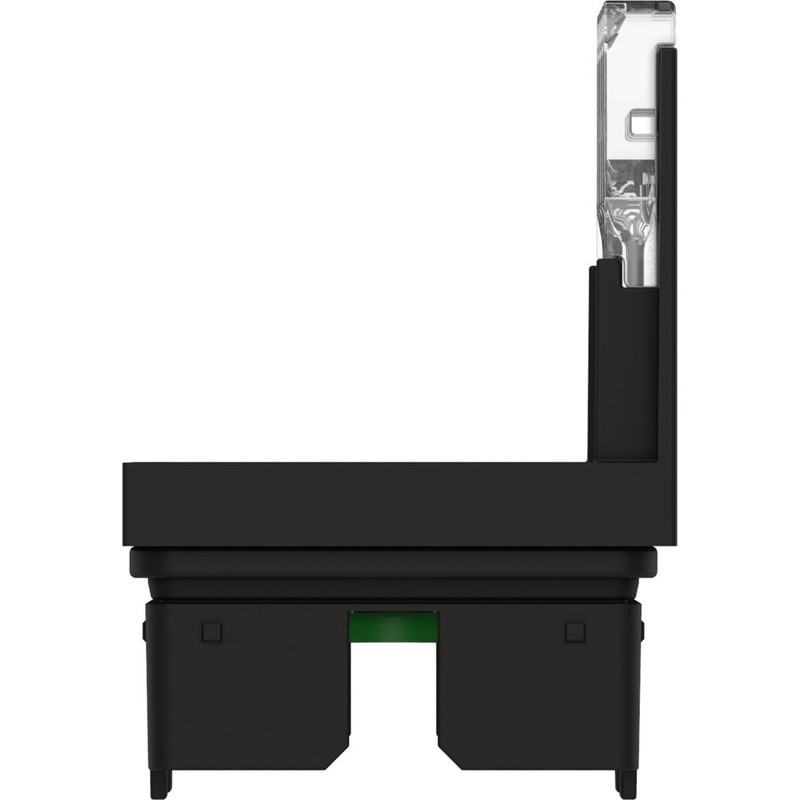

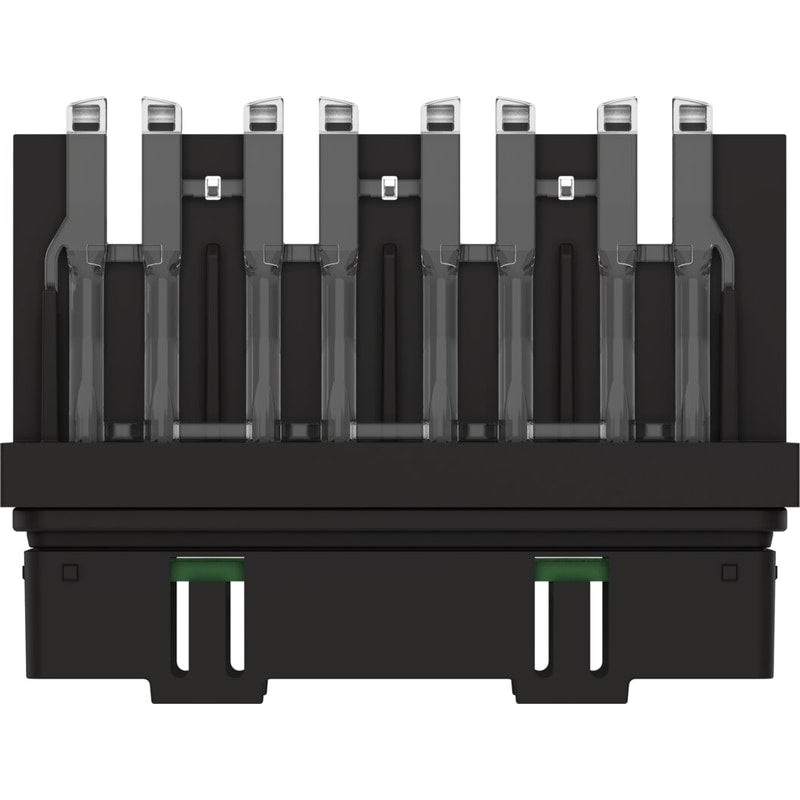

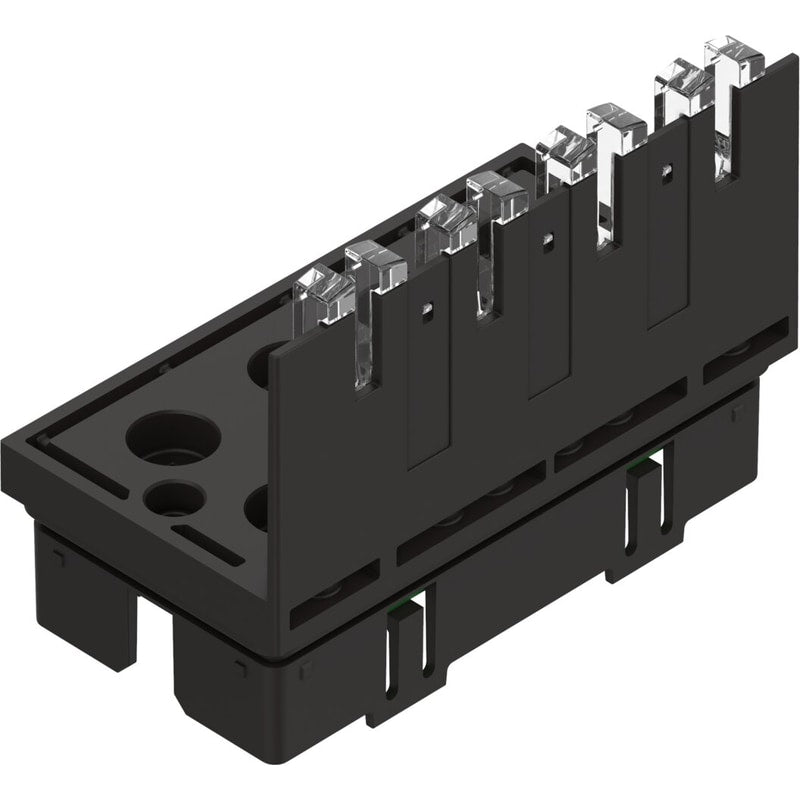

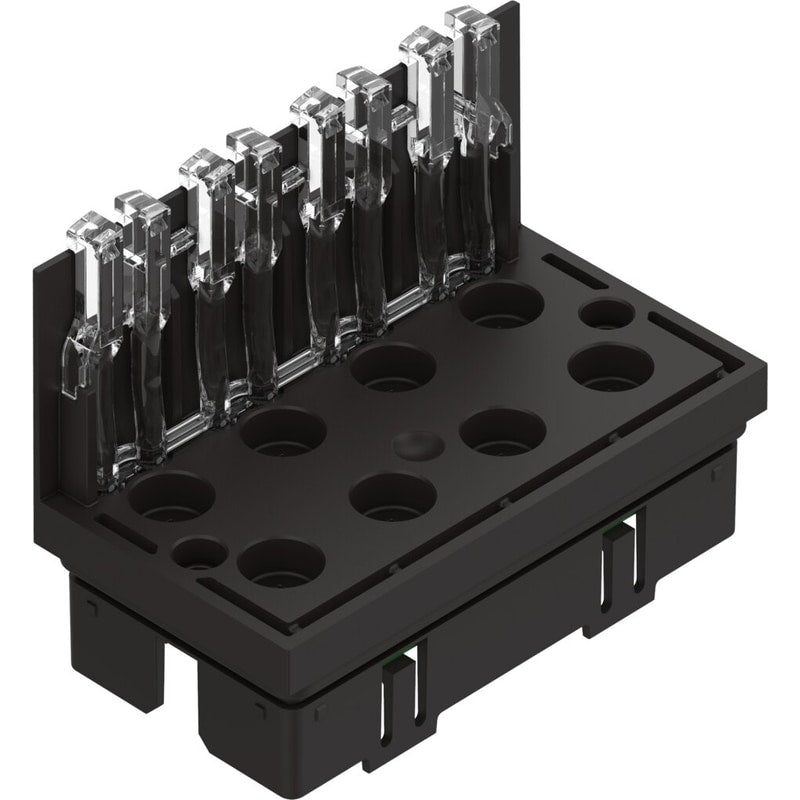

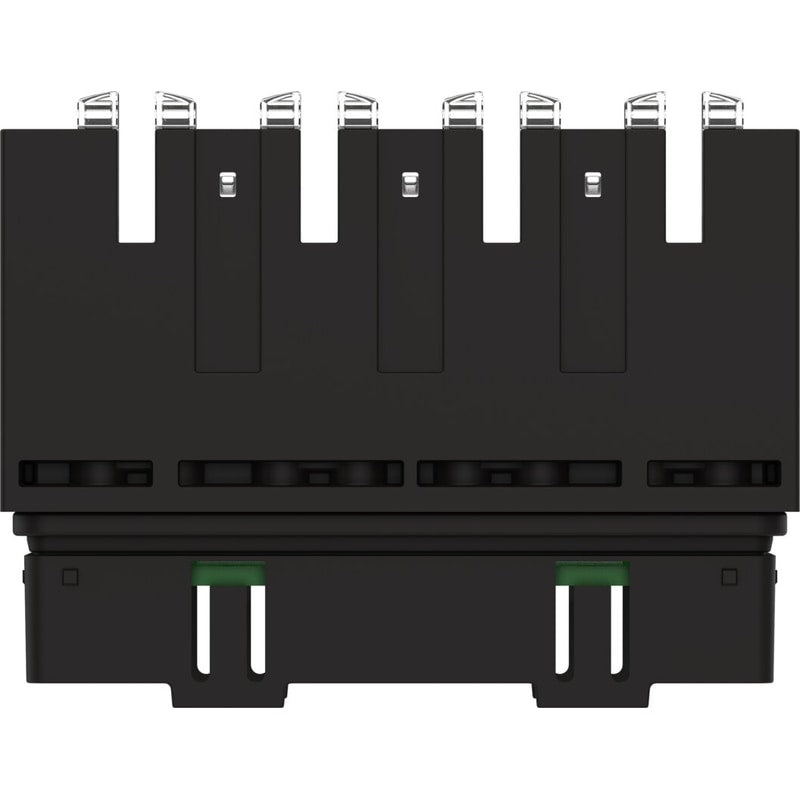

Electronics module
VMPA14-FB-EMG-8
8066765
GTIN 4052568444228
Vendor Festo
Regular price
$274.32
Unit price
VMPA14-FB-EMG-8 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VMPA14-FB-EMG-8
Regular price
$274.32
Unit price
VMPA14-FB-EMG-8 is backordered and will ship as soon as it is back in stock.
| Type code | VMPA14 |
|---|---|
| Diagnostics | Undervoltage of pneumatic valves |
| Max. no. of valve positions | 4 |
| Max. no. of solenoid coils | 8 |
| Intrinsic current consumption at load voltage | 23 mA |
| Intrinsic current consumption at operating voltage | 8 mA |
| Nominal pick-up current per solenoid coil | 58 mA to 24 ms |
| Nominal current with current reduction | 9 mA after 24 ms |
| Corrosion resistance class (CRC) | (when installed)1 - Low corrosion stress |
| Product weight | 30 g |
| Housing material | POM |
| Note on materials | RoHS-compliant |
