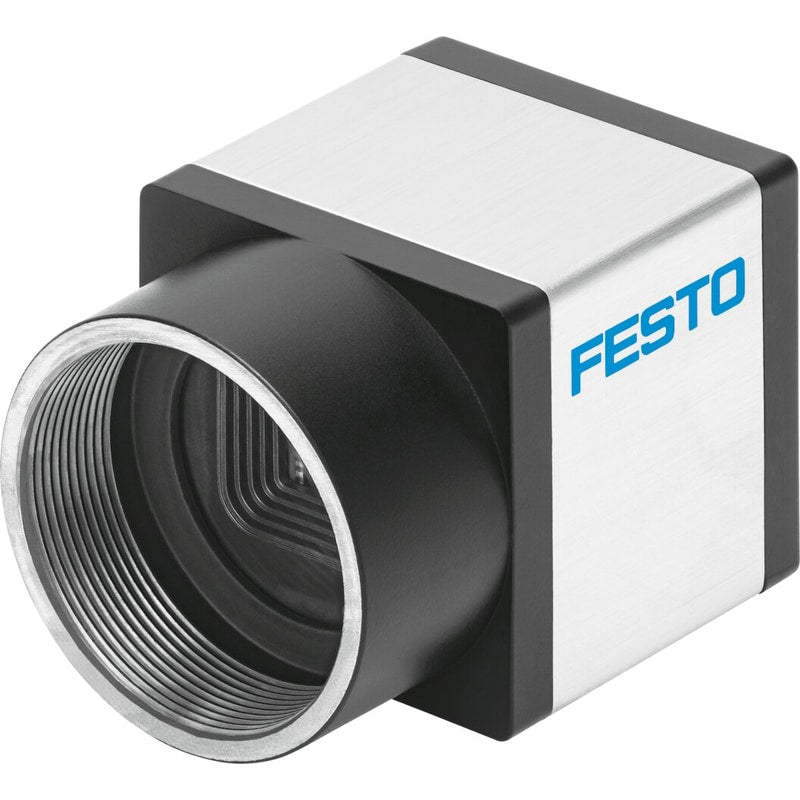

Camera head
SBPB-R2B-U3-1E1A-C
8066466
GTIN 4052568296933
Vendor Festo
Regular price
$1,805.40
Unit price
SBPB-R2B-U3-1E1A-C is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SBPB-R2B-U3-1E1A-C
Regular price
$1,805.40
Unit price
SBPB-R2B-U3-1E1A-C is backordered and will ship as soon as it is back in stock.
| Type code | SBPB |
|---|---|
| Type of mounting | With mounting kit |
| KC characters | KC EMC |
| Relative air humidity | 20 - 80 % |
| Electrical power consumption | 1.3 W ... 1.5 W |
| Sensor resolution | 1280 x 1024 pixels (SXGA) |
| Lens attachment | C mount |
| Field of view | Depending on lens selected |
| Width | 29 mm |
| Height | 29 mm |
| Length | 49 mm |
| Nominal operating voltage DC | 5 V |
| Permissible voltage fluctuations | +/- 5% |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Storage temperature | -20 °C ... 60 °C |
| Degree of protection | IP30 |
| Note on degree of protection | In mounted state |
| Ambient conditions | DryShielding against the effects of extreme extraneous lightCleanest possible ambient air |
| Ambient temperature | 0 °C ... 40 °C |
| Product weight | 52 g |
| Exposure time | 9 µs ... 2000000 µs |
| Frame rate (full image) | 60 fps |
| Sensor type | Monochrome |
| USB interface, function | CommunicationPower supply |
| USB-interface, connection type | Socket |
| USB interface | USB 3.0 type B micro |
| USB interface, number of poles/wires | 10 |
| Input/output interface, function | Without function |
| Note on materials | RoHS-compliant |
| Housing material | Wrought aluminum alloy, anodized |
