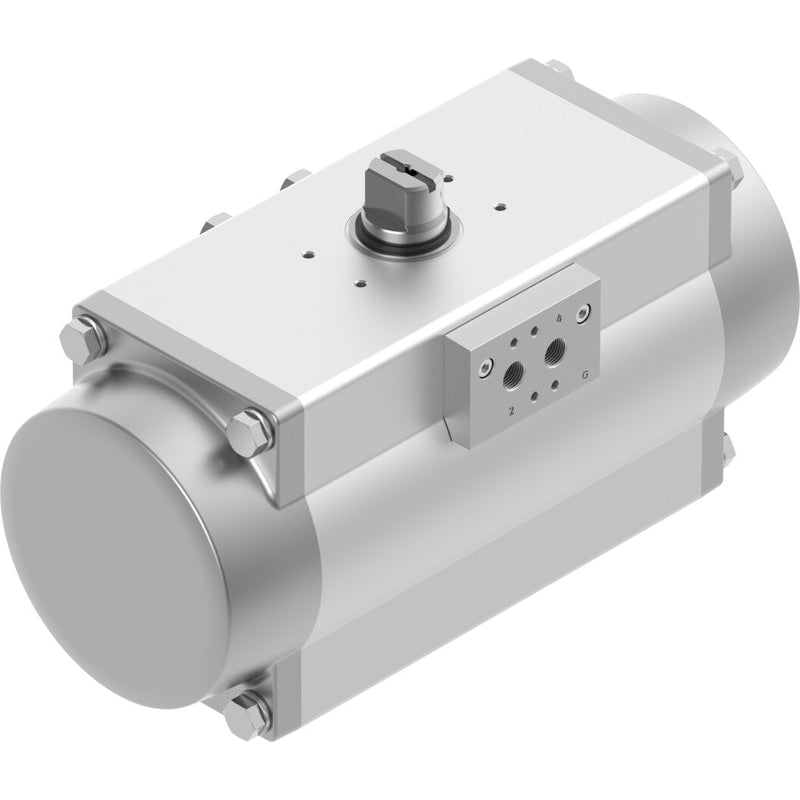

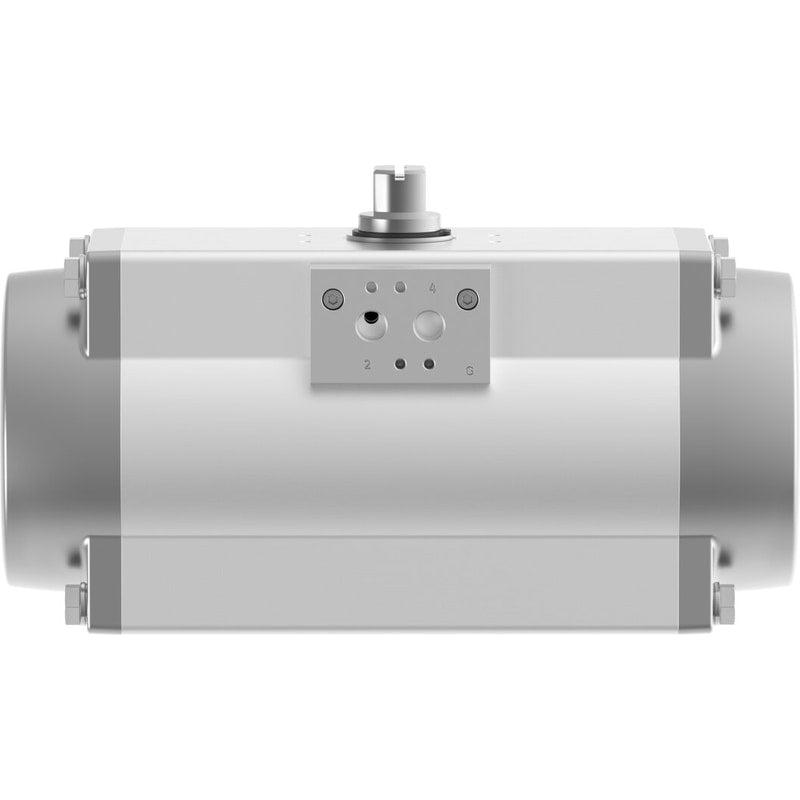

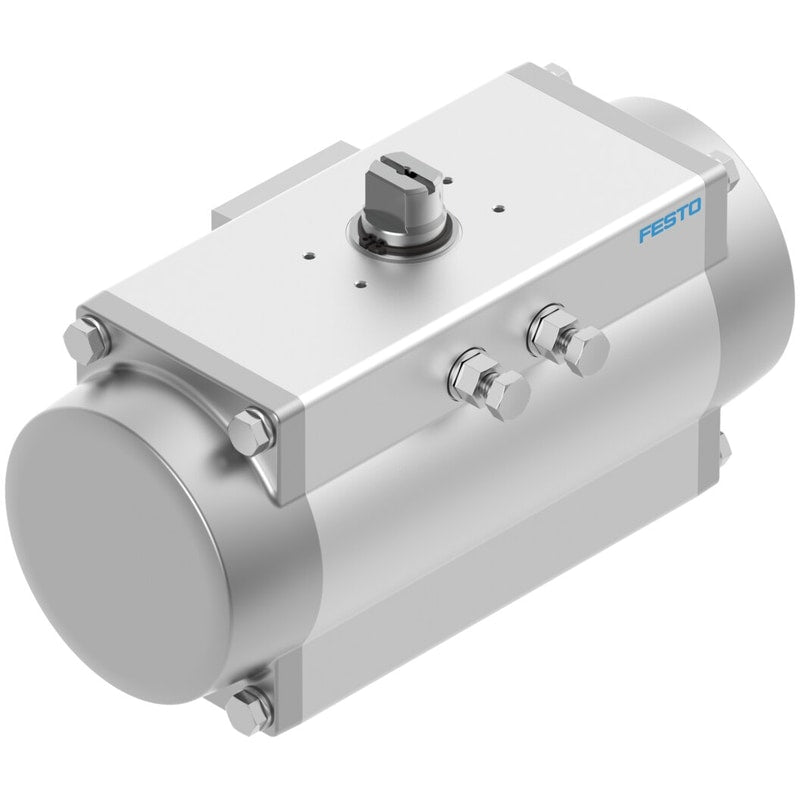

Quarter turn actuator
DFPD-N-300-RP-90-RS60-F0710
8066453
GTIN 4052568444082
Vendor Festo
- Pneumatic connection
- 1/4 NPT
- Torque at nominal operating pressure and 0° swivel angle
- 221 Nm
- Swivel angle
- 90 deg
- Flange hole pattern
- F0710
- Shaft connection
- T22
Regular price
$639.54
Unit price
Quarter turn actuator DFPD-N-300-RP-90-RS60-F0710 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DFPD-N-300-RP-90-RS60-F0710
Regular price
$639.54
Unit price
Quarter turn actuator DFPD-N-300-RP-90-RS60-F0710 is backordered and will ship as soon as it is back in stock.
semi-rotary drive DFPD-N-300-RP-90-RS60-F0710 Part number: 8066453 single-acting, rack and pinion design, connection pattern to NAMUR VDI/VDE 3845 for mounting solenoid valves, position sensors and positioners, standard connection to process valve fitting ISO 5211, NPT control air connection thread type.
| Size of actuator | 300 |
|---|---|
| Flange hole pattern | F0710 |
| Swivel angle | 90 deg |
| End-position adjustment range at 0° | '-5 ... 5 deg |
| End-position adjustment range at 90° | '-5 ... 5 deg |
| Shaft connection depth | 24.3 mm |
| Fitting connection conforms to standard | ISO 5211 |
| Cushioning | No cushioning |
| Assembly position | Any |
| Mode of operation | single-acting |
| Design structure | Rack and pinion |
| Position detection | Optical |
| Closing direction | right-closing |
