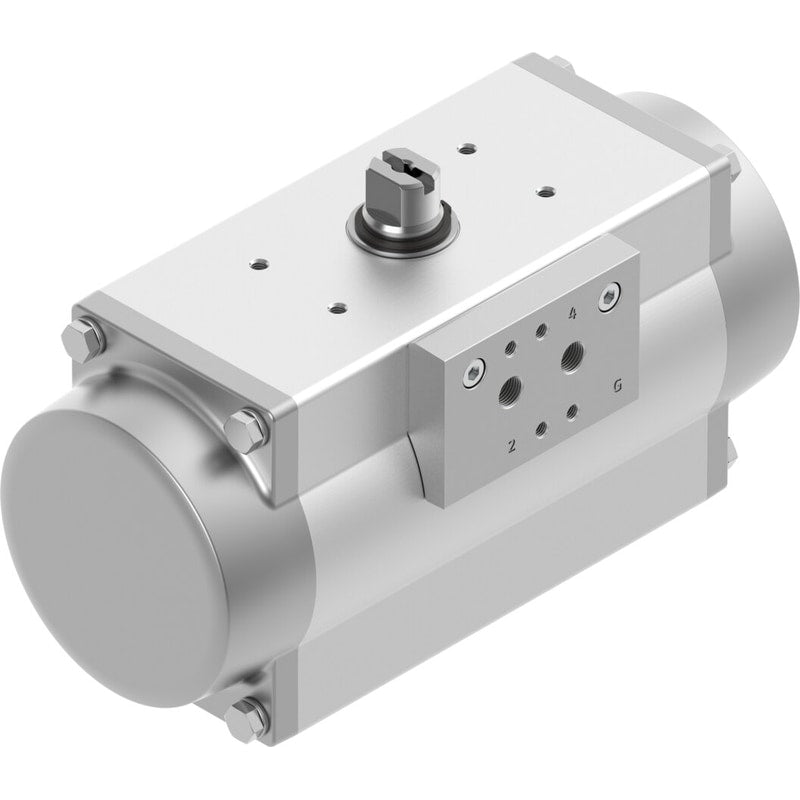

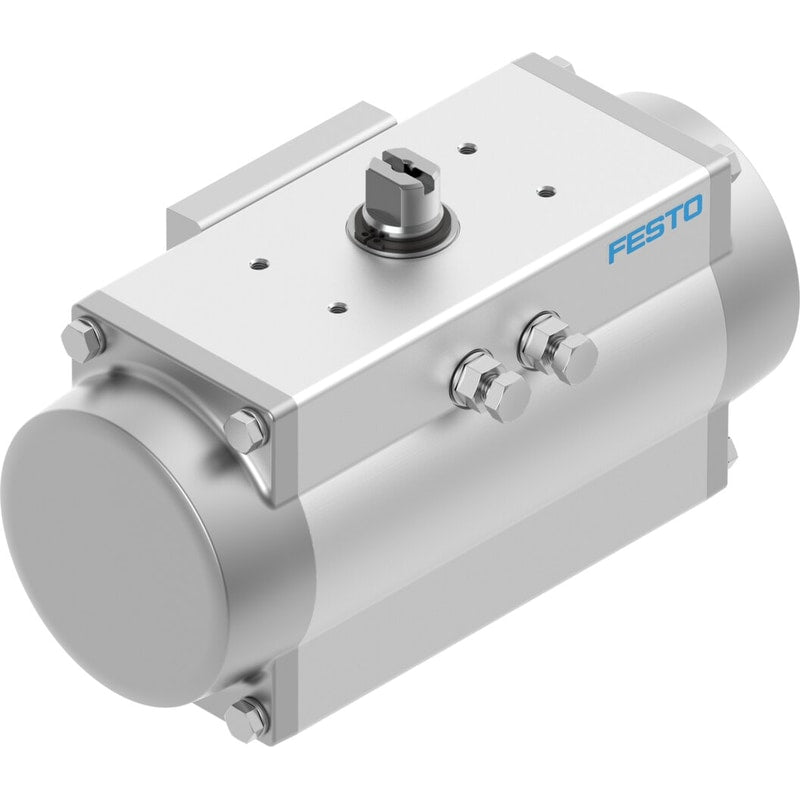

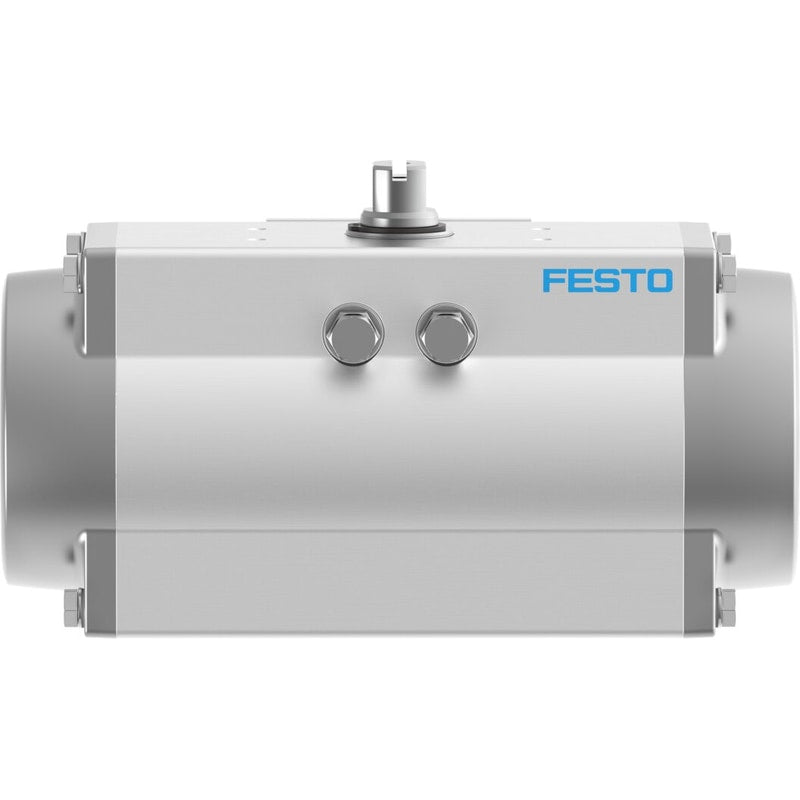

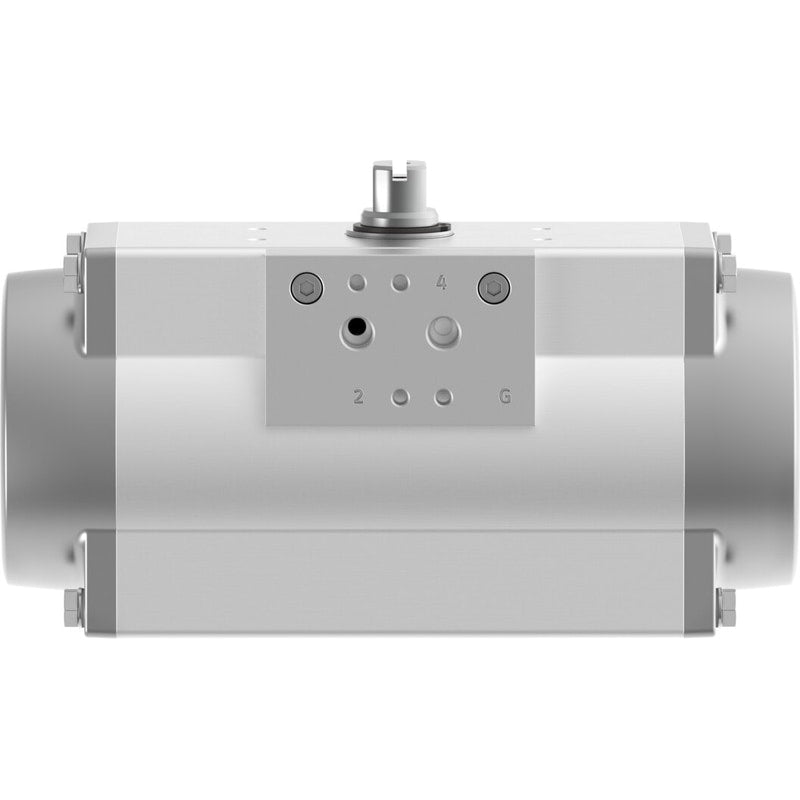

Quarter turn actuator
DFPD-N-80-RP-90-RS30-F0507-R3-EP
8066444
GTIN 4052568443993
Vendor Festo
- Pneumatic connection
- 1/8 NPT
- Torque at nominal operating pressure and 0° swivel angle
- 30.1 Nm
- Swivel angle
- 90 deg
- Flange hole pattern
- F0507
- Shaft connection
- T17
Regular price
$377.10
Unit price
DFPD-N-80-RP-90-RS30-F0507-R3-EP is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DFPD-N-80-RP-90-RS30-F0507-R3-EP
Regular price
$377.10
Unit price
DFPD-N-80-RP-90-RS30-F0507-R3-EP is backordered and will ship as soon as it is back in stock.
| Size of valve actuator | 80 |
|---|---|
| Nominal operating pressure | 43.5 psi |
| Operating pressure | 0.2 MPa ... 0.8 MPa |
| Nominal operating pressure | 0.3 MPa |
| Operating pressure | 29 psi ... 116 psi |
| Devices type according to VDMA 66413 | Safety device |
| Safety function | The fundamental safety function is that the control valve moves to the switching position when the compressed air is turned off. It is reset by spring force. |
| MTTFd | 1126 years |
| PFH | 1.01E-7 |
| Flange hole pattern | F0507 |
| Swivel angle | 90 deg |
| End-position adjusting range at 0° | -5 deg ... 5 deg |
| End-position adjusting range at nominal swivel angle | -5 deg ... 5 deg |
| Depth shaft connection | 19 mm |
| Type code | DFPD |
| Standard connection for valve | ISO 5211 |
| Mounting position | Any |
| Mode of operation | Single-acting |
| Design | Gear rack/pinion |
| Closing direction | Clockwise closing |
| Symbol | 00991266 |
| Valve connection conforms to standard | VDI/VDE 3845 (NAMUR) |
| Connection for valve positioner and position sensor conforms to standard | VDI/VDE 3845 size AA 1 |
| Safety integrity level (SIL) | Up to SIL 2 low demand mode up to SIL 3 in a redundant architecture up to SIL 1 high demand mode |
| Certified for safety function to ISO 13849 and IEC 61508 (SIL) | Product can be used in safety-related parts of control systems up to SIL 2, low demand Product can be used in safety-related parts of control systems up to SIL 1, high demand up to SIL 3 in a redundant architecture |
| Operating pressure | 2 bar ... 8 bar |
| Nominal operating pressure | 3 bar |
| ATEX category gas | II 2G |
| Type of ignition protection for gas | Ex h IIC T4 Gb X |
| ATEX category for dust | II 2D |
| Type of (ignition) protection for dust | Ex h IIIC T105°C Db X |
| Explosive ambient temperature | -20°C <= Ta <= +80°C |
| Ambient temperature | -20 °C ... 80 °C |
| Certificate issuing authority | German Technical Control Board (TÜV) Rheinland 968/V 1106.00/19 |
| Explosion prevention and protection | Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Dew point min. 10 °C below the ambient and medium temperature Operation with oil lubrication possible (required for further use) |
| CE marking (see declaration of conformity) | as per EU explosion protection directive (ATEX) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Storage temperature | -20 °C ... 60 °C |
| Torque at nominal operating pressure and 0° swivel angle | 30.1 Nm |
| Torque at nominal operating pressure and 90° swivel angle | 15.7 Nm |
| Note about the torque | The actuator's operating torque must not be higher than the maximum permissible torque listed in ISO 5211, based on the size of the mounting flange and the coupling. |
| Spring return torque at 0° swivel angle | 14.8 Nm |
| Spring return torque with 90° swivel angle | 29.2 Nm |
| PFD | 7.8E-4 |
| Air consumption at 6 bar per cycle 0°-nominal swivel angle-0° | 3.1 l |
| Product weight | 3746 g |
| Shaft connection | T17 |
| Pneumatic connection | 1/8 NPT |
| Note on materials | RoHS-compliant |
| Material of sub-base | Wrought aluminum alloy, anodized |
| Cover material | Die-cast aluminum, coated |
| Seals material | NBR |
| Material of spring | Spring steel |
| Housing material | Wrought aluminum alloy, anodized |
| Material of piston | Die-cast aluminum |
| Material of bearing | POM |
| Cam material | Cast stainless steel |
| Material of screws | High-alloy stainless steel |
| Shaft material | High-alloy stainless steel |
