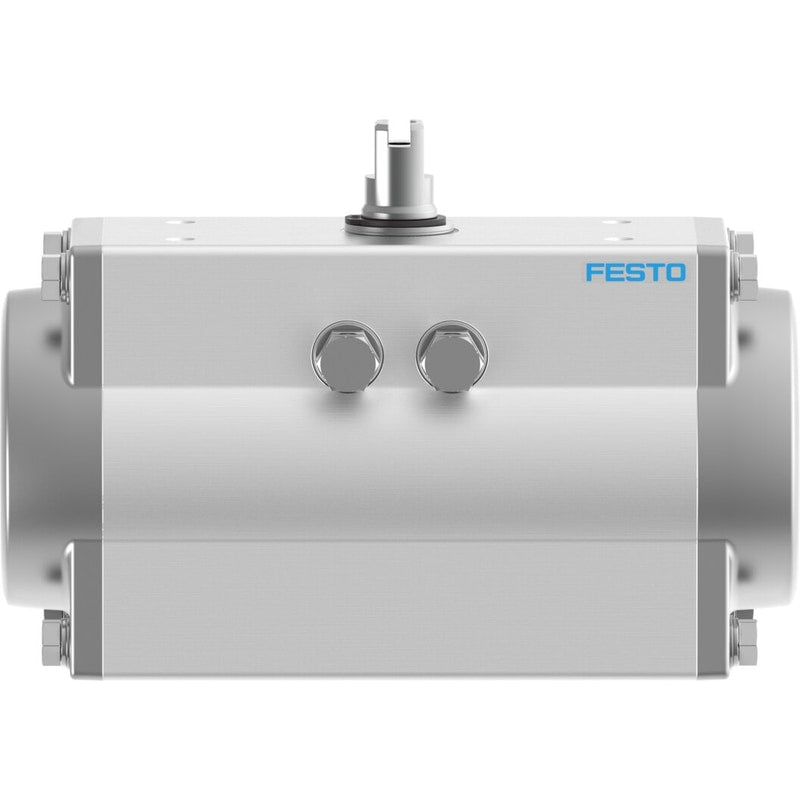

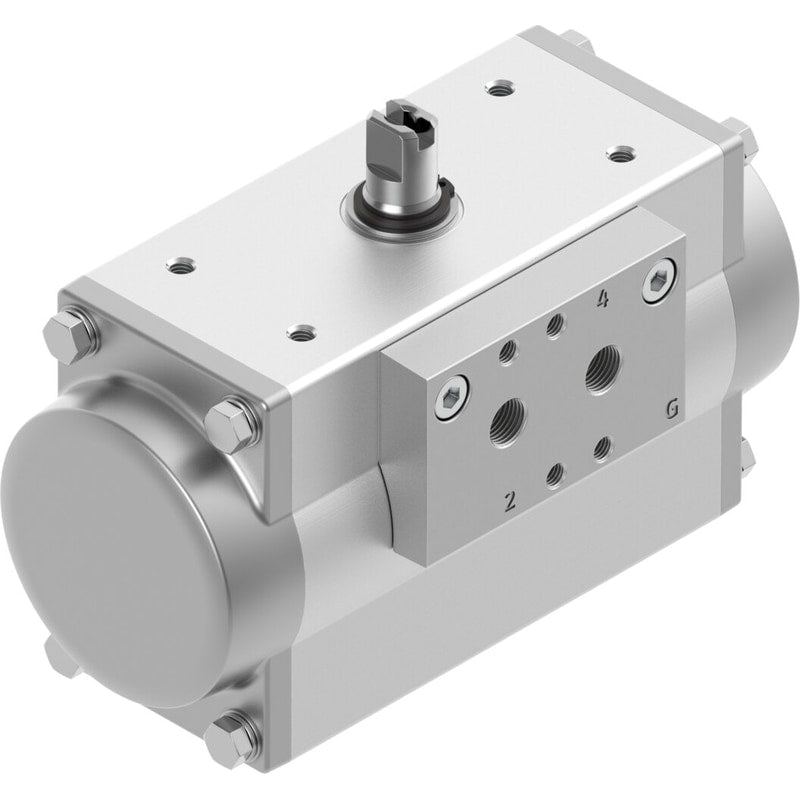

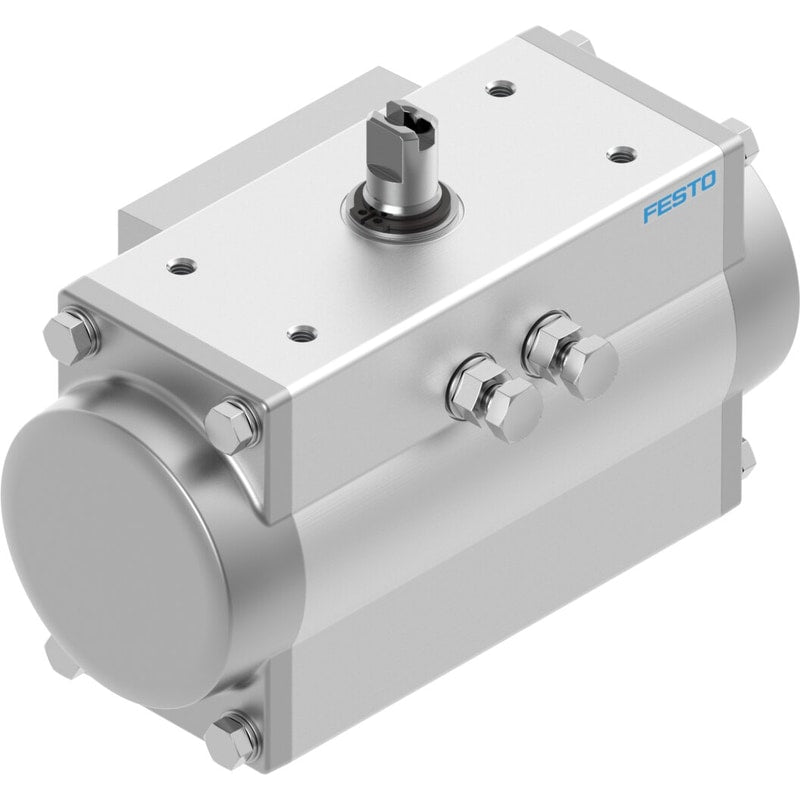

Quarter turn actuator
DFPD-N-20-RP-90-RS60-F03
8066425
GTIN 4052568443801
Vendor Festo
- Pneumatic connection
- 1/8 NPT
- Torque at nominal operating pressure and 0° swivel angle
- 14.7 Nm
- Swivel angle
- 90 deg
- Flange hole pattern
- F03
- Shaft connection
- T9
Regular price
$193.43
Unit price
Quarter turn actuator DFPD-N-20-RP-90-RS60-F03 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DFPD-N-20-RP-90-RS60-F03
Regular price
$193.43
Unit price
Quarter turn actuator DFPD-N-20-RP-90-RS60-F03 is backordered and will ship as soon as it is back in stock.
semi-rotary drive DFPD-N-20-RP-90-RS60-F03 Part number: 8066425 single-acting, rack and pinion design, connection pattern to NAMUR VDI/VDE 3845 for mounting solenoid valves, position sensors and positioners, standard connection to process valve fitting ISO 5211, NPT control air connection thread type.
| Size of actuator | 20 |
|---|---|
| Flange hole pattern | F03 |
| Swivel angle | 90 deg |
| End-position adjustment range at 0° | '-5 ... 5 deg |
| End-position adjustment range at 90° | '-5 ... 5 deg |
| Shaft connection depth | 10.7 mm |
| Fitting connection conforms to standard | ISO 5211 |
| Cushioning | No cushioning |
| Assembly position | Any |
| Mode of operation | single-acting |
| Design structure | Rack and pinion |
| Position detection | Optical |
| Closing direction | right-closing |
