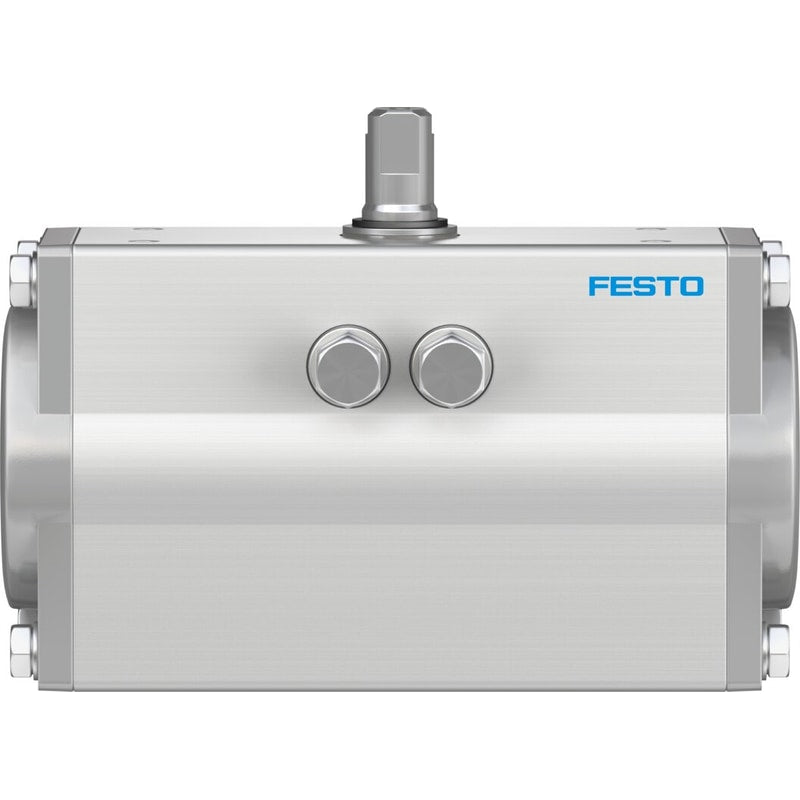

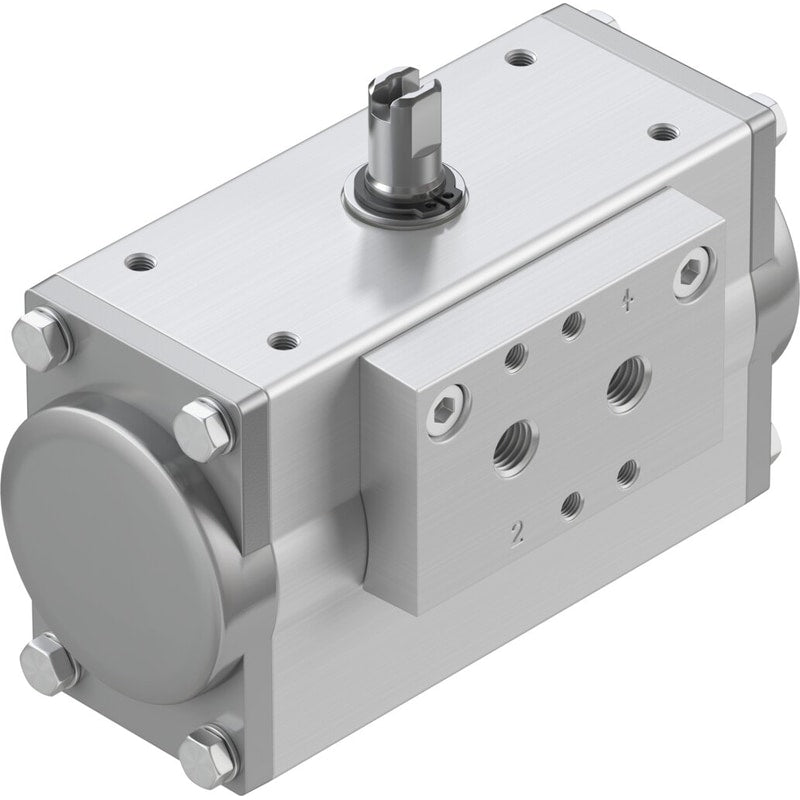

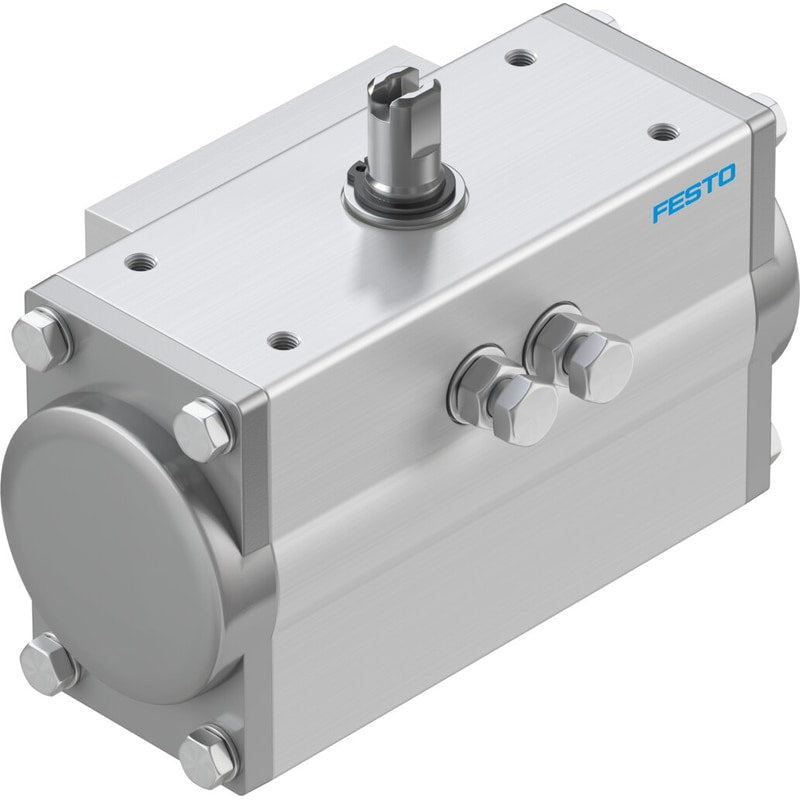

Quarter turn actuator
DFPD-N-10-RP-90-RD-F04-R3-EP
8066407
GTIN 4052568443627
Vendor Festo
- Pneumatic connection
- 1/8 NPT
- Torque at nominal operating pressure and 0° swivel angle
- 10.3 Nm
- Swivel angle
- 90 deg
- Flange hole pattern
- F04
- Shaft connection
- T9
Regular price
$156.66
Unit price
DFPD-N-10-RP-90-RD-F04-R3-EP is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DFPD-N-10-RP-90-RD-F04-R3-EP
Regular price
$156.66
Unit price
DFPD-N-10-RP-90-RD-F04-R3-EP is backordered and will ship as soon as it is back in stock.
| Size of valve actuator | 10 |
|---|---|
| Flange hole pattern | F04 |
| Swivel angle | 90deg |
| End-position adjusting range at 0° | -5deg |
| End-position adjusting range at nominal swivel angle | -5deg |
| Depth shaft connection | 10mm |
| Standard connection for valve | ISO 5211 |
| Mounting position | Any |
| Mode of operation | Double-acting |
| Structural design | Gear rack/pinion |
| Closing direction | Clockwise closing |
| Symbol | 00991265 |
| Valve connection conforms to standard | VDI/VDE 3845 (NAMUR) |
| Connection point for positioner and position sensor conforms to standard | VDI/VDE 3845 size AA 1 |
| Devices type according to VDMA 66413 | Safety device |
| Safety function | The fundamental safety function is the execution of a complete working stroke (opening and closing of the process valve) within a defined time. |
| Safety integrity level (SIL) | Up to SIL 2 low demand mode |
| Certified for safety function to ISO 13849 and IEC 61508 (SIL) | Product can be used in safety-related parts of control systems up to SIL 2, low demand |
| Operating pressure | 0.2MPa |
| Operating pressure | 2bar |
| Operating pressure | 29psi |
| Nominal operating pressure | 0.55MPa |
| Nominal operating pressure | 5.5bar |
| Nominal operating pressure | 79.75psi |
| Maritime classification | See certificate |
| CE marking (see declaration of conformity) | as per EU explosion protection directive (ATEX) |
| UKCA marking (see declaration of conformity) | acc. to UK EX instructions |
| Explosion prevention and protection | Zone 1 (ATEX) |
| Certificate issuing authority | DNVGL TAP00001CE |
| ATEX category gas | II 2G |
| ATEX category for dust | II 2D |
| Type of ignition protection for gas | Ex h IIC T4 Gb X |
| Type of (ignition) protection for dust | Ex h IIIC T105°C Db X |
| Explosive ambient temperature | -20°C <= Ta <= +80°C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -20°C |
| Ambient temperature | -20°C |
| Torque at nominal operating pressure and 0° swivel angle | 10.3Nm |
| Torque at nominal operating pressure and 90° swivel angle | 10.3Nm |
| Note about the torque | The actuator's operating torque must not be higher than the maximum permissible torque listed in ISO 5211, based on the size of the mounting flange and the coupling. |
| MTTFd | 1126 years |
| PFH | 1.01E-7 |
| PFD | 0.00142 |
| Air consumption at 6 bar per cycle 0°-nominal swivel angle-0° | 1l |
| Product weight | 965g |
| Shaft connection | T9 |
| Pneumatic connection | 1/8 NPT |
| Note on materials | RoHS-compliant |
| Material of sub-base | Wrought aluminum alloy, anodized |
| Cover material | Die-cast aluminum, coated |
| Seals material | NBR |
| Housing material | Wrought aluminum alloy, anodized |
| Material of piston | Die-cast aluminum |
| Material of bearing | POM |
| Cam material | Cast stainless steel |
| Material of screws | High-alloy stainless steel |
| Shaft material | High-alloy stainless steel |
