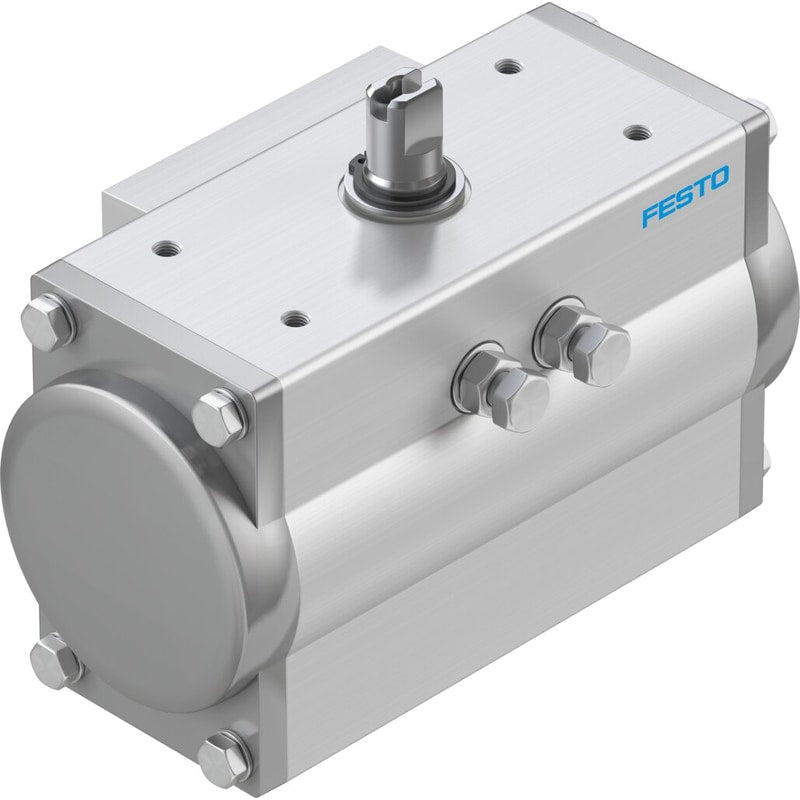

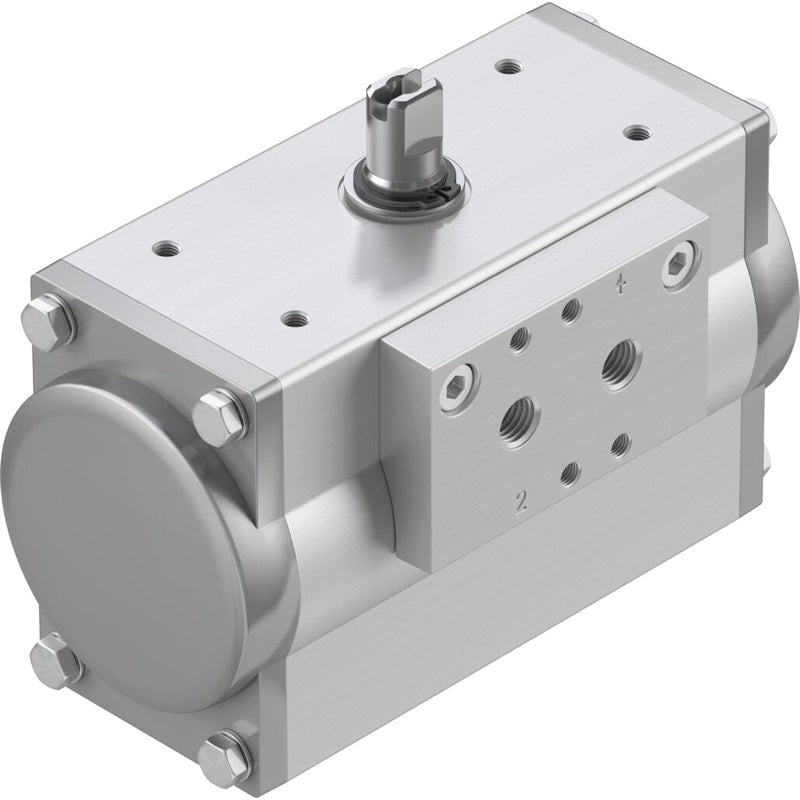

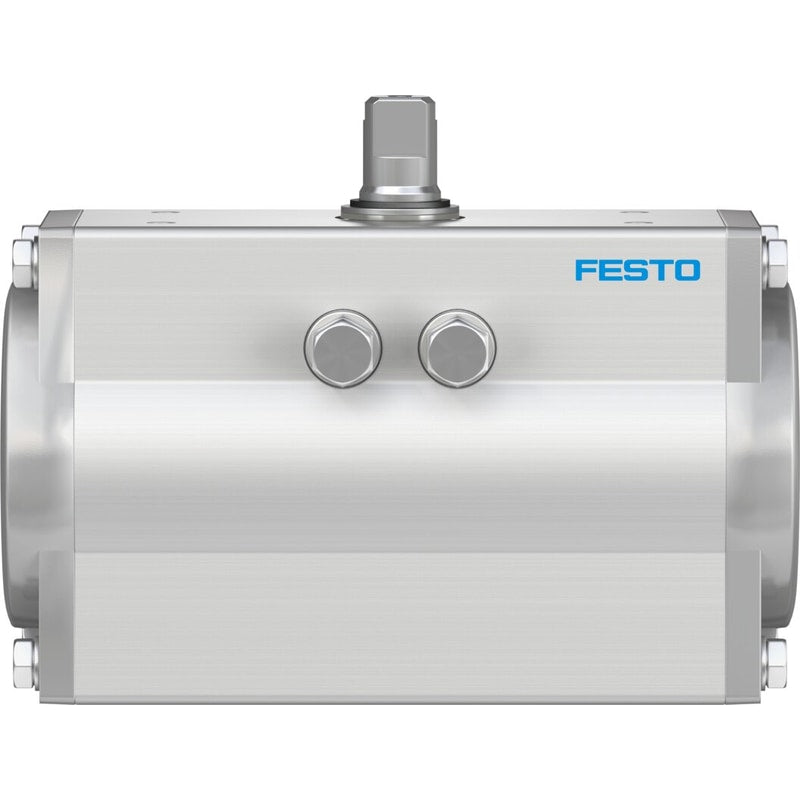

Quarter turn actuator
DFPD-N-20-RP-90-RD-F04
8066402
GTIN 4052568443573
Vendor Festo
- Pneumatic connection
- 1/8 NPT
- Torque at nominal operating pressure and 0° swivel angle
- 20.1 Nm
- Swivel angle
- 90 deg
- Flange hole pattern
- F04
- Shaft connection
- T11
Regular price
$157.85
Unit price
Quarter turn actuator DFPD-N-20-RP-90-RD-F04 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DFPD-N-20-RP-90-RD-F04
Regular price
$157.85
Unit price
Quarter turn actuator DFPD-N-20-RP-90-RD-F04 is backordered and will ship as soon as it is back in stock.
semi-rotary drive DFPD-N-20-RP-90-RD-F04 Part number: 8066402 double-acting, rack and pinion design, connection pattern to NAMUR VDI/VDE 3845 for mounting solenoid valves, position sensors and positioners, standard connection to fitting ISO 5211, NPT control air connection thread type.
| Size of actuator | 20 |
|---|---|
| Flange hole pattern | F04 |
| Swivel angle | 90 deg |
| End-position adjustment range at 0° | '-5 ... 5 deg |
| End-position adjustment range at 90° | '-5 ... 5 deg |
| Shaft connection depth | 13.2 mm |
| Fitting connection conforms to standard | ISO 5211 |
| Cushioning | No cushioning |
| Assembly position | Any |
| Mode of operation | double-acting |
| Design structure | Rack and pinion |
| Position detection | Optical |
| Closing direction | right-closing |
