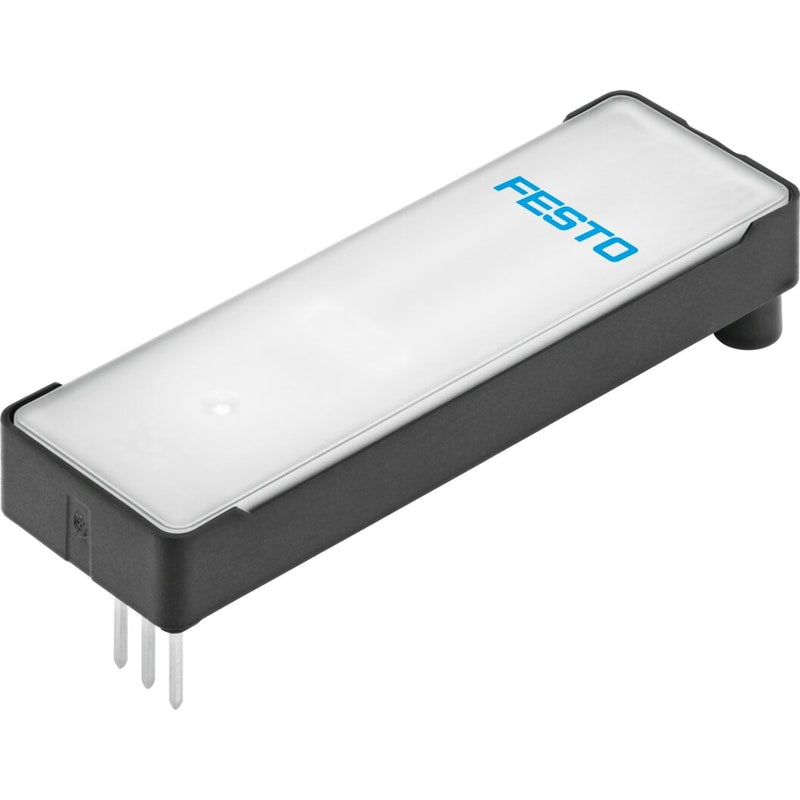

Piezo valve VEMP-BS-3-16-D5-F-28T1-P30
VEMP-BS-3-16-D5-F-28T1-P30 Piezo valve
8065739
Vendor Festo
Regular price
$57.02
Unit price
VEMP-BS-3-16-D5-F-28T1-P30 Piezo valve is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VEMP-BS-3-16-D5-F-28T1-P30 Piezo valve
Regular price
$57.02
Unit price
VEMP-BS-3-16-D5-F-28T1-P30 Piezo valve is backordered and will ship as soon as it is back in stock.
| Type code | VEMP |
|---|---|
| Pack size | 30 |
| Storage temperature | -20 °C ... 70 °C |
| Valve function | 3/3, closed, monostable |
| Nominal width | 1.6 mm |
| Operating pressure | 0 bar ... 0.7 bar |
| Nominal operating pressure | 0.5 bar |
| Standard nominal flow rate | 18 l/min |
| Standard nominal flow rate 2-3 | 19 l/min |
| Flow direction | Non-reversible |
| Width dimension | 17.2 mm |
| Dimensions W x L x H | 17.2 mm x 52.1 mm x 7.2 mm |
| Medium | OxygenNitrogenAirInert gas |
| Special features | Oxygen-compatible as per DIN EN 1797 |
| Note on materials | RoHS-compliant |
| Actuation type | Electrical |
| Mounting position | Any |
| Symbol | 992802 |
| Max. switching frequency | 5 Hz |
| DC operating voltage range | 0 V ... 310 V |
| Nominal operating voltage DC | 310 V |
| Max. current consumption | 5 mA |
| Max. electrical power consumption | 0 W |
| Information on operating and pilot media | Operation with oil lubrication not possible |
| CE marking (see declaration of conformity) | As per EU low voltage directive |
| Temperature of medium | -20 °C ... 60 °C |
| Note on degree of protection | Depending on manifold block |
| Ambient temperature | -20 °C ... 70 °C |
| Product weight | 8 g |
| Type of mounting | On sub-baseOn terminal strip |
| Pneumatic connection 1 | Flange |
| Pneumatic connection 2 | Flange |
| Pneumatic connection 3 | Flange |
| Housing material | PA-reinforced |
| Cover material | PA-reinforced |
| Seals material | EPDM |
